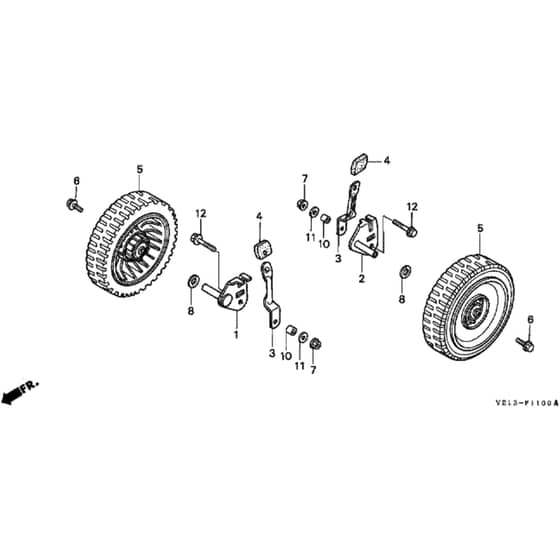

Honda HRB215K1 - PDC - MZBA 6100001-6199999 Front Wheel Diagram

Name: Honda HRB215K1 - PDC - MZBA 6100001-6199999 Front Wheel Diagram
SKU: hrb215k1_pdc_mzba_6100001_6199999_front_wheel-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB215K1 - PDC - MZBA 6100001-6199999 Front Wheel Diagram

Description

Honda HRB215K1 - PDC Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42911-VE1-020 Available to backorder	Adjuster Arm Front R H	£23.62 £19.68
2	HP42921-VE1-020 Available to backorder	Adjuster Arm	£23.62 £19.68
3	HP42951-VE2-000 Available to backorder	Front Adjuster Plate	£16.55 £13.79
4	HP42952-VA4-000 In stock	Adjuster Grip	£1.62 £1.35
5	HP44710-VE0-000 Available to backorder	Front Wheel	£40.16 £33.47
6	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
7	HP90115-659-003 In stock	Nut	£1.10 £0.92
8	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
10	HP91557-VE0-000 Available to backorder	Arm Collar	£13.68 £11.40
11	HP94103-08000 In stock	Plain Washer 8Mm	£0.47 £0.39
12	HP95801-0805000 Available to backorder	Flange Bolt 8 X 50	£2.60 £2.17
