Honda HRB215 - PXC - MZBA 6000001-6099999 Cylinder Head Diagram

Name: Honda HRB215 - PXC - MZBA 6000001-6099999 Cylinder Head Diagram
SKU: hrb215_pxc_mzba_6000001_6099999_cylinder_head-group
Price: 1.98 GBP
Availability: InStock

Part No. hrb215_pxc_mzba_6000001_6099999_cylinder_head-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

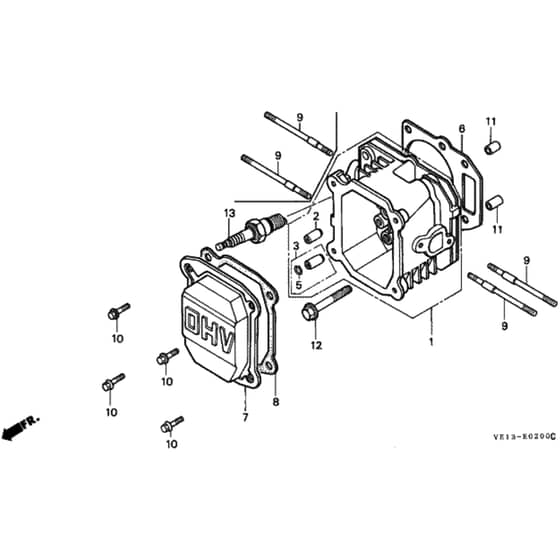

Honda HRB215 - PXC - MZBA 6000001-6099999 Cylinder Head Diagram

Description

Honda HRB215 - PXC Rotary Mower Parts Diagram

	Part No.	Details
1	HP12200-ZG9-P41 Available to backorder	Cylinder Head Assy	£160.44 £133.70
1	HP12200-ZG9-T00 Available to backorder	Cylinder Head	£217.56 £181.30
2	HP12204-ZE1-306 Available to backorder	Inlet Valve Guide	£11.28 £9.40
3	HP12205-ZE1-315 Available to backorder	Exhaust Valve Guide	£12.71 £10.59
5	HP12216-ZE5-300 Available to backorder	Valve Guide Clip	£3.73 £3.11
6	HP12251-ZG9-000 Available to backorder	Cylinder Head Gasket	£11.34 £9.45
7	HP12311-ZG9-000 Available to backorder	Head Cover	£76.20 £63.50
8	HP12391-ZE7-M10 In stock	Rocker Cover Gasket	Was £15.44 £12.87 Special Price £9.59 £7.99
9	HP90013-ZG9-T00 Available to backorder	Stud 6 X 83	£5.06 £4.22
10	HP90016-ZE6-T00 Available to backorder	Flange Bolt 6 X 13	£3.52 £2.93
11	HP94301-10160 Available to backorder	Dowel Pin 10 X 16	£3.96 £3.30
12	HP95701-0805000 Available to backorder	Bolt	£2.38 £1.98
13	7230 In stock	Spark Plug	£3.76 £3.13
13	2136 In stock	Plug Spark (Bpr6Es) (Ngk)	£2.81 £2.34
13	2135 In stock	Spark Plug	£2.78 £2.32
