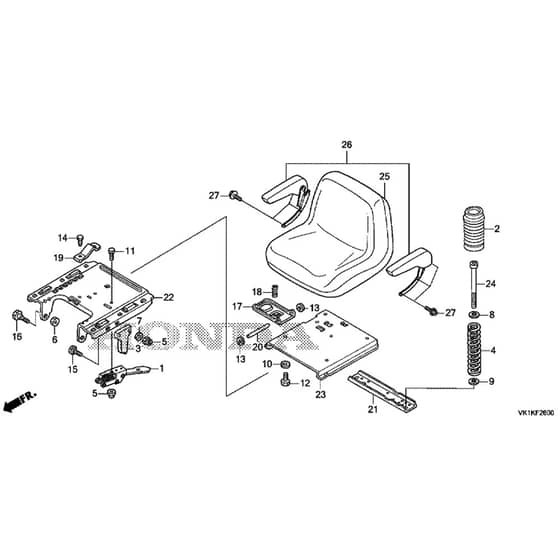

Honda HF2625-HTEH Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP54100-VK1-E81 Available to backorder	Spring Lever Assy	£84.22 £70.18
2	HP77220-VK1-E81 Available to backorder	Boot	£12.78 £10.65
3	HP77225-VK1-E81 Available to backorder	Seat Switch	£8.82 £7.35
4	HP77228-VK1-E81 Available to backorder	Seat Spring	£25.00 £20.83
5	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.74 £0.62
6	HP80010-Y09-003 Available to backorder	Nut	£3.53 £2.94
7	HP80026-Y09-003 Available to backorder	Washer	£4.42 £3.68
9	HP80036-Y09-003 Available to backorder	Washer	£5.64 £4.70
10	HP80045-Y09-003 Available to backorder	Washer	£1.55 £1.29
11	HP80090-Y09-003 Available to backorder	Screw	£2.82 £2.35
12	HP80101-Y09-003 Available to backorder	Screw	£5.28 £4.40
13	HP80120-VK1-003 Available to backorder	Special Washer 5Mm	£1.48 £1.23
14	HP80130-VK1-003 Available to backorder	Self Tapping Screw 4.8 X 9.5	£0.64 £0.53
15	HP80150-VK1-003 Available to backorder	Screw	£4.02 £3.35
16	HP80208-VK1-003 Available to backorder	Special Screw 8 X 20	£4.87 £4.06
17	HP80289-VK1-003 Available to backorder	Stop Lever	£5.88 £4.90
18	HP80315-VK1-003 Available to backorder	Spring	£0.71 £0.59
19	HP80316-VK1-003 Available to backorder	Stopper Spring	£2.44 £2.03
20	HP80334-VK1-003 Available to backorder	Dowel Pin 5 X 70	£1.09 £0.91
21	HP80400-VK1-013 Available to backorder	Stiffener Frame	£5.62 £4.68
22	HP80438-VK1-013 Available to backorder	Seat Support	£42.72 £35.60
23	HP80448-VK1-003 Available to backorder	Seat Support	£46.66 £38.88
24	HP80628-VK1-003 Available to backorder	Screw	£2.36 £1.97
25	HP81100-VK1-E71 Available to backorder	Seat Assy	£861.56 £717.97
26	HP82154-VK1-E81 Available to backorder	Support Brace	£246.84 £205.70
27	HP80745-VK1-003 Available to backorder	Screw	£3.08 £2.57
