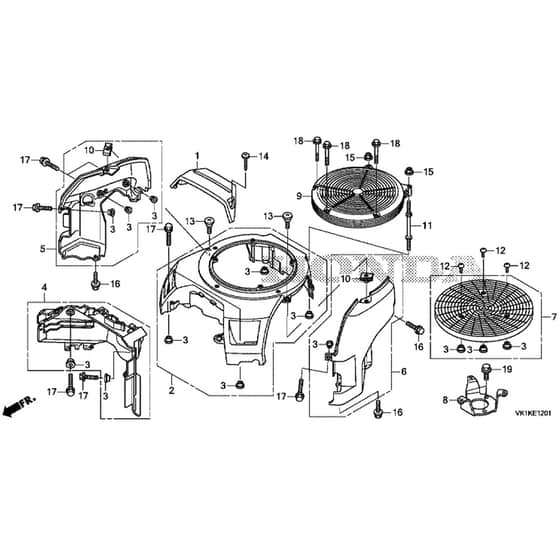

Honda HF2625-HTEH - Fan Cover Diagram

Description

Honda HF2625-HTEH Ride On Mower Parts Diagram

	Part No.	Details
1	HP16715-Z6L-000 Available to backorder		£23.53 £19.61
2	HP19610-Z6M-801ZA Available to backorder	Fan Cover Assy	£135.84 £113.20
3	HP19619-Z0A-300 Available to backorder	Collar Fan Cover	£3.67 £3.06
4	HP19631-Z6M-000 Available to backorder	Upper Shroud	£63.12 £52.60
5	HP19641-Z6L-000 Available to backorder		£83.47 £69.56
6	HP19642-Z6L-000 Available to backorder	Lower Shroud	£97.70 £81.42
7	HP28452-Z6L-800 Available to backorder		£37.96 £31.63
8	HP28454-Z6L-800 Available to backorder		£44.88 £37.40
9	HP28456-Z6L-800 Available to backorder	Screen Grid Cover	£132.36 £110.30
10	HP84601-HA7-670 Available to backorder	Screw	£4.32 £3.60
11	HP90042-Z6L-800 Available to backorder	Stud Bolt	£31.67 £26.39
12	HP90131-S0X-A00 Available to backorder		£3.48 £2.90

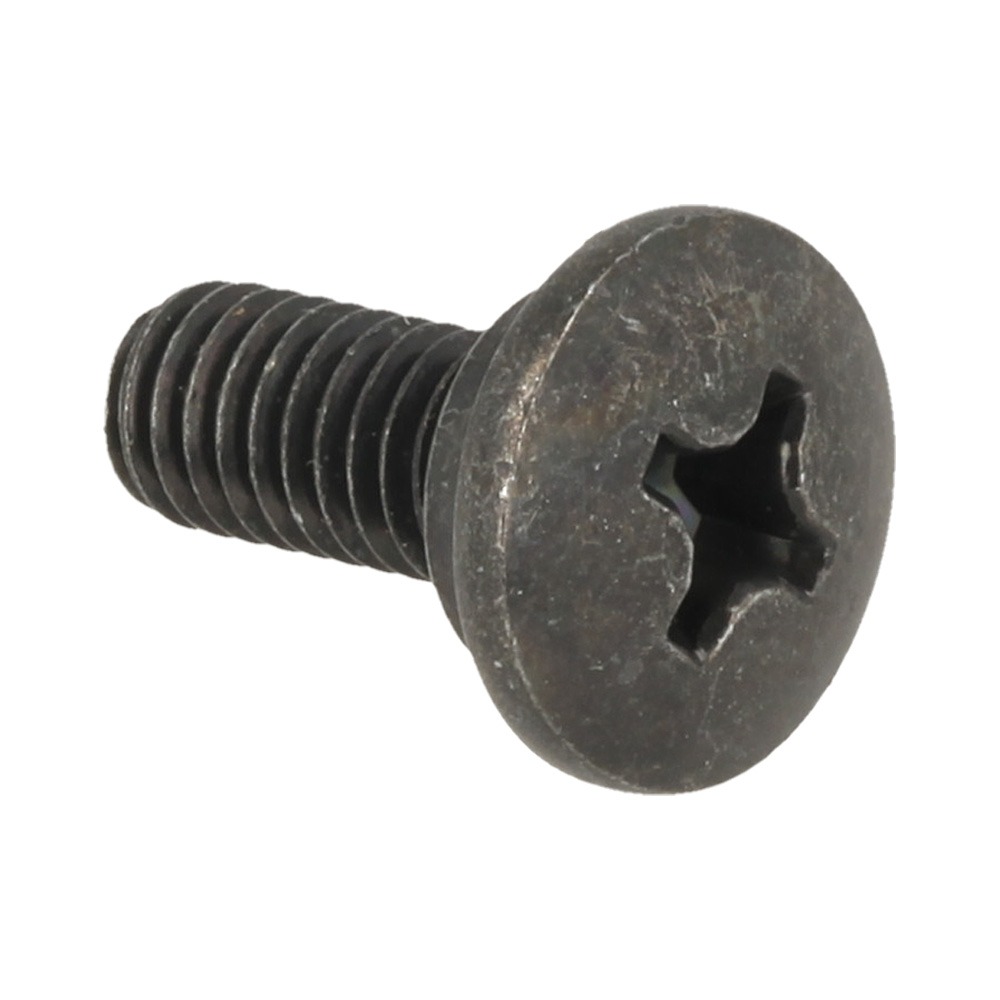

13	HP90380-GM9-740 Out of stock	Screw	£3.90 £3.25
14	HP93913-25580 Available to backorder		£1.50 £1.25
15	HP94050-06000 In stock	Flange Nut 6Mm	£3.22 £2.68
16	HP957001-061600 Available to backorder	Bolt	£1.08 £0.90
17	HP95701-06020-00 Available to backorder	Bolt	£1.31 £1.09
18	HP95701-06040-00 Available to backorder	Bolt	£1.54 £1.28
19	HP95701-0801800 Available to backorder	Flange Bolt 8 X 18	£1.54 £1.28
