Honda HF2622K1-HTE - Transmission Diagram

Description

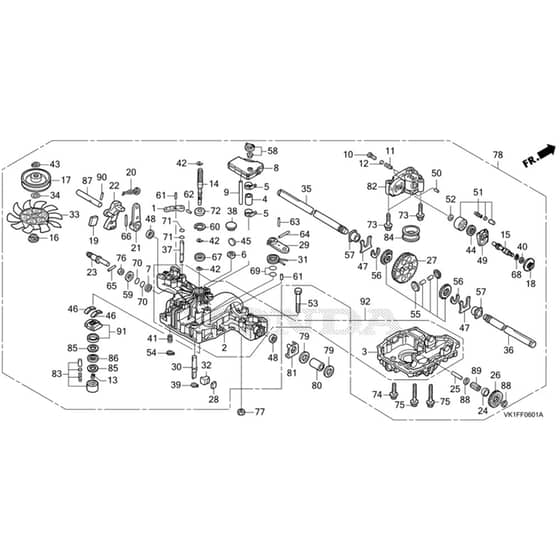

Honda HF2622K1-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP80001-VK1-003 Available to backorder	Lever	£3.97 £3.31
4	HP80004-VK1-003 Available to backorder	Tube	£5.80 £4.83
5	HP80005-VK1-003 Available to backorder	Miniature Clamp	£13.24 £11.03
7	HP80007-VK1-505 Available to backorder	Seal Repair Kit	£8.52 £7.10
8	HP80008-VK1-003 Available to backorder	Tank	£40.08 £33.40
9	HP80009-VK1-003 Available to backorder	Tank Support	£5.69 £4.74
10	HP80010-VK1-003 Available to backorder	Valve	£14.06 £11.72
11	HP80011-VK1-003 Available to backorder	Spring	£1.79 £1.49
12	HP80012-VK1-003 Available to backorder	Filter	£7.10 £5.92
13	HP80013-VK1-003 Available to backorder	Pump Spring	£3.56 £2.97
14	HP80014-VK1-003 Available to backorder	Pump Shaft	£84.60 £70.50
15	HP80015-VK1-003 Available to backorder	Motor Shaft	£71.52 £59.60
16	HP80016-VK1-003 Available to backorder	Special Collar	£5.41 £4.51
17	HP80017-VK1-003 Available to backorder	Pulley	£29.68 £24.73
19	HP80019-VK1-003 Available to backorder	Plate	£13.04 £10.87
20	HP80020-VK1-003 Available to backorder	Torsion Spring	£24.55 £20.46
21	HP80021-VK1-003 Available to backorder	Control Tube	£24.84 £20.70
22	HP80022-VK1-003 Available to backorder	Control Arm	£79.08 £65.90
23	HP80024-VK1-003 Available to backorder	Cam	£47.35 £39.46
24	HP80025-VK1-003 Available to backorder	Collar	£5.41 £4.51
25	HP80026-VK1-003 Available to backorder	Gear Shaft	£23.47 £19.56
26	HP80028-VK1-003 Available to backorder	Reduction Gear	£39.11 £32.59
27	HP80029-VK1-003 Available to backorder	Final Gear	£136.20 £113.50
28	HP80031-VK1-003 Available to backorder	Brake Shoe	£6.90 £5.75
29	HP80032-VK1-003 Available to backorder	Brake Arm	£20.99 £17.49
30	HP80033-VK1-003 Available to backorder	Brake Arm Shaft	£72.24 £60.20
31	HP80034-VK1-003 Available to backorder	Brake Return Spring	£24.55 £20.46
32	HP80035-VK1-003 Available to backorder	Brake Pad Holder	£19.45 £16.21
33	HP80036-VK1-003 Available to backorder	Cooling Fan	£34.76 £28.97
34	HP80037-VK1-003 Available to backorder	Lock Washer	£9.11 £7.59
35	HP80038-VK1-003 Available to backorder	Axle Shaft	£85.56 £71.30
36	HP80039-VK1-003 Available to backorder	Axle Shaft	£103.08 £85.90
37	HP80040-VK1-003 Available to backorder	Shaft	£46.22 £38.52
38	HP80042-VK1-013 Available to backorder	Hole Plug	£10.55 £8.79
39	HP80043-VK1-003 Available to backorder	Ring 12.7Mm	£2.63 £2.19
40	HP80044-VK1-003 Available to backorder	Ring 15Mm	£2.09 £1.74
41	HP80045-VK1-003 Available to backorder	Spring	£1.79 £1.49
42	HP80046-VK1-013 Available to backorder	Ring 15Mm	£2.09 £1.74
43	HP80047-VK1-003 Available to backorder	Snap Ring	£2.63 £2.19
44	HP80048-VK1-013 Available to backorder	Bearing	£50.47 £42.06
45	HP80049-VK1-003 Available to backorder	Magnet	£8.03 £6.69
46	HP80051-VK1-013 Available to backorder	Thrust Metal	£9.96 £8.30
47	HP80056-VK1-003 Available to backorder	Thrust Washer	£11.26 £9.38
48	HP80057-VK1-003 Available to backorder	Oil Seal 19 X 32 X 8	£12.79 £10.66
49	HP80058-VK1-003 Available to backorder	Motor Housing	£20.99 £17.49
50	HP80059-VK1-003 Available to backorder	Pin 3 X 9.8Mm	£1.00 £0.83
51	HP80636-VK1-515 Available to backorder	Repair Kit K46	£532.44 £443.70
52	HP80062-VK1-003 Available to backorder	Plain Washer 12 X 24Mm	£0.88 £0.73
53	HP80062-Y09-003 Available to backorder	Screw	£5.05 £4.21
54	HP80063-VK1-013 Available to backorder	Ring 10Mm	£2.09 £1.74
55	HP80064-VK1-003 Available to backorder	Differential Gear	£96.24 £80.20
56	HP80065-VK1-003 Available to backorder	Ring 17Mm	£4.70 £3.92
57	HP80066-VK1-003 Available to backorder	Bush	£2.70 £2.25
58	HP80067-VK1-003 Available to backorder	Valve	£17.38 £14.48
59	HP80068-VK1-003 Available to backorder	Washer	£0.88 £0.73
60	HP80069-VK1-003 Available to backorder	Ring 35Mm	£3.14 £2.62
61	HP80070-VK1-003 Available to backorder	Dowel Pin 3 X 16	£1.06 £0.88
62	HP80071-VK1-003 Available to backorder	Dowel Pin 3 X 20	£1.06 £0.88
63	HP80073-VK1-003 Available to backorder	Dowel Pin 4 X 16	£1.06 £0.88
64	HP80074-VK1-003 Available to backorder	Dowel Pin 5 X 32	£1.80 £1.50
65	HP80075-VK1-003 Available to backorder	Dowel Pin 6 X 36	£1.79 £1.49
66	HP80076-VK1-003 Available to backorder	Dowel Pin 6 X 40	£2.48 £2.07
67	HP80077-VK1-003 Available to backorder	Bearing	£9.43 £7.86
68	HP80078-VK1-013 Available to backorder	Bearing	£26.36 £21.97
69	HP80079-VK1-003 Available to backorder	Packing	£2.23 £1.86
70	HP80080-VK1-003 Available to backorder	O Ring	£0.53 £0.44
71	HP80081-VK1-003 Available to backorder	Packing	£0.66 £0.55
72	HP80082-VK1-003 Available to backorder	Seal	£8.38 £6.98
73	HP80083-VK1-003 Available to backorder	Flange Bolt 10 X 75	£4.31 £3.59
74	HP80084-VK1-003 Available to backorder	Self Tapping Screw 8 X 30	£2.58 £2.15
75	HP80085-VK1-003 Available to backorder	Self Tapping Screw 8 X 55	£2.58 £2.15
76	HP80086-VK1-003 Available to backorder	Lock Nut	£2.54 £2.12
77	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
78	HP80193-VK1-003 Available to backorder	Transmission Assy	£1,236.00 £1,030.00
79	HP80032-Y09-003 Available to backorder	Washer	£4.36 £3.63
80	HP80272-VK1-003 Available to backorder	Spacer	£13.78 £11.48
81	HP80403-VK1-013 Available to backorder	Special Washer 20Mm	£5.03 £4.19
84	HP80637-VK1-003 Available to backorder	Filter	£47.46 £39.55
85	HP80638-VK1-003 Available to backorder	Plate	£28.09 £23.41
86	HP80639-VK1-003 Available to backorder	Bearing	£72.60 £60.50
87	HP80640-VK1-003 Available to backorder	Control Shaft	£47.46 £39.55
88	HP80641-VK1-003 Available to backorder	Washer	£3.12 £2.60
89	HP80642-VK1-003 Available to backorder	Final Pinion	£43.51 £36.26
90	HP80643-VK1-003 Available to backorder	Spring Pin	£4.86 £4.05
91	HP80733-VK1-003 Available to backorder	Plate	£35.74 £29.78
92	HP80744-VK1-003 Available to backorder	Transmission Set	£550.80 £459.00
