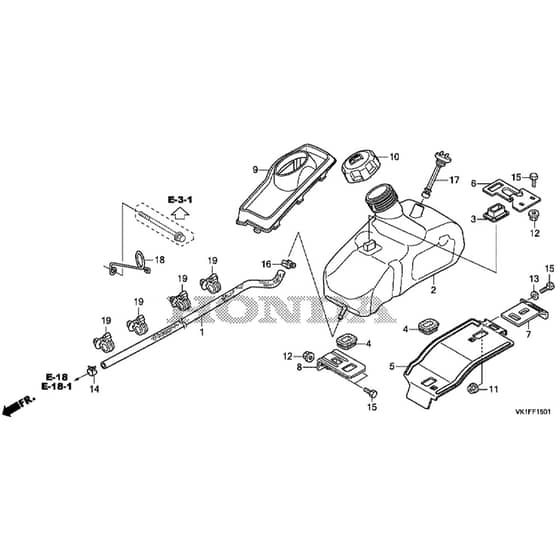

Honda HF2622K1-HTE - Fuel Tank Diagram

Description

Honda HF2622K1-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP16851-VK1-E11 Available to backorder	Fuel Tube	£186.00 £155.00
2	HP17511-VK1-G11 Available to backorder	Fuel Tank	£199.98 £166.65
3	HP17532-VK1-F01 Available to backorder	Tank Mounting Rubber	£12.80 £10.67
4	HP17533-VK1-F01 Available to backorder	Tank Mounting Rubber	£12.80 £10.67
5	HP17545-VK1-G11 Available to backorder	Tank Bracket	£71.02 £59.18
6	HP17554-VK1-G11 Available to backorder	Tank Stay	£22.96 £19.13
7	HP17555-VK1-G11 Available to backorder	Tank Bracket	£25.16 £20.97
8	HP17556-VK1-G11 Available to backorder	Tank Bracket	£14.76 £12.30
9	HP17557-VK1-G11 Available to backorder	Tank Guard	£24.68 £20.57
10	HP17620-VK1-G11 Available to backorder	Fuel Cap	£34.66 £28.88
11	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
12	HP80014-Y09-003 Available to backorder	Nut M6	£2.86 £2.38
13	HP80027-Y09-003 Available to backorder	Washer	£4.42 £3.68
14	HP80120-Y09-003 Available to backorder	Clamp	£4.66 £3.88
15	HP80142-VK1-003 Available to backorder	Bolt 6 X 18	£1.18 £0.98
16	HP80185-VK1-003 Available to backorder	Tube Clip	£4.66 £3.88
17	HP80288-VK1-003 Available to backorder	Fuel Meter Assy	£100.78 £83.98
18	HP80468-VK1-003 Available to backorder	Spring	£5.18 £4.32
19	HP80613-VK1-003 Available to backorder	Fuel Tube Clip	£3.28 £2.73
