Honda HF2622K1-HTE - Carburettor Diagram

Name: Honda HF2622K1-HTE - Carburettor Diagram
SKU: hf2622k1_hte_carburettor-group
Price: 0.99 GBP
Availability: InStock

Part No. hf2622k1_hte_carburettor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

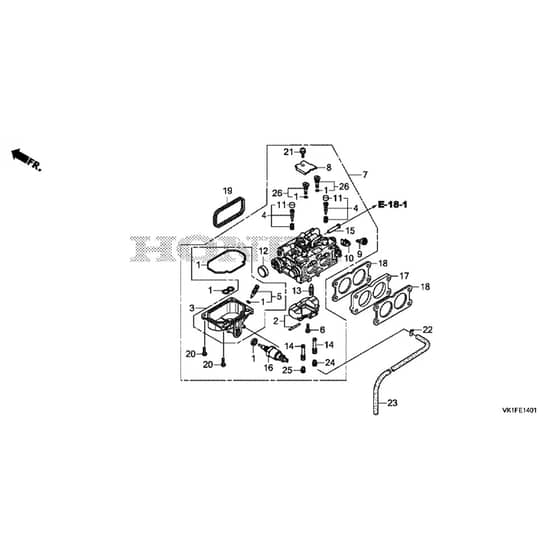

Honda HF2622K1-HTE - Carburettor Diagram

Description

Honda HF2622K1-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP16010-Z6L-003 Available to backorder	Gasket Set	£35.64 £29.70
2	HP16013-Z6L-003 Available to backorder	Float Set	£34.43 £28.69
3	HP16015-Z6L-003 Available to backorder	Chamber Set Float	£131.52 £109.60
4	HP16016-Z6L-801 Available to backorder	Screw Set	£16.72 £13.93
5	HP16024-124-760 Available to backorder	Screw Set Drain	£13.97 £11.64
6	HP16081-Z6L-003 Available to backorder	Screw Float	£7.63 £6.36
7	HP16100-Z8P-023 Available to backorder	Carburettor Assy	£219.72 £183.10
8	HP16113-Z6L-003 Available to backorder	Plate	£13.70 £11.42
9	HP16124-ZE0-005 Available to backorder	Throttle Stop Screw	£13.04 £10.87
10	HP16126-Z6L-003 Available to backorder	Throttle Link Arm	£16.40 £13.67
11	HP16134-Z6L-801 Available to backorder	Cap Adjusting Screw	£4.78 £3.98
12	HP16148-141-881 Available to backorder	Choke Dust Cap	£6.64 £5.53
13	HP16155-Z6L-003 Available to backorder	Valve	£37.51 £31.26
14	HP16166-Z8N-003 Available to backorder	Nozzle Main	£38.47 £32.06
15	HP16176-Z2G-D51 Available to backorder	Screen Fuel Strainer	£14.56 £12.13
16	HP16200-Z6L-003 Available to backorder	Solenoid	£75.12 £62.60
17	HP16211-Z6L-000 Available to backorder	Insulator Carburetor	£12.84 £10.70
18	HP16221-Z6L-000 Available to backorder	Gasket	£8.52 £7.10
19	HP17228-Z6L-000 Available to backorder	Packing Air Cleaner	£7.61 £6.34
20	HP93500-040-120H Available to backorder	Pan Screw	£1.49 £1.24
21	HP93892-05010-18 Available to backorder	Screw	£1.51 £1.26
22	HP95002-02080 In stock	Tube Clip	£1.19 £0.99
23	HP95005-45350-23 Available to backorder	Tube	£7.69 £6.41
24	HP99101-ZH8-1100 Available to backorder	Main Jet	£10.18 £8.48
24	HP99101-ZH8-0980 Available to backorder	Main Jet	£11.69 £9.74
25	HP99101-ZH8-1080 Available to backorder	Main Jet	£11.69 £9.74
25	HP99101-ZH8-1150 Available to backorder	Jet Main #115	£10.18 £8.48
25	HP99101-ZH8-1020 Available to backorder	Main Jet	£10.18 £8.48
26	HP99204-ZE204-00 Available to backorder	Jet Kit	£25.63 £21.36
