Honda HF2622K1-HTE - Belt Cover Diagram

Name: Honda HF2622K1-HTE - Belt Cover Diagram
SKU: hf2622k1_hte_belt_cover-group
Price: 2.3 GBP
Availability: InStock

Part No. hf2622k1_hte_belt_cover-group

Description

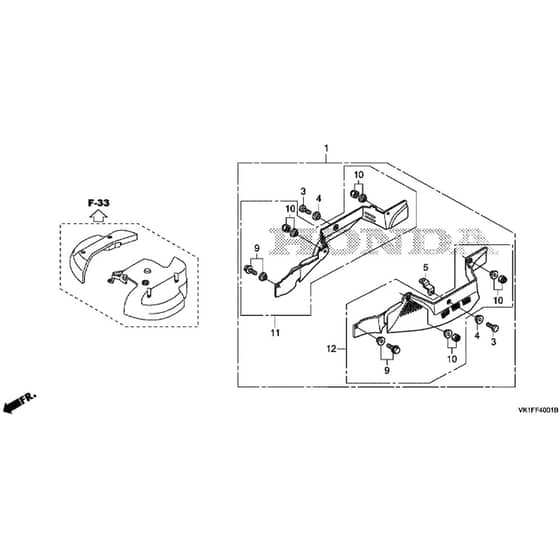

Honda HF2622K1-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP06807-VK1-E50HE Available to backorder	Belt Cover Kit	£241.20 £201.00
3	HP80093-Y09-003 Available to backorder	Screw	£2.76 £2.30
4	HP80670-VK1-003 Available to backorder	Belt Cover Collar	£3.24 £2.70
5	HP80706-VK1-003 Available to backorder	Bracket	£35.06 £29.22
9	HP90101-VK1-F21 Available to backorder	Retaining Screw Set	£17.34 £14.45
10	HP90301-VK1-F21 Available to backorder	Retaining Nut Set	£20.88 £17.40
11	HP76150-VK1-E32 Available to backorder	Belt Cover Assy Right	£114.60 £95.50
12	HP76160-VK1-E32 Available to backorder	Belt Cover Assy Left	£108.84 £90.70
