Honda HF2622-HTE - Oil Pan Diagram

Part No. hf2622_hte_oil_pan-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

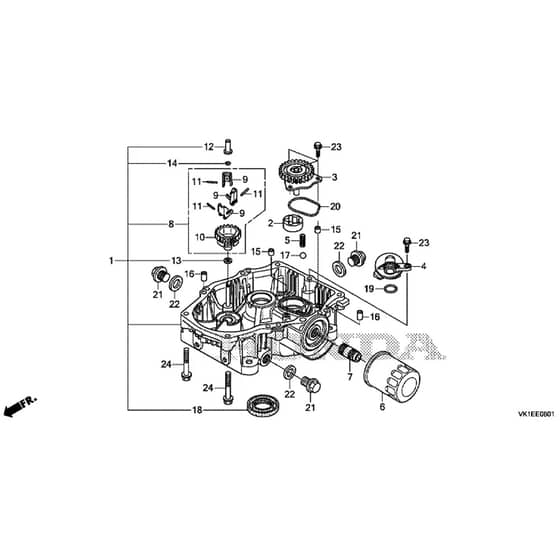

Honda HF2622-HTE - Oil Pan Diagram

Honda HF2622-HTE - Oil Pan Diagram

Description

Honda HF2622-HTE Ride On Mower Parts Diagram

Ref.		Img.	Part No.	Details
	1		HP11300-Z6M-010 Available to backorder	Crankcase Assy		£703.20 £586.00
	2		HP15133-Z6L-000 Available to backorder			£28.36 £23.63
	3		HP15140-Z6L-010 Available to backorder	Oil Pump Gear Assy		£141.48 £117.90
	4		HP15220-Z6M-000 Available to backorder	Oil Strainer		£44.04 £36.70
	5		HP15232-Z6L-000 Available to backorder			£2.83 £2.36
	6		HP15400-ZZ3-003 In stock	Oil Filter		£28.08 £23.40
	7		HP15423-Z6L-000 Available to backorder			£8.11 £6.76
	8		HP16510-Z6L-010 Available to backorder	Governor Assy		£29.58 £24.65
	9		HP16511-Z6L-310 Available to backorder	Governor Weight		£7.06 £5.88
	10		HP16512-Z6L-310 Available to backorder	Governor Weight Holder		£14.75 £12.29
	11		HP16513-Z6L-000 Available to backorder			£3.04 £2.53
	12		HP16531-Z6L-000 Available to backorder			£4.04 £3.37
	13		HP90403-Z6L-000 Available to backorder			£5.08 £4.23
	14		HP90602-ZE1-000 Available to backorder	Governor Holder Clip		£3.73 £3.11
	15		HP90707-Z6L-000 Available to backorder			£5.15 £4.29
	16		HP90708-Z6L-000 Available to backorder			£5.15 £4.29
	17		HP90902-Z6L-000 Available to backorder			£3.04 £2.53
	18		HP91202-Z6L-003 Available to backorder	Seal		£11.42 £9.52
	19		HP91301-Z6L-003 Available to backorder	O-Ring 14.8X2.4		£2.71 £2.26
	20		HP91302-Z6M-003 Available to backorder			£5.65 £4.71
	21		HP92800-20000 Available to backorder			£4.88 £4.07
	22		HP94109-20000 Available to backorder	Washer		£1.20 £1.00
	23		HP95701-06020-00 Available to backorder	Bolt		£1.32 £1.10
	24		HP95701-0804500 Available to backorder	Flange Bolt 8 X 45		£2.29 £1.91

Description

Honda HF2622-HTE Ride On Mower Parts Diagram
