Honda HF2622-HTE - Mission Pulley Diagram

Description

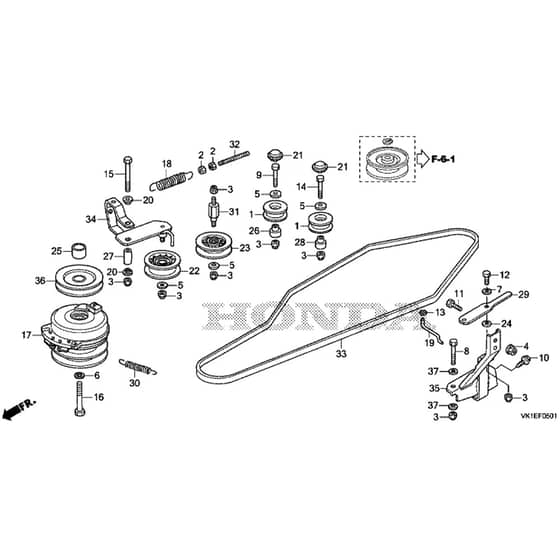

Honda HF2622-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP22520-VK1-003 Available to backorder	Tension Roller	£31.61 £26.34
2	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
3	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
4	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
5	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
6	HP80042-Y09-003 Available to backorder	Washer	£3.35 £2.79
7	HP80057-Y10-003 Available to backorder	Elastic Washer	£2.14 £1.78
8	HP80059-Y09-003 Available to backorder	Screw R H	£6.17 £5.14
9	HP80060-Y09-003 Available to backorder	Screw	£5.05 £4.21
10	HP80132-VK1-003 Available to backorder	Self Tapping Screw 6 X 16	£2.76 £2.30
11	HP80099-Y09-003 Available to backorder	Screw	£3.35 £2.79
12	HP80101-Y09-003 In stock	Screw	£5.56 £4.63
13	HP80119-VK1-003 Available to backorder	Special Washer	£0.48 £0.40
14	HP80123-VK1-003 Available to backorder	Bolt 8 X 40	£1.78 £1.48
15	HP80124-VK1-003 Available to backorder	Bolt 8 X 75	£1.22 £1.02
16	HP80140-VK1-003 Available to backorder	Bolt	£10.92 £9.10
17	HP22000-VK1-E11 Available to backorder	Clutch Brake Assy	£576.00 £480.00
18	HP80216-Y09-003 Available to backorder	Spring	£25.67 £21.39
19	HP80218-VK1-003 Available to backorder	Rod	£2.96 £2.47
20	HP80229-VK1-003 Available to backorder	Bush	£1.51 £1.26
21	HP80249-VK1-003 Available to backorder	Cover	£4.34 £3.62
22	HP80255-Y09-003 Available to backorder	Pulley	£59.59 £49.66
22	HP22466-VK1-F01 Available to backorder	Tension Roller	£134.88 £112.40
23	HP80256-Y09-003 Available to backorder	Pulley	£69.24 £57.70
23	HP76195-VK1-F01 Available to backorder	Idler Pulley	£64.56 £53.80
24	HP80267-Y09-003 Available to backorder	Washer	£4.32 £3.60
25	HP80271-VK1-013 Available to backorder	Spacer	£11.22 £9.35
26	HP80273-VK1-003 Available to backorder	Spacer	£17.46 £14.55
27	HP80275-VK1-003 Available to backorder	Spacer	£4.70 £3.92
29	HP80293-VK1-003 Available to backorder	Shift Lever	£3.62 £3.02
30	HP80317-VK1-003 In stock	Spring	£5.47 £4.56
31	HP80339-VK1-505 Available to backorder	Pin	£80.16 £66.80
31	HP76196-VK1-F01 Available to backorder	Idler Pulley Pin	£19.74 £16.45
32	HP80453-VK1-003 Available to backorder	Tie Rod	£3.40 £2.83
