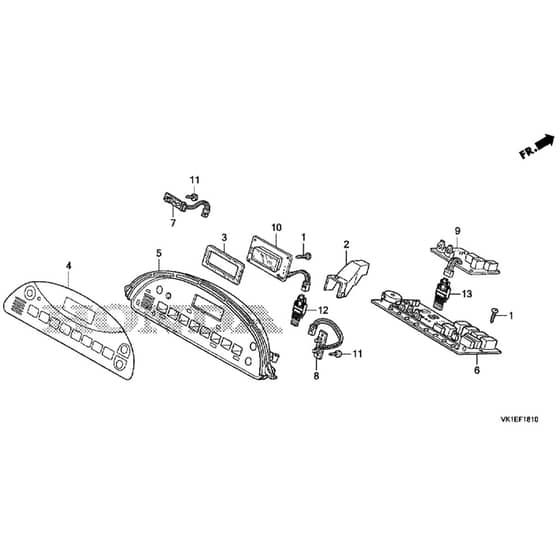

Honda HF2622-HTE - Meter Diagram

Description

Honda HF2622-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP80129-VK1-003 Available to backorder	Screw	£4.02 £3.35
2	HP80214-VK1-003 Available to backorder	Warning Buzzer	£7.58 £6.32
3	HP80286-VK1-003 Available to backorder	Seal	£1.20 £1.00
4	HP80311-VK1-003 Available to backorder	Decal	£46.42 £38.68
5	HP80331-VK1-003 Available to backorder	Control Panel	£10.28 £8.57
6	HP35000-VK1-E12 Available to backorder	Print Circuit Assy	£388.01 £323.34
7	HP80407-VK1-003 Available to backorder	Switch	£65.04 £54.20

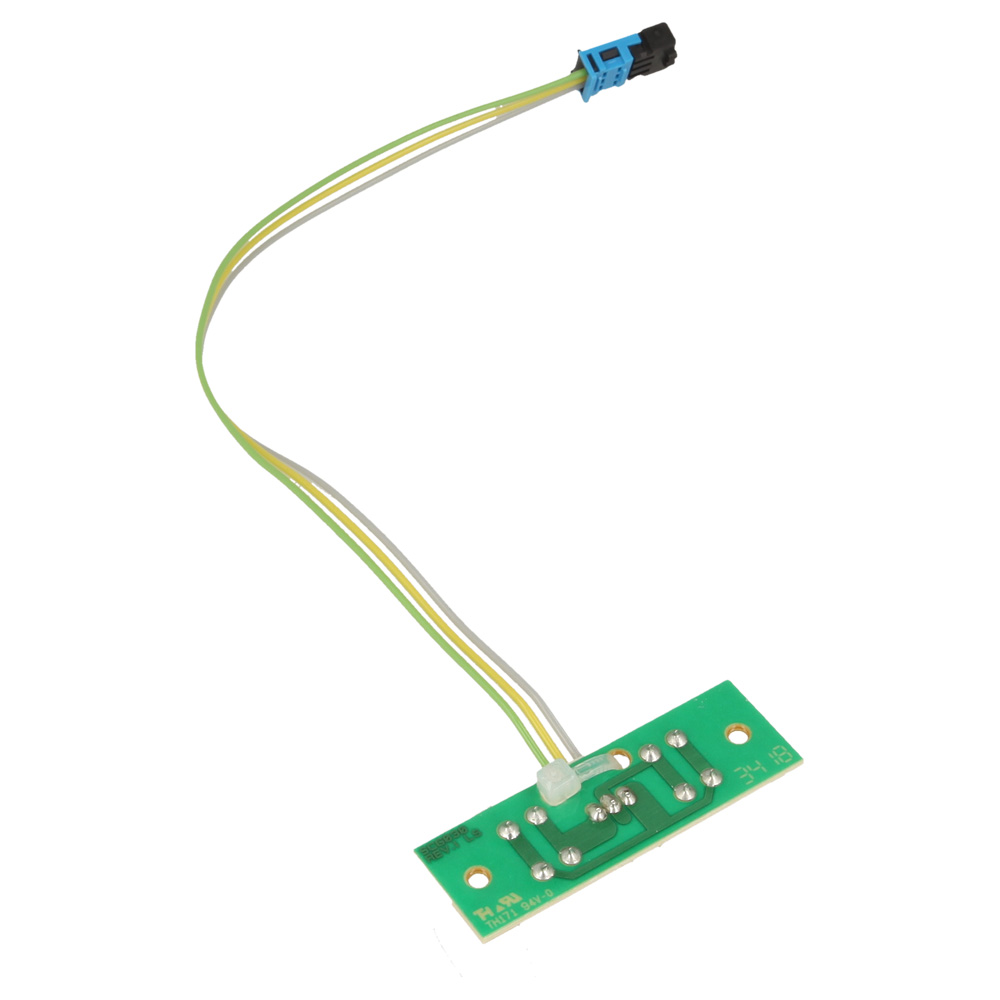

8	HP80408-VK1-003 In stock	Grass Bag Switch Assy	£66.36 £55.30

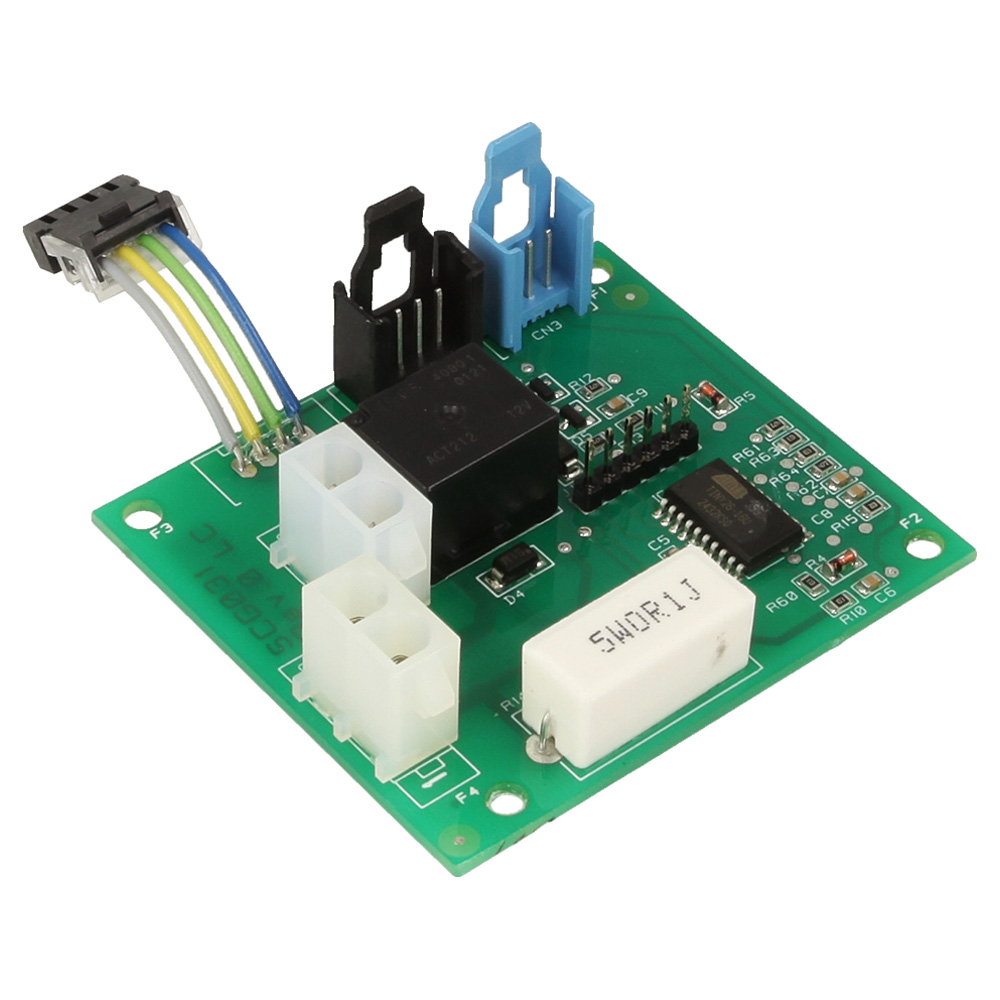

9	HP80409-VK1-003 Available to backorder	P C Board	£134.04 £111.70
10	HP80410-VK1-003 Available to backorder	Volt Meter Assy	£92.16 £76.80
11	HP93901-12220 Available to backorder	Screw	£2.40 £2.00
12	HP80711-VK1-003 Available to backorder	Filter	£65.70 £54.75
13	HP80712-VK1-003 Available to backorder	Filter	£3.04 £2.53
