Honda HF2622-HMF - Muffler Diagram

Description

Honda HF2622-HMF Ride On Mower Parts Diagram

	Part No.	Details
1	HP18310-VK1-E11 Available to backorder	Muffler	£292.76 £243.97
2	HP18321-VK1-E11 Available to backorder	Muffler Protector	£370.68 £308.90
3	HP18330-VK1-E11 Available to backorder	Exhaust Pipe	£115.70 £96.42

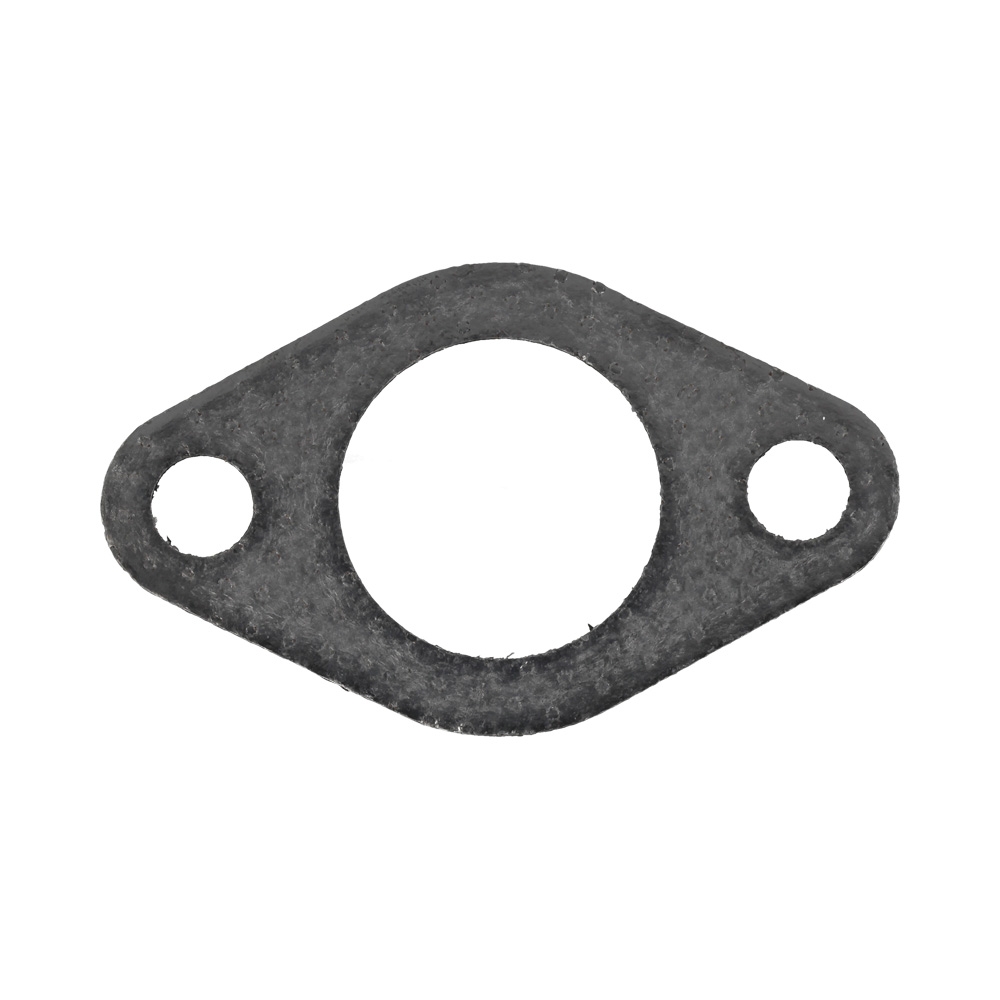

4	HP18333-ZE3-801 In stock	Exhaust Gasket	£6.25 £5.21
5	HP18340-VK1-E11 Available to backorder	Exhaust Pipe	£115.70 £96.42
6	HP80041-Y09-003 Available to backorder	Washer	£3.40 £2.83

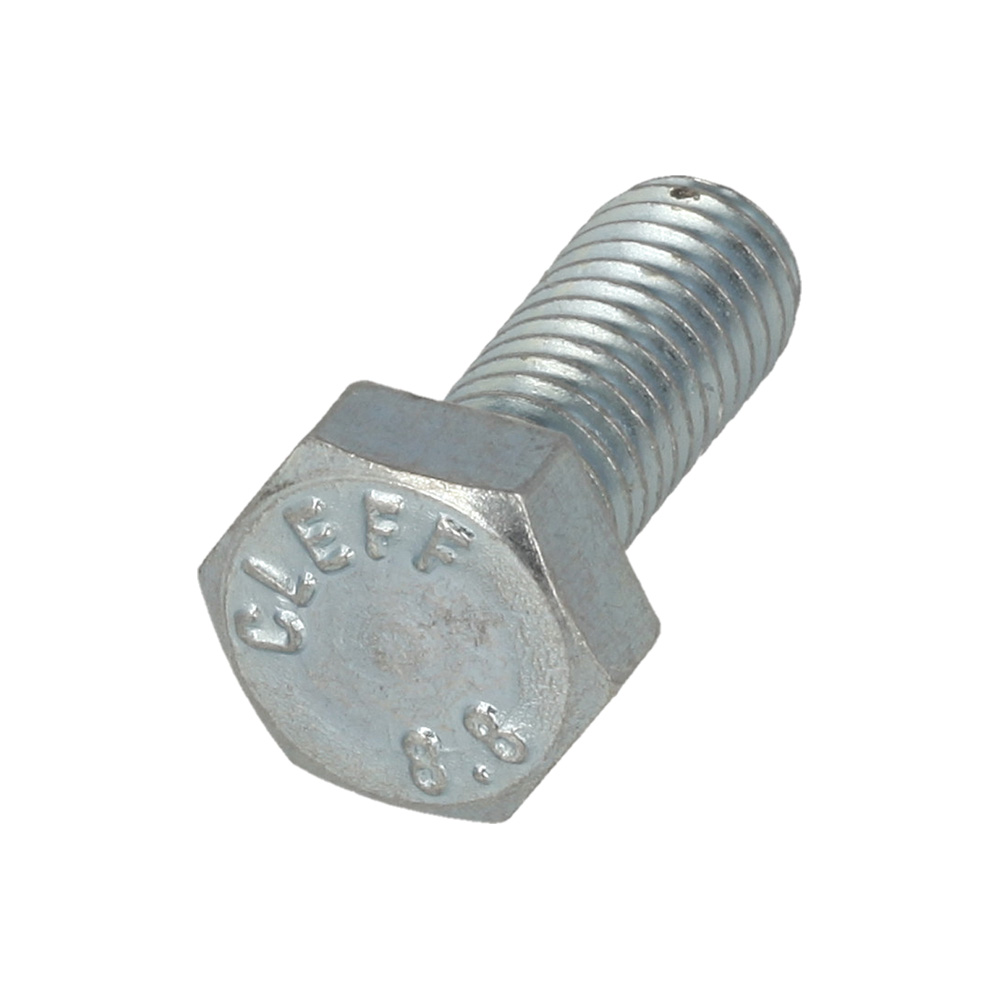

7	HP80101-Y09-003 Available to backorder	Screw	£5.28 £4.40
8	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
9	HP80195-VK1-003 Available to backorder	Oil Seal	£1.39 £1.16
10	HP80200-VK1-003 Available to backorder	Oil Drain Plug	£2.89 £2.41
11	HP80338-VK1-003 Available to backorder	Pin	£5.39 £4.49
12	HP80472-VK1-003 Available to backorder	Hose Oil	£36.59 £30.49

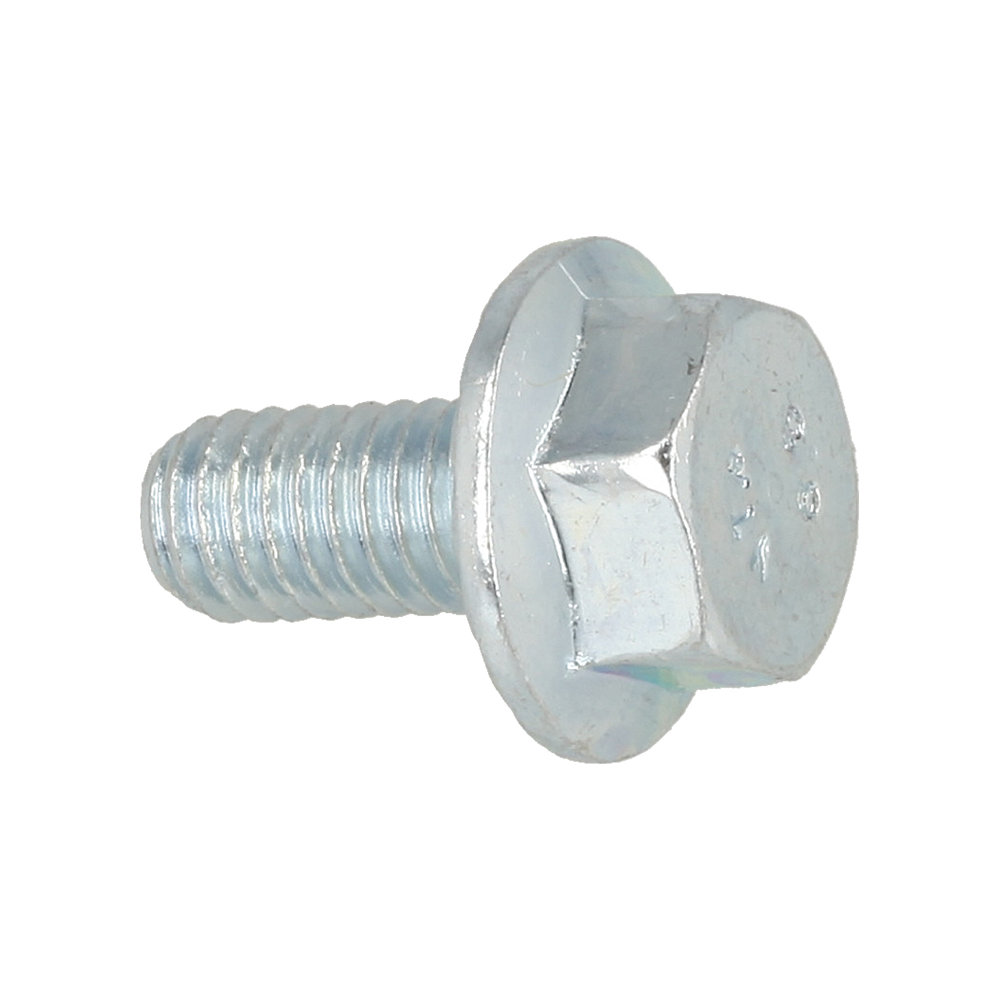

13	HP80682-VK1-003 Available to backorder	Screw	£3.08 £2.57
14	HP94050-08000 In stock	Flange Nut 8Mm	£3.08 £2.57
