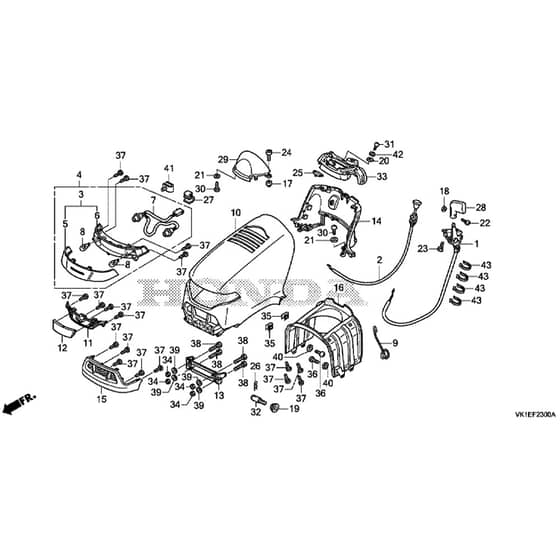

Honda HF2622-HMF - Hood Diagram

Name: Honda HF2622-HMF - Hood Diagram
SKU: hf2622_hmf_hood-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Honda HF2622-HMF Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP17910-VK1-E11 Available to backorder	Throttle Cable	£49.58 £41.32
2	HP17950-VK1-E11 Available to backorder	Choke Cable	£60.88 £50.73

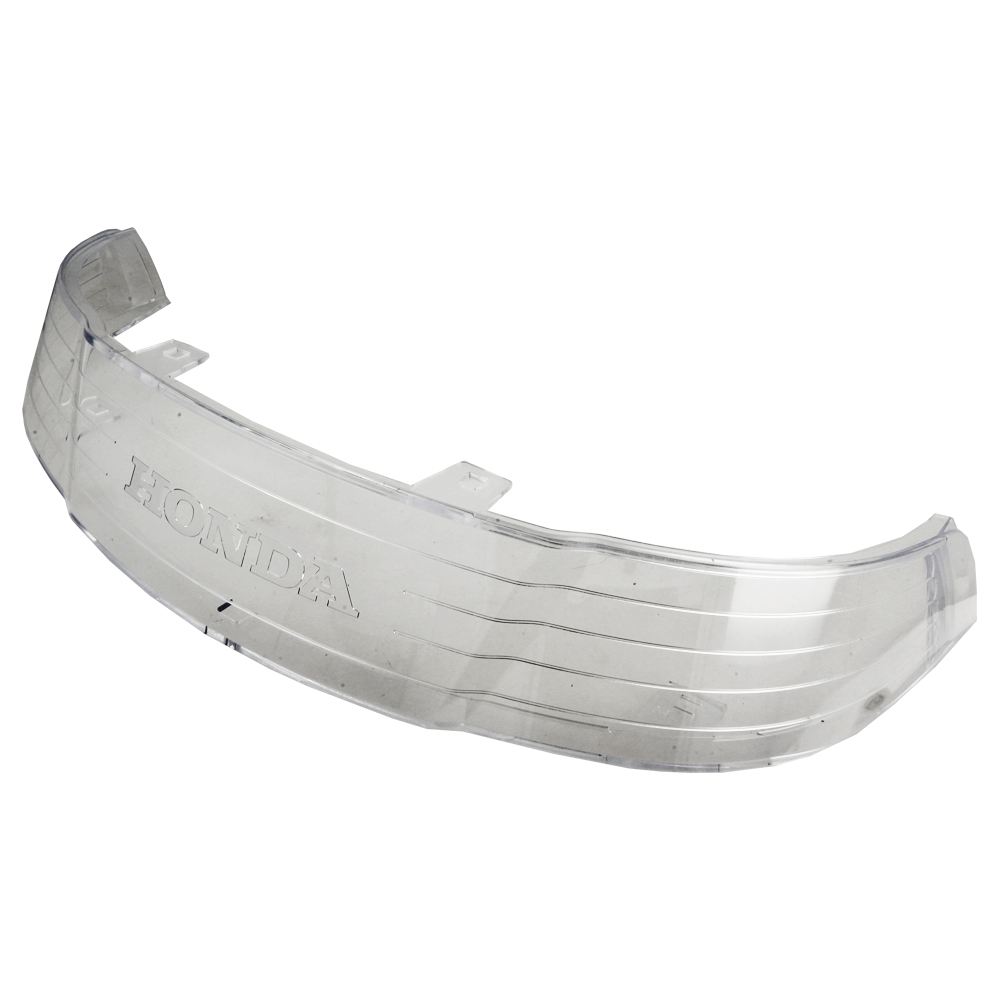

5	HP33102-VK1-F11 Available to backorder	Lens Headlight	£42.00 £35.00
6	HP33120-VK1-F11 Available to backorder	Headlight Unit	£258.06 £215.05
7	HP33130-VK1-F11 Available to backorder	Headlight Cord	£58.70 £48.92
8	HP34905-GM9-003 Available to backorder	Winker Bulb	£3.30 £2.75
10	HP60111-VK1-F01 Available to backorder	Hood	£742.10 £618.42
11	HP60121-VK1-F01 Available to backorder	Front Grille	£30.92 £25.77
12	HP60166-VK1-F11 Available to backorder	Headlight Cover	£112.04 £93.37
13	HP60175-VK1-F01 Available to backorder	Hood Bracket	£35.34 £29.45
14	HP61401-VK1-F01 Available to backorder	Column Cover	£85.08 £70.90
15	HP63511-VK1-F01 Available to backorder	Front Cover	£83.54 £69.62
16	HP63728-VK1-E11 Available to backorder	Air Guide	£78.14 £65.12
17	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.74 £0.62
18	HP80012-Y09-003 Available to backorder	Nut	£0.48 £0.40
19	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
20	HP80024-Y09-003 Available to backorder	Plate	£3.73 £3.11
21	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
22	HP80067-Y09-003 Available to backorder	Screw	£5.12 £4.27
23	HP80089-Y09-003 Available to backorder	Screw	£5.12 £4.27
24	HP80128-VK1-003 Available to backorder	Socket Head Bolt 5 X 20	£0.48 £0.40
25	HP80200-Y09-003 Available to backorder	Grommet	£0.94 £0.78
26	HP80211-VK1-003 Available to backorder	Lock Pin 12Mm	£0.80 £0.67
27	HP80300-Y09-003 Available to backorder	Clamp	£2.17 £1.81
28	HP80301-VK1-003 Available to backorder	Handle	£6.36 £5.30
29	HP80379-VK1-003 Available to backorder	Circuit Protector	£15.05 £12.54
30	HP80602-VK1-003 Available to backorder	Screw	£4.02 £3.35
31	HP90101-VP6-003 Available to backorder	Self Tapping Screw 4.8 X 19	£4.36 £3.63

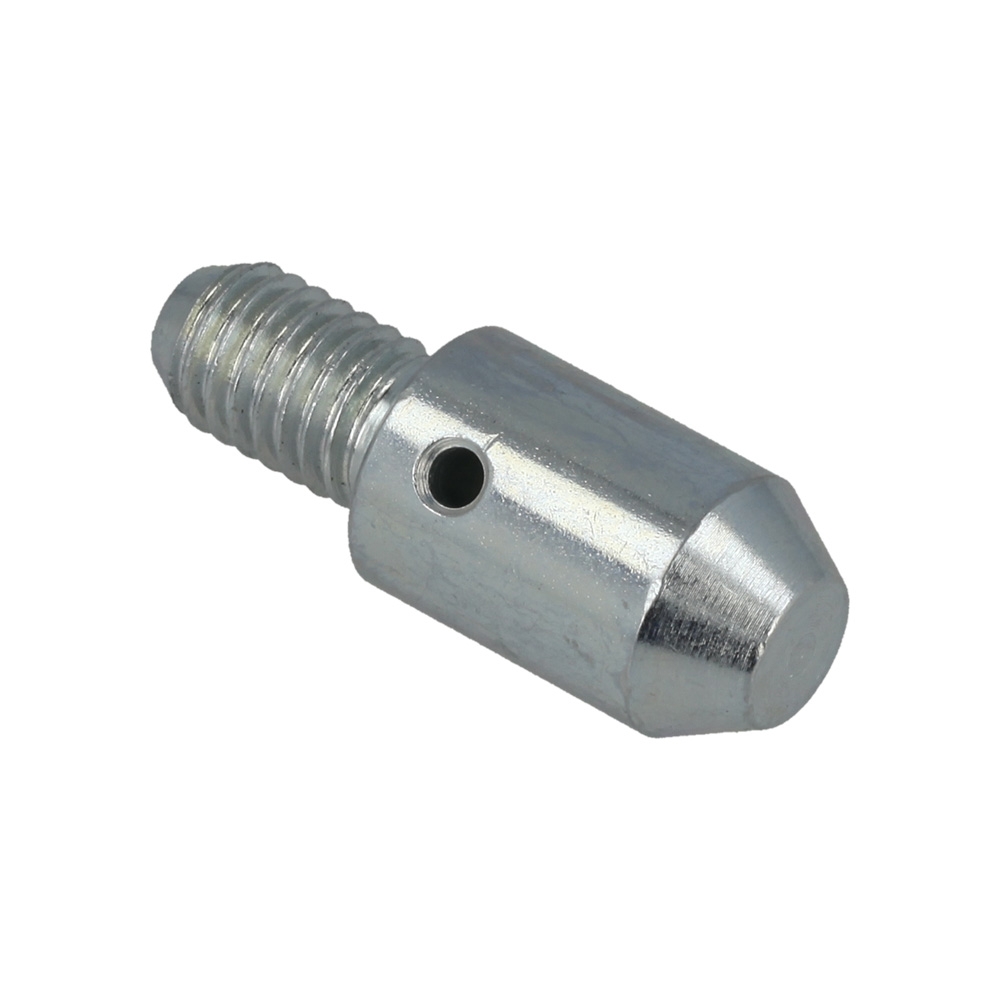

32	HP80624-VK1-003 Available to backorder	Pin	£3.84 £3.20
33	HP80625-VK1-003 Available to backorder	Instrument Panel	£50.34 £41.95
34	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
35	HP80730-VK1-003 Available to backorder	Nut Clip	£15.74 £13.12
36	HP90101-VK1-F01 Available to backorder	Pan Screw	£4.02 £3.35
37	HP90102-VK1-F01 Available to backorder	Tapping Screw	£4.02 £3.35
38	HP90103-VK1-F01 Available to backorder	Bolt	£2.98 £2.48
39	HP80027-Y09-003 Available to backorder	Washer	£4.42 £3.68
40	HP80033-Y09-003 Available to backorder	Washer	£3.90 £3.25
41	HP80301-Y09-003 Available to backorder	Clamp	£2.17 £1.81
42	HP80026-Y09-003 Available to backorder	Washer	£4.42 £3.68
43	HP80729-VK1-003 Available to backorder	Band	£1.52 £1.27
