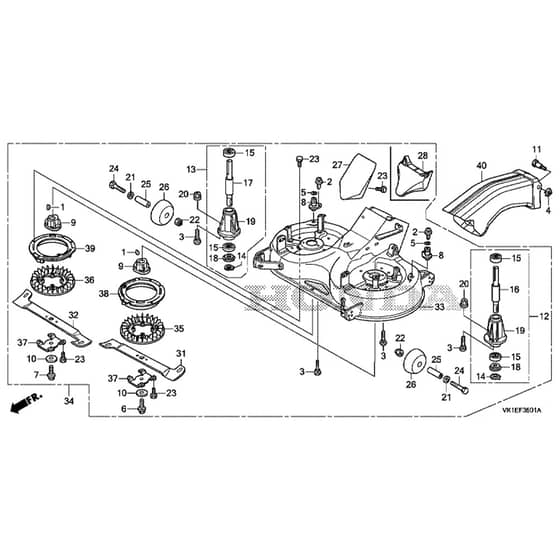

Honda HF2622-HMF - Cutting Housing Diagram

Description

Honda HF2622-HMF Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80003-Y09-003 In stock	Key	£10.48 £8.73
2	HP80025-Y09-003 Available to backorder	Rivet	£1.97 £1.64
3	HP80103-Y09-003 Available to backorder	Screw	£1.32 £1.10
4	HP80107-VK1-003 Available to backorder	Special Nut 8Mm	£0.96 £0.80
5	HP80133-Y09-003 Available to backorder	O Ring	£5.59 £4.66
6	HP80138-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 D	£1.68 £1.40
7	HP80139-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 S	£1.72 £1.43
8	HP80166-Y09-003 Available to backorder	Water Hose Connector	£1.38 £1.15
9	HP80225-Y09-003 In stock	Blade Hub	£14.98 £12.48
10	HP80279-VK1-003 In stock	Dust Cover	£7.34 £6.12
11	HP80342-VK1-003 Available to backorder	Special Screw 8Mm	£8.14 £6.78
12	HP76210-VK1-E11 Available to backorder	Blade Shaft Assy L H	£199.97 £166.64
13	HP76200-VK1-G11 Available to backorder	Blade Shaft Assy R H	£178.44 £148.70
14	HP80052-Y09-003 Available to backorder	External Circlip	£1.78 £1.48
15	HP80736-VK1-003 Available to backorder	Bearing	£30.04 £25.03
16	HP76214-VK1-E11 Available to backorder	Blade Shaft L H	£133.08 £110.90
17	HP80213-VK1-003 Available to backorder	Blade Shaft	£70.00 £58.33
18	HP80197-Y09-003 Available to backorder	Dust Cover	£3.29 £2.74
19	HP80199-Y09-003 Available to backorder	Flange	£59.40 £49.50
20	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
21	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
22	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
23	HP80682-VK1-003 Available to backorder	Screw	£3.08 £2.57
24	HP80063-Y09-003 Available to backorder	Screw	£2.94 £2.45
25	HP80355-VK1-003 Available to backorder	Spacer	£4.62 £3.85
26	HP80576-VK1-003 In stock	Anti Scalp Roller	£12.32 £10.27
28	HP76142-VK1-E11 Available to backorder	Scroll Guide	£58.68 £48.90
31	HP72531-VK1-B11 In stock	Blade L H	£65.60 £54.67
32	HP72511-VK1-B11 In stock	Blade R H	£65.16 £54.30
33	HP76110-VK1-E11 Available to backorder	Cutter Deck	£681.00 £567.50
35	HP72518-VK1-A10 In stock	Discharge Fan Assy	£58.32 £48.60
36	HP72519-VK1-A10 In stock	Discharge Fan Assy	£58.32 £48.60
37	HP72621-VK1-A10 Available to backorder	Blade Holder	£11.56 £9.63
38	HP76165-VK1-B11 In stock	Fan Guide	£57.08 £47.57
39	HP76166-VK1-B11 Available to backorder	Fan Guide Rh	£57.08 £47.57
40	HP76310-VK1-306 Available to backorder	Chute Assy	£102.24 £85.20
