Honda HF2622-HMF - Blades Control Belt Diagram

Name: Honda HF2622-HMF - Blades Control Belt Diagram
SKU: hf2622_hmf_blades_control_belt-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2622-HMF - Blades Control Belt Diagram

Description

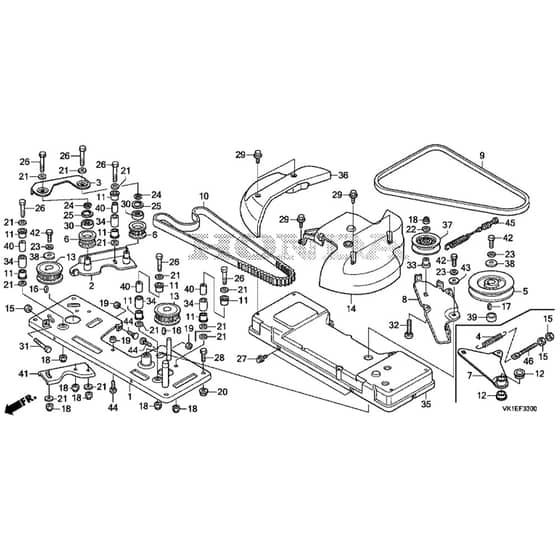

Honda HF2622-HMF Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP70110-VK1-E11 Available to backorder	Plate	£213.00 £177.50
2	HP70141-VK1-E11 Available to backorder	Support Plate	£93.74 £78.12
3	HP70143-VK1-E11 Available to backorder	Support Frame Plate	£15.32 £12.77
4	HP80317-VK1-003 In stock	Spring	£5.17 £4.31
5	HP76141-VK1-E11 Available to backorder	Driven Pulley	£28.92 £24.10
6	HP76245-VK1-E11 Available to backorder	Tensioner Pulley Comp	£28.92 £24.10
7	HP76180-VK1-E11 Available to backorder	Belt Tensioner Arm Comp	£155.34 £129.45
9	HP76181-VK1-E11 Available to backorder	Belt	£71.40 £59.50
11	HP76186-VK1-E11 In stock	Flange Bush	£4.14 £3.45
12	HP76187-VK1-E11 Available to backorder	Flange Bush	£5.34 £4.45
13	HP76240-VK1-E11 Available to backorder	Timing Pulley Comp	£28.92 £24.10
14	HP76251-VK1-E11 Available to backorder	Deck Pulley Cover	£25.21 £21.01
15	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
16	HP80005-Y09-003 In stock	Key	£1.76 £1.47
17	HP90754-VK1-E11 Available to backorder	Key	£5.68 £4.73
18	HP80104-VK1-003 Available to backorder	Nut	£0.92 £0.77
19	HP80014-Y09-003 Available to backorder	Nut M6	£2.86 £2.38
20	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
22	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
23	HP80045-Y09-003 Available to backorder	Washer	£1.55 £1.29
24	HP80051-Y09-003 Available to backorder	Snap Ring	£1.66 £1.38
25	HP80053-Y09-003 Available to backorder	Snap Ring	£1.87 £1.56
26	HP80061-Y09-003 Available to backorder	Screw	£5.96 £4.97
27	HP80079-Y09-003 In stock	Screw	£0.62 £0.52
29	HP80083-Y09-003 Available to backorder	Special Screw	£3.28 £2.73
28	HP80099-Y09-003 Available to backorder	Screw	£3.40 £2.83
30	HP80737-VK1-003 Available to backorder	Bearing	£24.30 £20.25
30	HP80135-Y09-003 Available to backorder	Bearing	£24.30 £20.25
31	HP80148-VK1-003 Available to backorder	Bolt 8 X 60	£1.08 £0.90
32	HP80154-VK1-003 Available to backorder	Special Screw 8 X 30	£3.37 £2.81
33	HP76197-VK1-F01 Available to backorder	Idler Pulley Spacer	£20.04 £16.70
33	HP80191-Y09-003 Available to backorder	Spacer	£11.60 £9.67
34	HP91556-VK1-E11 Available to backorder	Collar	£22.86 £19.05
35	HP80235-VK1-003 Available to backorder	Case	£38.00 £31.67
36	HP80238-VK1-013 Available to backorder	Case	£19.40 £16.17
37	HP76195-VK1-F01 Available to backorder	Idler Pulley	£64.54 £53.78
38	HP80265-Y09-003 Available to backorder	Washer	£3.66 £3.05
39	HP80268-VK1-003 Available to backorder	Spacer	£3.96 £3.30
40	HP91557-VK1-E11 Available to backorder	Collar	£9.00 £7.50
41	HP80398-VK1-003 Available to backorder	Stiffener Frame	£11.21 £9.34
42	HP80101-Y09-003 Available to backorder	Screw	£5.28 £4.40
42	HP80734-VK1-003 Available to backorder	Bolt	£2.58 £2.15
44	HP80151-VK1-003 Available to backorder	Special Screw 6 X 16	£3.28 £2.73
46	HP90101-VK1-E11 Available to backorder	Adjusting Bolt	£22.82 £19.02
