Honda HF2622-HME - Hood Diagram

Name: Honda HF2622-HME - Hood Diagram
SKU: hf2622_hme_hood-group
Price: 0.4 GBP
Availability: InStock

Part No. hf2622_hme_hood-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

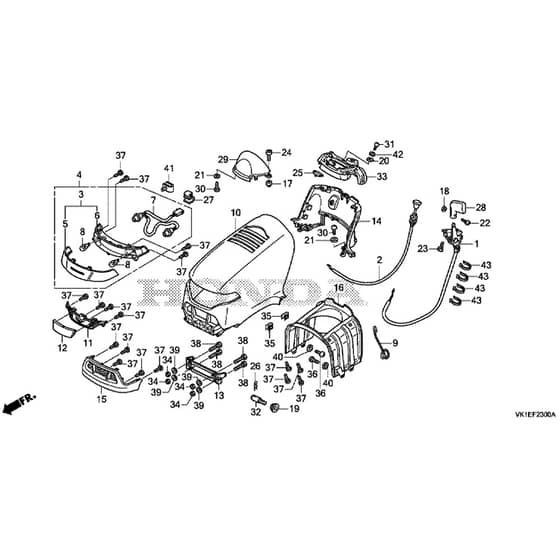

Honda HF2622-HME Ride On Mower Parts Diagram

	Part No.	Details
1	HP17910-VK1-E11 Available to backorder	Throttle Cable	£50.44 £42.03
2	HP17950-VK1-E11 Available to backorder	Choke Cable	£60.84 £50.70
5	HP33102-VK1-F11 Available to backorder	Lens Headlight	£43.45 £36.21
6	HP33120-VK1-F11 Available to backorder	Headlight Unit	£253.80 £211.50
7	HP33130-VK1-F11 Available to backorder	Headlight Cord	£60.72 £50.60
8	HP34905-GM9-003 Available to backorder	Winker Bulb	£3.41 £2.84
10	HP60111-VK1-F01 Available to backorder	Hood	£636.00 £530.00
11	HP60121-VK1-F01 Available to backorder	Front Grille	£31.99 £26.66
12	HP60166-VK1-F11 Available to backorder	Headlight Cover	£112.08 £93.40
13	HP60175-VK1-F01 Available to backorder	Hood Bracket	£36.54 £30.45
14	HP61401-VK1-F01 Available to backorder	Column Cover	£85.08 £70.90
15	HP63511-VK1-F01 Available to backorder	Front Cover	£83.52 £69.60
16	HP63728-VK1-E11 Available to backorder	Air Guide	£78.12 £65.10
17	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.73 £0.61
18	HP80012-Y09-003 Available to backorder	Nut	£0.48 £0.40
19	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
20	HP80024-Y09-003 Available to backorder	Plate	£3.67 £3.06
21	HP80034-Y09-003 Available to backorder	Washer	£1.03 £0.86
22	HP80067-Y09-003 Available to backorder	Screw	£5.05 £4.21
23	HP80089-Y09-003 Available to backorder	Screw	£5.05 £4.21
24	HP80128-VK1-003 Available to backorder	Socket Head Bolt 5 X 20	£0.48 £0.40
25	HP80200-Y09-003 Available to backorder	Grommet	£0.92 £0.77
26	HP80211-VK1-003 In stock	Lock Pin 12Mm	£0.86 £0.72
27	HP80300-Y09-003 Available to backorder	Clamp	£2.14 £1.78
28	HP80301-VK1-003 Available to backorder	Handle	£6.58 £5.48
29	HP80379-VK1-003 Available to backorder	Circuit Protector	£18.48 £15.40
30	HP80602-VK1-003 Available to backorder	Screw	£4.16 £3.47
31	HP90101-VP6-003 Available to backorder	Self Tapping Screw 4.8 X 19	£5.28 £4.40
32	HP80624-VK1-003 In stock	Pin	£4.12 £3.43
33	HP80625-VK1-003 Available to backorder	Instrument Panel	£52.08 £43.40
34	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
35	HP80730-VK1-003 Available to backorder	Nut Clip	£16.28 £13.57
36	HP90101-VK1-F01 Available to backorder	Pan Screw	£4.16 £3.47
37	HP90102-VK1-F01 Available to backorder	Tapping Screw	£4.16 £3.47
38	HP90103-VK1-F01 Available to backorder	Bolt	£3.08 £2.57
39	HP80027-Y09-003 Available to backorder	Washer	£4.36 £3.63
40	HP80033-Y09-003 Available to backorder	Washer	£4.03 £3.36
41	HP80301-Y09-003 Available to backorder	Clamp	£2.65 £2.21
42	HP80026-Y09-003 Available to backorder	Washer	£4.36 £3.63
43	HP80729-VK1-003 Available to backorder	Band	£1.28 £1.07
