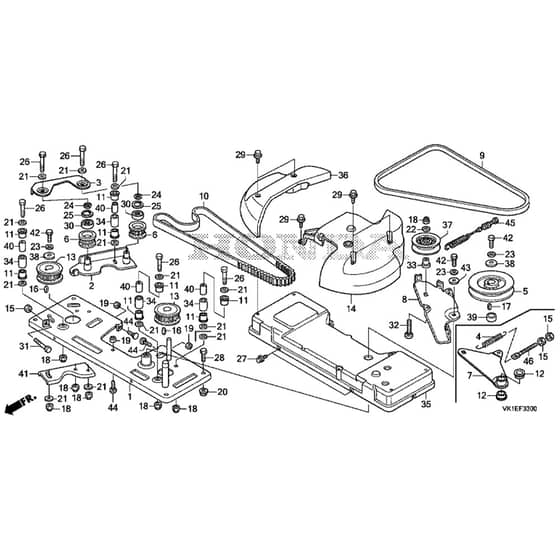

Honda HF2622-HME Ride On Mower Parts Diagram

	Part No.	Details
1	HP70110-VK1-E11 Available to backorder	Plate	£226.92 £189.10
2	HP70141-VK1-E11 Available to backorder	Support Plate	£93.72 £78.10
3	HP70143-VK1-E11 Available to backorder	Support Frame Plate	£15.85 £13.21
4	HP80317-VK1-003 In stock	Spring	£5.47 £4.56
5	HP76141-VK1-E11 Available to backorder	Driven Pulley	£29.92 £24.93
6	HP76245-VK1-E11 Available to backorder	Tensioner Pulley Comp	£29.92 £24.93
7	HP76180-VK1-E11 Available to backorder	Belt Tensioner Arm Comp	£155.40 £129.50
9	HP76181-VK1-E11 Available to backorder	Belt	£72.84 £60.70
11	HP76186-VK1-E11 In stock	Flange Bush	£4.28 £3.57
12	HP76187-VK1-E11 Available to backorder	Flange Bush	£5.52 £4.60
13	HP76240-VK1-E11 In stock	Timing Pulley Comp	£31.61 £26.34
14	HP76251-VK1-E11 Available to backorder	Deck Pulley Cover	£24.84 £20.70
15	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
16	HP80005-Y09-003 In stock	Key	£1.90 £1.58
17	HP90754-VK1-E11 Available to backorder	Key	£5.88 £4.90
18	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
19	HP80014-Y09-003 Available to backorder	Nut M6	£2.96 £2.47
20	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
22	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
23	HP80045-Y09-003 In stock	Washer	£1.55 £1.29
24	HP80051-Y09-003 Available to backorder	Snap Ring	£1.80 £1.50
25	HP80053-Y09-003 Available to backorder	Snap Ring	£1.80 £1.50
26	HP80061-Y09-003 In stock	Screw	£6.40 £5.33
29	HP80083-Y09-003 In stock	Special Screw	£3.40 £2.83
27	HP80079-Y09-003 In stock	Screw	£0.66 £0.55
28	HP80099-Y09-003 Available to backorder	Screw	£3.35 £2.79
30	HP80737-VK1-003 In stock	Bearing	£28.33 £23.61
30	HP80135-Y09-003 In stock	Bearing	£28.33 £23.61
31	HP80148-VK1-003 Available to backorder	Bolt 8 X 60	£1.31 £1.09
32	HP80154-VK1-003 Available to backorder	Special Screw 8 X 30	£3.20 £2.67
33	HP76197-VK1-F01 Available to backorder	Idler Pulley Spacer	£20.74 £17.28
33	HP80191-Y09-003 Available to backorder	Spacer	£12.00 £10.00
34	HP91556-VK1-E11 Available to backorder	Collar	£23.65 £19.71
35	HP80235-VK1-003 Available to backorder	Case	£38.94 £32.45
36	HP80238-VK1-013 Available to backorder	Case	£19.12 £15.93
37	HP76195-VK1-F01 Available to backorder	Idler Pulley	£64.56 £53.80
38	HP80265-Y09-003 In stock	Washer	£4.09 £3.41
39	HP80268-VK1-003 In stock	Spacer	£4.18 £3.48
40	HP91557-VK1-E11 Available to backorder	Collar	£9.78 £8.15
41	HP80398-VK1-003 Available to backorder	Stiffener Frame	£11.04 £9.20
42	HP80734-VK1003 Available to backorder	Hex Bolt	£2.14 £1.78
42	HP80101-Y09-003 In stock	Screw	£5.56 £4.63
44	HP80151-VK1-003 Available to backorder	Special Screw 6 X 16	£3.40 £2.83
46	HP90101-VK1-E11 Available to backorder	Adjusting Bolt	£23.60 £19.67
