Honda HF2620K1-HTEA - Steering Wheel Diagram

Name: Honda HF2620K1-HTEA - Steering Wheel Diagram
SKU: hf2620k1_htea_steering_wheel-group
Price: 0.9 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

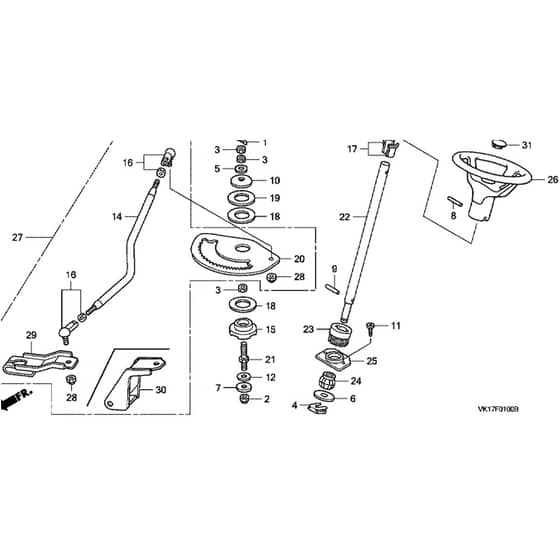

Honda HF2620K1-HTEA - Steering Wheel Diagram

Description

Honda HF2620K1-HTEA Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80006-Y09-003 Available to backorder	Split Pin	£3.49 £2.91
2	HP80011-Y09-003 Available to backorder	Nut M10	£1.08 £0.90
3	HP80017-Y09-003 Available to backorder	Nut	£2.71 £2.26
4	HP80022-Y09-003 Available to backorder	Plate	£5.16 £4.30
5	HP80029-Y09-003 Available to backorder	Washer	£3.96 £3.30
6	HP80030-Y09-003 Available to backorder	Washer	£3.37 £2.81
7	HP80037-Y09-003 Available to backorder	Washer	£4.34 £3.62
8	HP80055-Y09-003 Available to backorder	Pin	£3.29 £2.74
9	HP80056-Y09-003 Available to backorder	Pin	£4.08 £3.40
10	HP80144-Y09-003 Available to backorder	Elastic Washer	£3.88 £3.23
11	HP80145-VK1-003 Available to backorder	Self Tapping Screw 5.4 X 14	£2.81 £2.34
12	HP80148-Y09-003 Available to backorder	Washer	£5.88 £4.90
14	HP80215-VK1-013 Available to backorder	Steering Rod	£89.88 £74.90
15	HP80171-Y09-003 Available to backorder	Bush	£38.30 £31.92
16	HP80655-VK1-003 In stock	Joint	£45.32 £37.77
17	HP80230-VK1-003 Available to backorder	Bush	£4.32 £3.60
18	HP80268-Y09-003 Available to backorder	Washer	£3.96 £3.30
19	HP80269-Y09-003 Available to backorder	Washer	£4.08 £3.40
20	HP80275-Y09-013 Available to backorder	Steering Gear	£63.50 £52.92
21	HP80351-VK1-013 Available to backorder	Pin	£8.88 £7.40
22	HP80361-VK1-003 Available to backorder	Steering Shaft	£99.82 £83.18
23	HP80367-VK1-013 Available to backorder	Pinion	£17.40 £14.50
24	HP80418-VK1-003 Available to backorder		£4.44 £3.70
25	HP80447-VK1-003 Available to backorder		£7.84 £6.53
26	HP80466-VK1-003 Available to backorder	Steering Wheel Assy	£86.64 £72.20
27	HP04402-VK1-315 Available to backorder	Steering Rod Kit	£230.28 £191.90
28	HP90302-VK1-E11 Available to backorder	Lock Nut 12Mm	£7.60 £6.33
30	HP44190-VK1-G11 Available to backorder	Knuckle Arm	£40.99 £34.16
31	HP80662-VK1-003 Available to backorder	Steering Wheel Cover	£37.16 £30.97
