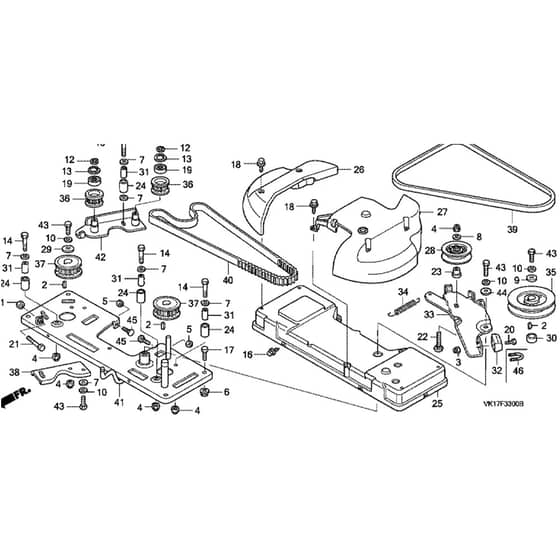

Honda HF2620K1-HTEA - Blades Control Belt Diagram

Description

Honda HF2620K1-HTEA Ride On Mower Parts Diagram

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP80005-Y09-003 In stock	Key	£1.90 £1.58
4	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
5	HP80014-Y09-003 Available to backorder	Nut M6	£2.96 £2.47
6	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
8	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
10	HP80045-Y09-003 In stock	Washer	£1.55 £1.29
12	HP80051-Y09-003 Available to backorder	Snap Ring	£1.80 £1.50
13	HP80053-Y09-003 Available to backorder	Snap Ring	£1.80 £1.50
14	HP80059-Y09-003 Available to backorder	Screw R H	£6.17 £5.14
15	HP80061-Y09-003 In stock	Screw	£6.40 £5.33
18	HP80083-Y09-003 In stock	Special Screw	£3.40 £2.83
16	HP80079-Y09-003 In stock	Screw	£0.66 £0.55
17	HP80099-Y09-003 Available to backorder	Screw	£3.35 £2.79
19	HP80135-Y09-003 In stock	Bearing	£28.33 £23.61
21	HP80148-VK1-003 Available to backorder	Bolt 8 X 60	£1.31 £1.09
22	HP80154-VK1-003 Available to backorder	Special Screw 8 X 30	£3.20 £2.67
23	HP80191-Y09-003 Available to backorder	Spacer	£12.00 £10.00
24	HP80228-VK1-003 In stock	Bush	£1.98 £1.65

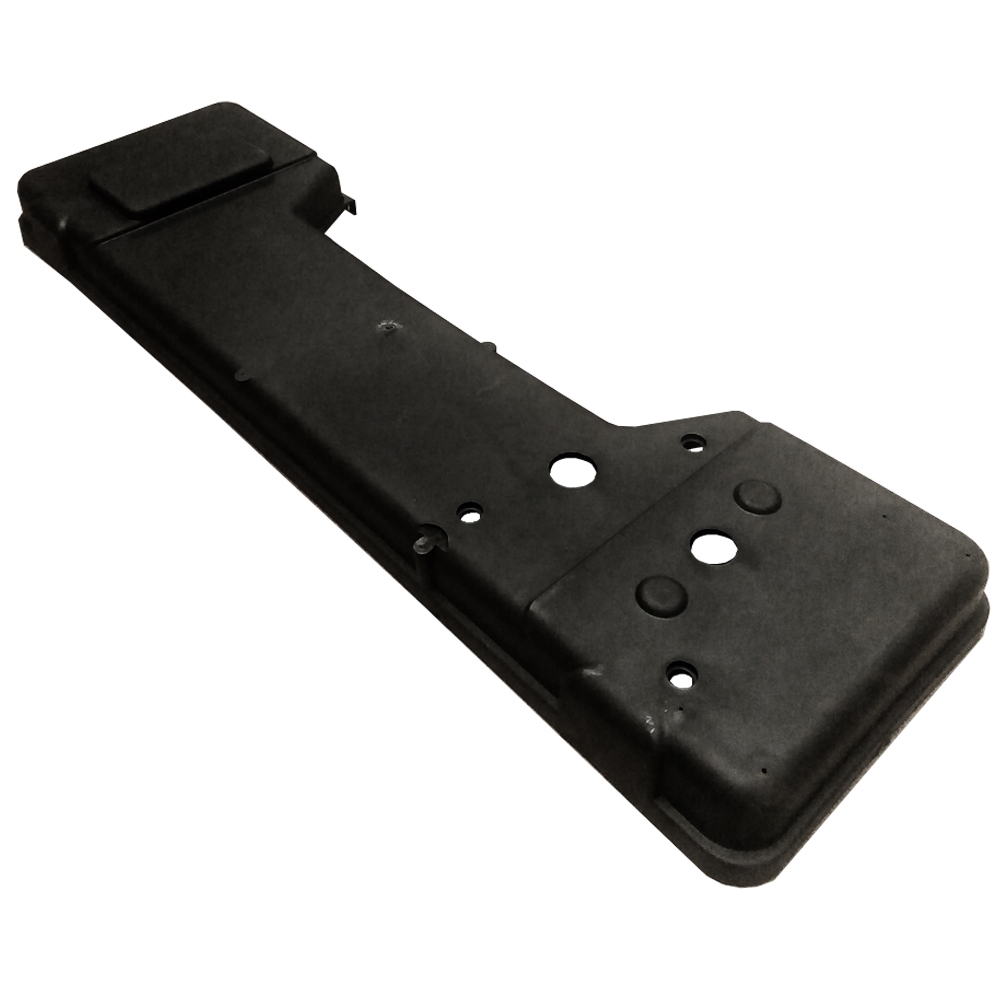

25	HP80235-VK1-003 Available to backorder	Case	£38.94 £32.45
26	HP80238-VK1-013 Available to backorder	Case	£19.12 £15.93
27	HP76251-VK1-E11 Available to backorder	Deck Pulley Cover	£24.84 £20.70
28	HP80256-Y09-003 Available to backorder	Pulley	£69.24 £57.70
29	HP80265-Y09-003 In stock	Washer	£4.09 £3.41
30	HP80268-VK1-003 In stock	Spacer	£4.18 £3.48
31	HP80269-VK1-003 Available to backorder	Spacer	£3.17 £2.64

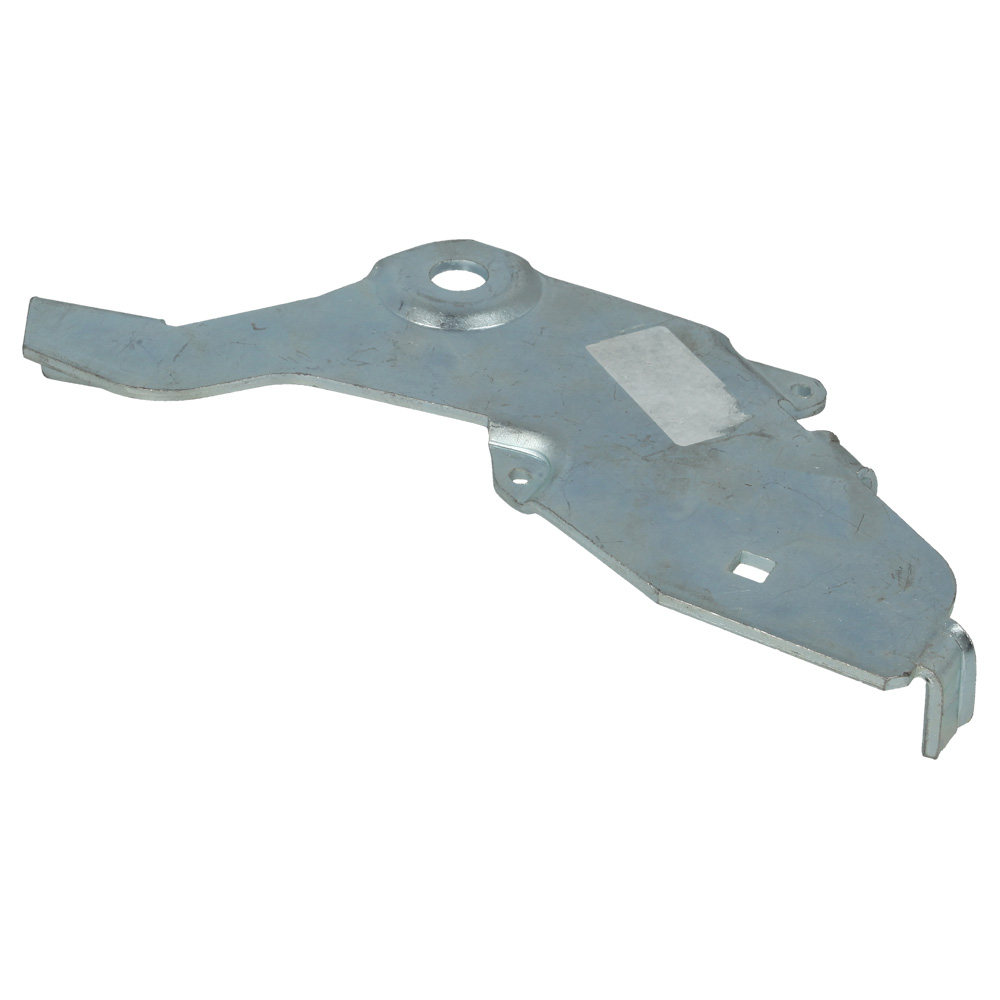

33	HP80291-VK1-003 Available to backorder	Brake Lever	£22.08 £18.40
34	HP80317-VK1-003 In stock	Spring	£5.47 £4.56

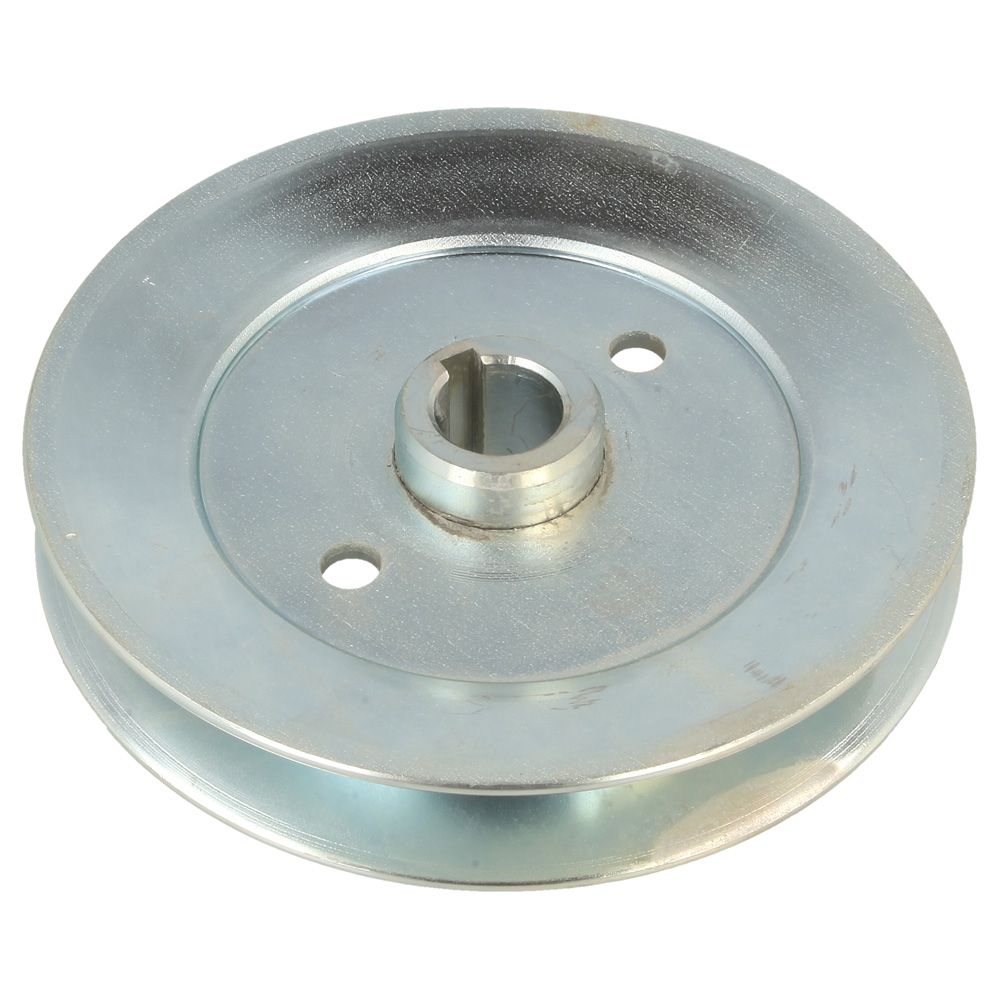

35	HP80384-VK1-003 Available to backorder	Pulley	£90.36 £75.30

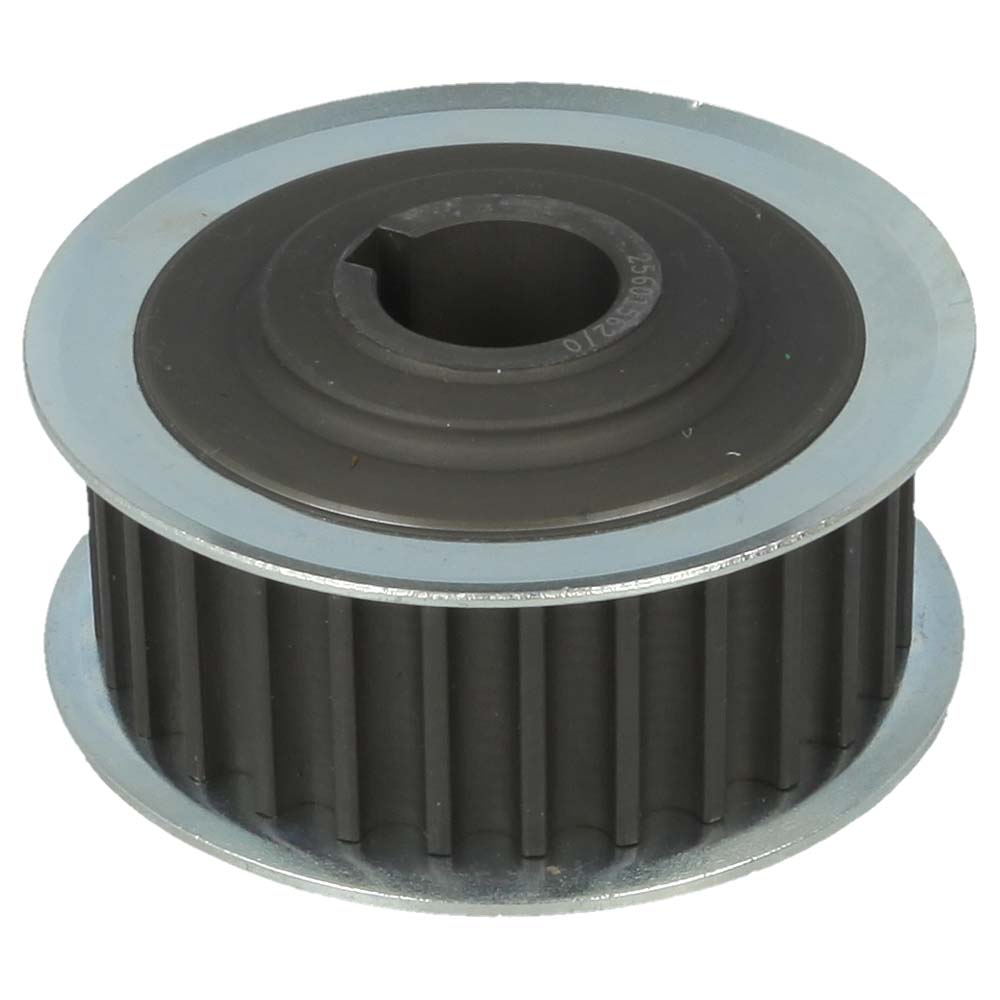

37	HP80389-VK1-003 In stock	Pulley	Was £103.72 £86.43 Special Price £74.68 £62.23
38	HP80398-VK1-003 Available to backorder	Stiffener Frame	£11.04 £9.20

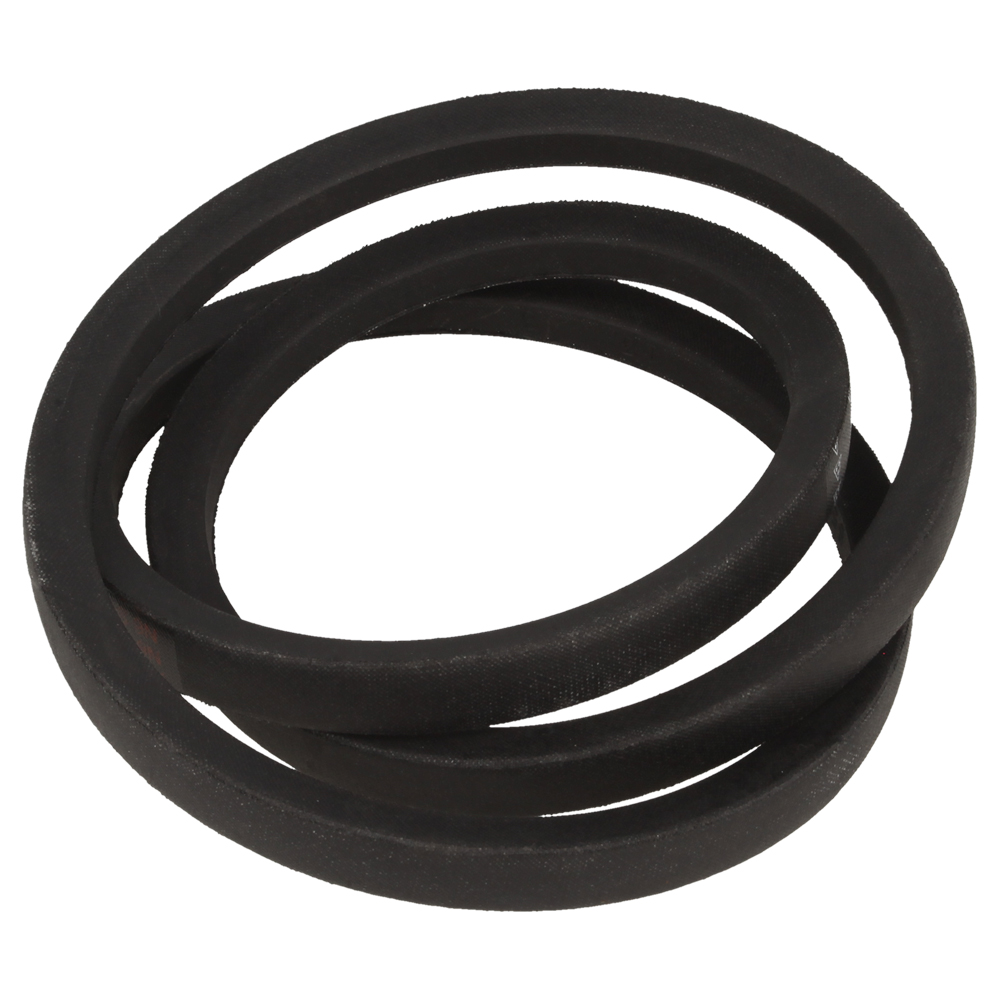

39	HP80479-VK1-003 Available to backorder	Belt	£61.68 £51.40
40	HP80482-VK1-003 Available to backorder	Belt	£161.76 £134.80
41	HP80633-VK1-003 Available to backorder	Plate	£135.96 £113.30
42	HP80585-VK1-003 Available to backorder	Support	£60.56 £50.47
43	HP80101-Y09-003 In stock	Screw	£5.56 £4.63
44	HP80036-Y09-003 In stock	Washer	£6.01 £5.01
45	HP80151-VK1-003 Available to backorder	Special Screw 6 X 16	£3.40 £2.83
