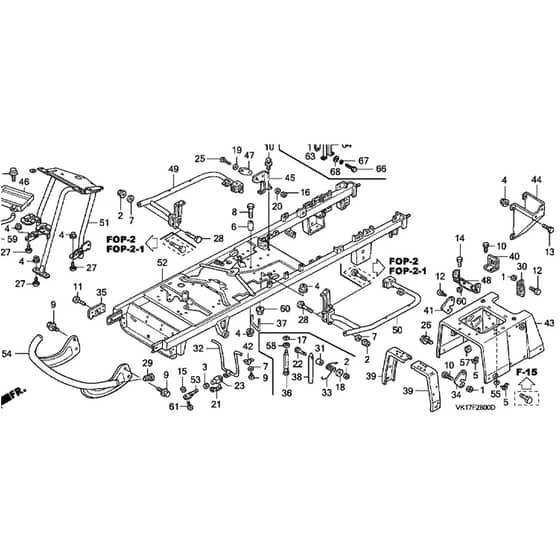

Honda HF2620K1-HTE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
4	HP80014-Y09-003 Available to backorder	Nut M6	£2.86 £2.38
5	HP80024-Y09-003 Available to backorder	Plate	£3.73 £3.11
6	HP80030-VF4-003 Available to backorder	Spacer	£3.44 £2.87
7	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
8	HP80059-Y09-003 Available to backorder	Screw R H	£5.95 £4.96
9	HP80075-Y09-003 Available to backorder	Screw	£3.32 £2.77
10	HP80079-Y09-003 In stock	Screw	£0.62 £0.52
11	HP80132-VK1-003 Available to backorder	Self Tapping Screw 6 X 16	£2.81 £2.34
13	HP80093-Y09-003 Available to backorder	Screw	£2.81 £2.34
14	HP80099-Y09-003 Available to backorder	Screw	£3.40 £2.83
16	HP80105-VK1-003 Available to backorder	Hex Nut 3Mm	£1.02 £0.85
19	HP80114-VK1-003 Available to backorder	Plain Washer 3Mm	£0.48 £0.40
25	HP80137-VK1-003 Available to backorder	Bolt 3 X 22	£1.44 £1.20
26	HP80142-VK1-003 Available to backorder	Bolt 6 X 18	£1.18 £0.98
27	HP80151-VK1-003 Available to backorder	Special Screw 6 X 16	£3.28 £2.73
28	HP80153-VK1-003 Available to backorder	Special Screw 6 X 40	£2.81 £2.34
29	HP80202-VK1-003 Available to backorder	Cap	£1.88 £1.57
35	HP80364-VK1-003 Available to backorder	Plate	£5.28 £4.40
37	HP80370-VK1-003 Available to backorder	Belt Guide	£6.08 £5.07
39	HP80399-VK1-003 Available to backorder	Stiffener Frame	£7.46 £6.22
40	HP80419-VK1-003 Available to backorder	Bracket	£8.90 £7.42
43	HP80435-VK1-003 Available to backorder	Support Seal	£98.28 £81.90
44	HP80436-VK1-003 Available to backorder	Support	£23.06 £19.22
46	HP31551-VK1-F01 Available to backorder	Battery Tray	£10.60 £8.83
48	HP80579-VK1-003 Available to backorder	Seat Support	£9.71 £8.09
49	HP80587-VK1-023 Available to backorder	Support	£57.96 £48.30
51	HP80589-VK1-023 Available to backorder	Support	£140.64 £117.20
52	HP80592-VK1-003 Available to backorder	Frame	£755.96 £629.97
54	HP80595-VK1-003 Available to backorder	Bumper	£110.71 £92.26
55	HP80019-Y09-003 Available to backorder	Nut	£7.02 £5.85
59	HP80606-VK1-003 Available to backorder	Drain Tube	£17.02 £14.18
60	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
