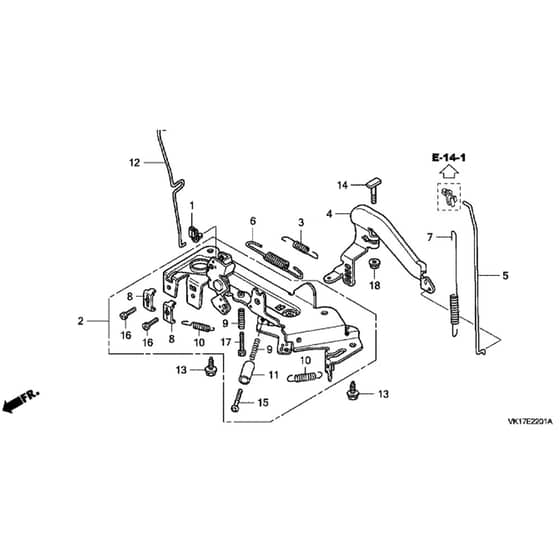

Honda HF2620K1-HTE - Control Diagram

Description

Honda HF2620K1-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP16263-883-W10 Available to backorder	Joint	£4.88 £4.07
2	HP16500-ZJ4-830 Available to backorder	Control Assy	£108.00 £90.00
3	HP16534-ZJ1-840 Available to backorder	Spring	£4.87 £4.06
4	HP16551-ZJ1-840 Available to backorder	Governor Arm	£16.20 £13.50
5	HP16555-ZJ4-830 Available to backorder	Governor Rod	£7.06 £5.88
6	HP16561-ZJ4-830 Available to backorder	Spring	£6.86 £5.72
7	HP16562-ZJ4-830 Available to backorder	Throttle Return Spring	£4.12 £3.43
8	HP16576-891-000 Available to backorder	Cable Holder	£3.85 £3.21
9	HP16584-883-300 Available to backorder	Control Adjusting Spring	£4.75 £3.96
10	HP16592-ZJ1-000 Available to backorder	Return Spring	£2.03 £1.69
11	HP16599-ZG1-M10 Available to backorder	Stopper Collar	£2.59 £2.16
12	HP16611-ZJ4-830 Available to backorder	Choke Control Rod	£12.17 £10.14
13	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
14	HP90015-ZE3-790 Available to backorder	Bolt Governor Arm	£2.80 £2.33
15	HP90016-ZJ4-U00 Available to backorder	Screw	£2.20 £1.83
16	HP92301-05016-0A Available to backorder	Bolt	£1.12 £0.93
17	HP92301-050-250A Available to backorder	Bolt	£0.83 £0.69
18	HP94050-06000 In stock	Flange Nut 6Mm	£3.22 £2.68
