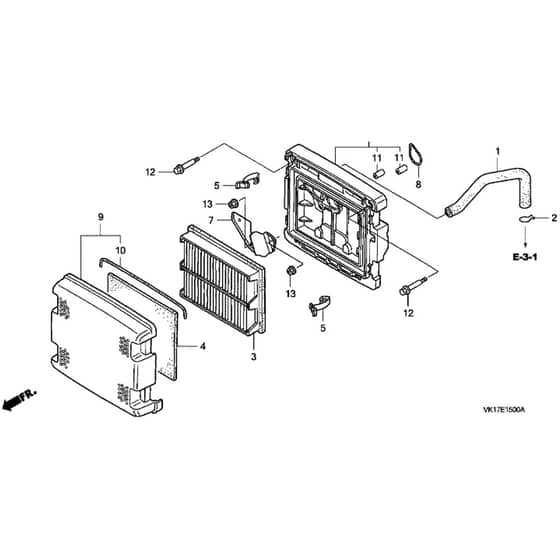

Honda HF2620K1-HTE - Air Cleaner Diagram

Honda HF2620K1-HTE - Air Cleaner Diagram

Part No. hf2620k1_hte_air_cleaner-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2620K1-HTE - Air Cleaner Diagram

Honda HF2620K1-HTE - Air Cleaner Diagram

Description

Honda HF2620K1-HTE Ride On Mower Parts Diagram

Ref.		Img.	Part No.	Details
	1		HP12357-ZJ4-830 Available to backorder	Breather Tube		£8.21 £6.84
	2		HP15772-551-000 Available to backorder			£4.80 £4.00

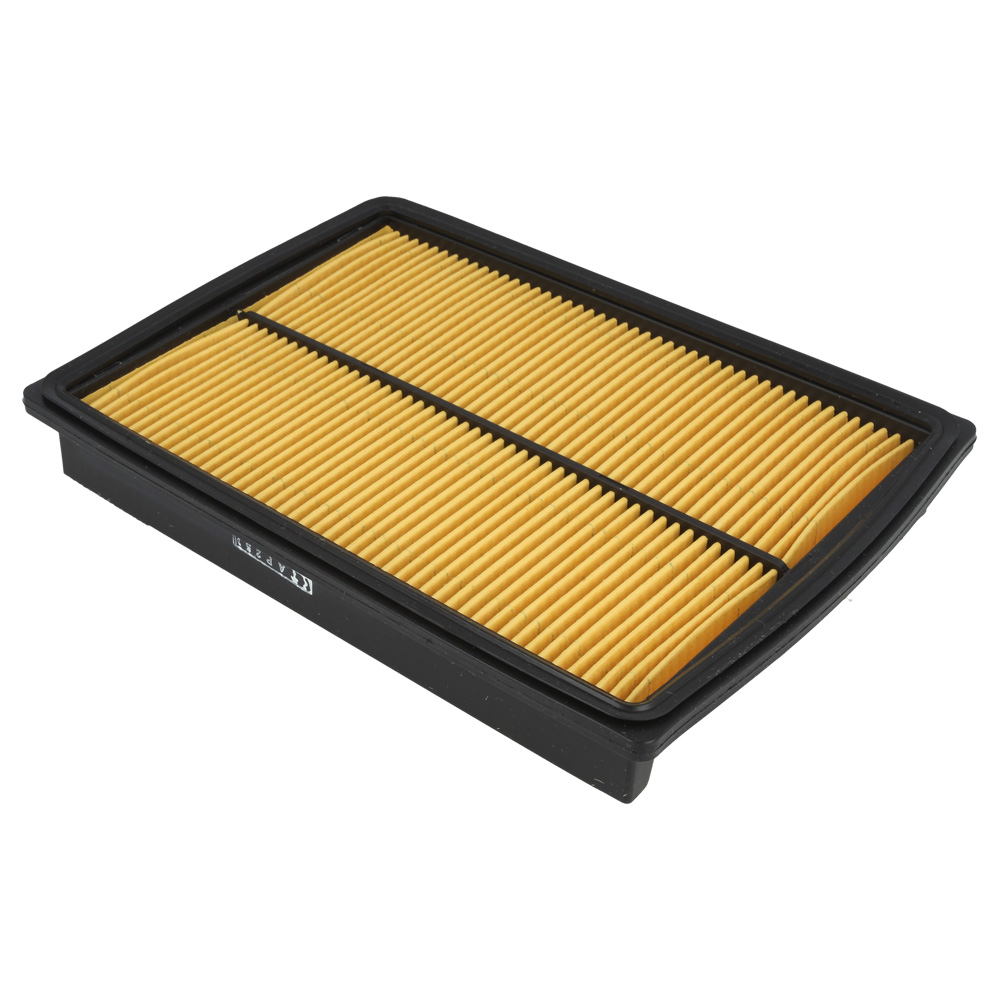

	3		HP17210-ZJ1-842 Available to backorder	Air Filter		£35.83 £29.86

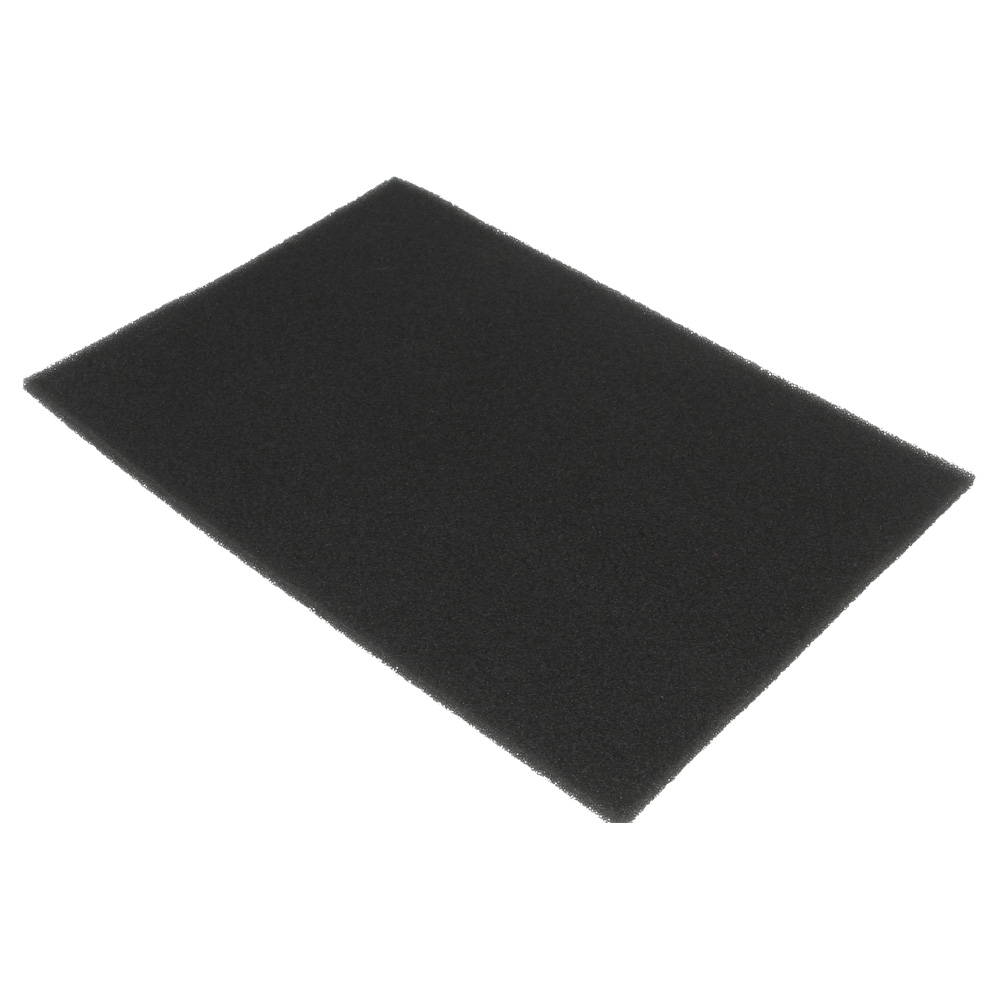

	4		HP17218-ZJ1-840 Available to backorder	Pre Air Filter		£6.50 £5.42
	5		HP17219-ZJ1-840 Available to backorder	Air Filter Clip		£5.98 £4.98
	6		HP17220-ZJ4-830 Available to backorder	Filter Case		£88.44 £73.70
	7		HP17223-ZJ4-830 Available to backorder	Air Cleaner Cap		£8.72 £7.27
	8		HP17228-ZG8-003 Available to backorder	Air Filter Gasket		£2.66 £2.22
	9		HP17230-ZJ1-841 Available to backorder	Air Filter Cover Assy		£63.96 £53.30
	10		HP17233-ZJ1-840 Available to backorder	Seal		£3.19 £2.66
	11		HP17238-ZJ4-830 Available to backorder	Air Filter Collar		£3.06 £2.55
	12		HP90003-ZJ1-840 Available to backorder	Bolt		£4.88 £4.07
	13		HP94050-06000 In stock	Flange Nut 6Mm		£3.37 £2.81

Description

Honda HF2620K1-HTE Ride On Mower Parts Diagram
