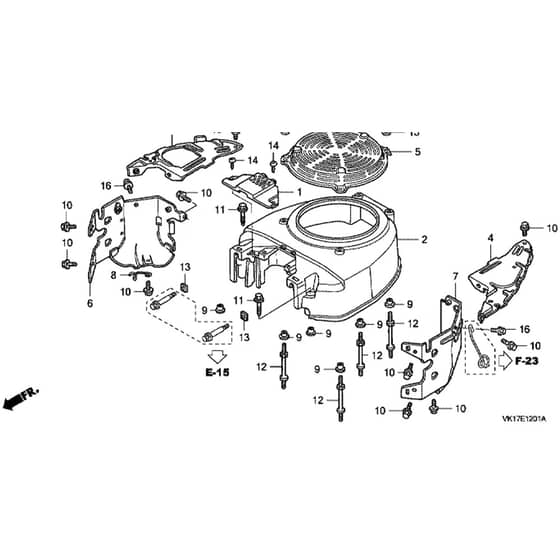

Honda HF2620K1-HME - Fan Cover Diagram

Description

Honda HF2620K1-HME Ride On Mower Parts Diagram

	Part No.	Details
1	HP16715-ZJ1-840 Available to backorder	Fuel Pump Cover	£18.54 £15.45
2	HP19611-ZJ1-850ZC Available to backorder	Fan Cover	£141.96 £118.30
3	HP19612-ZJ1-841 Available to backorder	Side Plate	£32.68 £27.23
4	HP19614-ZJ1-841 Available to backorder	Side Plate	£32.68 £27.23
5	HP19621-ZJ1-801ZC Available to backorder	Fan Cover	£156.84 £130.70
7	HP19632-ZJ1-841 Available to backorder	Shroud	£44.40 £37.00
8	HP30588-898-000 Available to backorder	Tube Clamp	£5.42 £4.52
9	HP33713-GC2-000 Available to backorder	Tail Light Collar	£5.14 £4.28
10	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£5.42 £4.52
11	HP90018-ZE1-000 Available to backorder	Flange Bolt	£2.94 £2.45
12	HP90042-ZJ1-840 Available to backorder	Bolt	£14.46 £12.05
13	HP90313-ZJ1-840 Available to backorder	Nut	£2.98 £2.48
14	HP93913-25580 Available to backorder		£1.50 £1.25
15	HP94050-06000 In stock	Flange Nut 6Mm	£3.22 £2.68
16	HP95701-0600800 In stock	Flange Bolt 6X8	£1.31 £1.09
