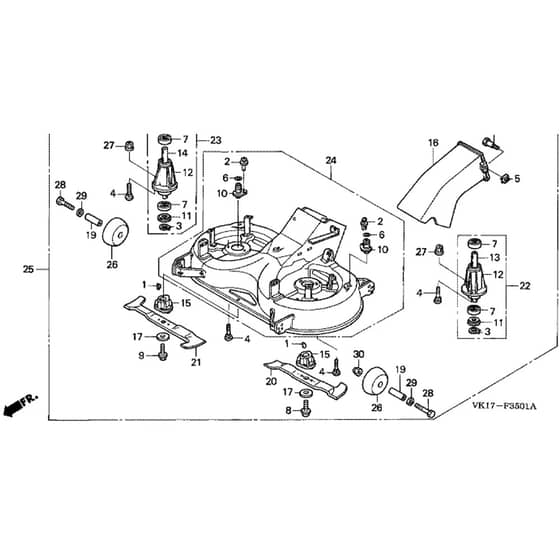

Honda HF2620-HTEA - Cutting Housing Diagram

Description

Honda HF2620-HTEA Ride On Mower Parts Diagram

	Part No.	Details
1	HP80003-Y09-003 In stock	Key	£11.45 £9.54
2	HP80025-Y09-003 Available to backorder	Rivet	£2.42 £2.02
3	HP80052-Y09-003 Available to backorder	External Circlip	£2.17 £1.81
4	HP80103-Y09-003 Available to backorder	Screw	£1.37 £1.14
5	HP80107-VK1-003 Available to backorder	Special Nut 8Mm	£0.95 £0.79
6	HP80133-Y09-003 Available to backorder	O Ring	£5.59 £4.66
7	HP80736-VK1-003 Available to backorder	Bearing	£36.17 £30.14
8	HP80138-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 D	£1.81 £1.51
9	HP80139-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 S	£1.94 £1.62
10	HP80166-Y09-003 Available to backorder	Water Hose Connector	£1.43 £1.19
11	HP80197-Y09-003 Available to backorder	Dust Cover	£4.22 £3.52
12	HP80199-Y09-003 Available to backorder	Flange	£69.48 £57.90
13	HP80212-VK1-003 Available to backorder	Blade Shaft	£63.12 £52.60
14	HP80213-VK1-003 Available to backorder	Blade Shaft	£73.92 £61.60
15	HP80225-Y09-003 In stock	Blade Hub	£9.07 £7.56
16	HP80245-VK1-013 Available to backorder	Chute Assy	£138.24 £115.20
17	HP80279-VK1-003 In stock	Dust Cover	£8.03 £6.69
18	HP80342-VK1-003 Available to backorder	Special Screw 8Mm	£9.85 £8.21
19	HP80355-VK1-003 Available to backorder	Spacer	£4.55 £3.79
20	HP80517-VK1-003 Available to backorder	Blade L H	£54.86 £45.72
21	HP80518-VK1-003 Available to backorder	Blade R H	£54.86 £45.72
22	HP80542-VK1-003 Available to backorder	Bearing Housing L H	£193.20 £161.00
23	HP80543-VK1-003 Available to backorder	Bearing Housing R H	£142.20 £118.50

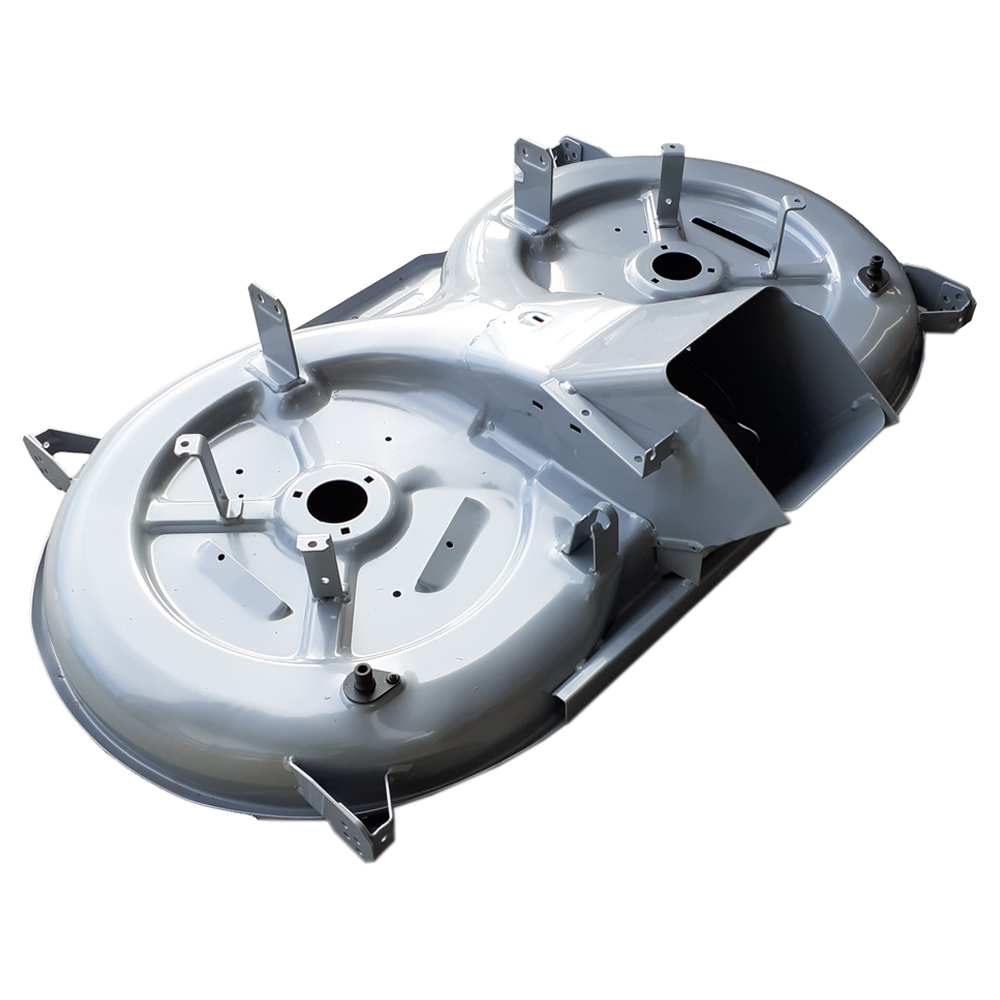

24	HP80568-VK1-013 Available to backorder	Mower Housing	£564.62 £470.52
25	HP80570-VK1-013 Available to backorder	Housing	£1,507.20 £1,256.00
26	HP80576-VK1-003 In stock	Anti Scalp Roller	£13.20 £11.00
27	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
28	HP80063-Y09-003 Available to backorder	Screw	£2.89 £2.41
29	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
30	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
