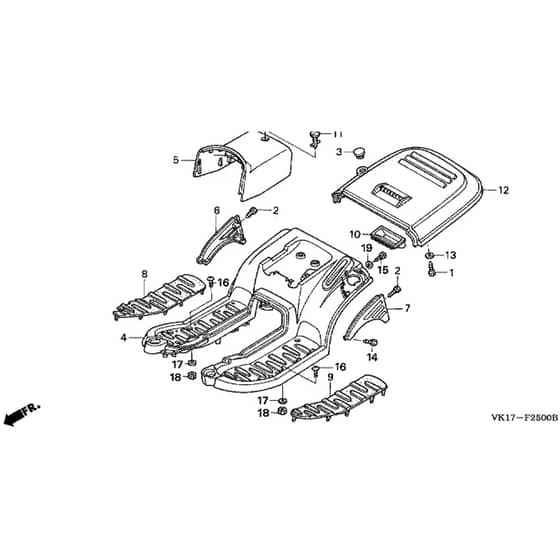

Honda HF2620-HMEA - Platform Diagram

Part No. hf2620_hmea_platform-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2620-HMEA - Platform Diagram

Honda HF2620-HMEA - Platform Diagram

Description

Honda HF2620-HMEA Ride On Mower Parts Diagram

Ref.		Img.	Part No.	Details
	1		HP90103-VP5-003 Available to backorder	Self Tapping Screw 6 X 35		£2.06 £1.72
	2		HP80601-VK1-003 Available to backorder	Screw		£4.16 £3.47
	4		HP63410-VK1-305 Available to backorder	Fender Assy		£309.12 £257.60
	5		HP80251-VK1-013 Available to backorder	Cover		£75.00 £62.50
	6		HP80252-VK1-003 Available to backorder	Cover		£9.08 £7.57
	7		HP80253-VK1-003 Available to backorder	Cover		£9.08 £7.57
	8		HP80261-VK1-003 Available to backorder			£22.24 £18.53
	9		HP80256-VK1-003 Available to backorder			£22.24 £18.53
	10		HP80300-VK1-003 Available to backorder	Grass Bag Grip		£17.60 £14.67
	11		HP80371-VK1-013 Available to backorder	Pin		£15.94 £13.28
	12		HP80538-VK1-003 Available to backorder	Grass Collector Cover		£193.56 £161.30
	13		HP80034-Y09-003 Available to backorder	Washer		£1.03 £0.86
	14		HP90102-VP5-003 Available to backorder	Screw		£2.77 £2.31
	15		HP80083-Y09-003 In stock	Screw		£3.40 £2.83
	16		HP80603-VK1-003 Available to backorder	Screw		£2.76 £2.30
	17		HP80112-VK1-003 Available to backorder	Washer		£1.70 £1.42
	18		HP80008-Y09-003 Available to backorder	Nut		£4.26 £3.55
	19		HP80033-Y09-003 Available to backorder	Washer		£4.03 £3.36

Description

Honda HF2620-HMEA Ride On Mower Parts Diagram
