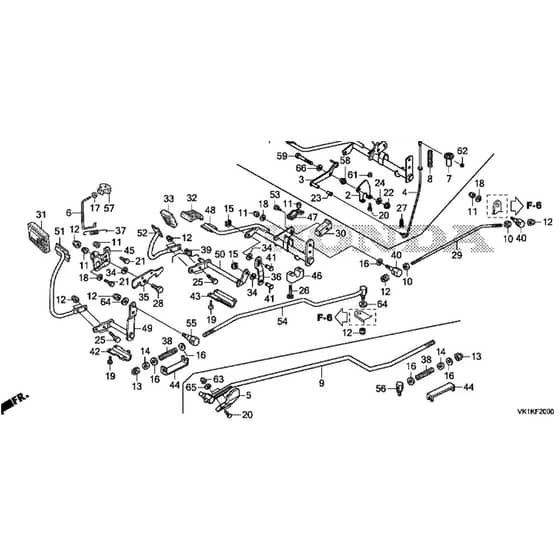

Honda HF2417K5-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP46530-VK1-E81 Available to backorder	Accelerator Pedal	£140.40 £117.00
2	HP46542-VK1-E81 Available to backorder	Ratchet Hold Bracket	£28.84 £24.03
3	HP46543-VK1-E81 Available to backorder	Hold Hook	£151.20 £126.00
4	HP46544-VK1-E81 Available to backorder	Command Rod	£68.04 £56.70
5	HP46546-VK1-E81 Available to backorder	Disengagement Plate	£46.88 £39.07
6	HP80731-VK1-003 Available to backorder	Parking Brake Rod	£23.64 £19.70
7	HP47142-VK1-E81 Available to backorder	Push Rod Knob	£14.96 £12.47
8	HP47143-VK1-E81 Available to backorder	Push Rod Spring	£3.11 £2.59
9	HP47260-VK1-E81 Available to backorder	Foot Brake Rod	£96.72 £80.60
10	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
11	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
12	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
13	HP80011-Y09-003 Available to backorder	Nut M10	£1.12 £0.93
14	HP80017-Y09-003 Available to backorder	Nut	£2.81 £2.34
15	HP80023-Y09-003 In stock	Plate	£2.96 £2.47
16	HP80029-Y09-003 Available to backorder	Washer	£4.03 £3.36
17	HP80033-Y09-003 Available to backorder	Washer	£4.03 £3.36
19	HP80074-Y09-003 Available to backorder	Screw	£4.80 £4.00
20	HP80089-VK1-E81 Available to backorder	Bolt	£3.34 £2.78
21	HP80093-Y09-003 Available to backorder	Screw	£2.76 £2.30
22	HP80094-VK1-E81 Available to backorder	Nut	£7.86 £6.55
23	HP80096-VK1-E81 Available to backorder	Bush	£5.52 £4.60
24	HP80097-VK1-E81 Available to backorder	Washer	£2.36 £1.97
25	HP80146-VK1-003 Available to backorder	Bolt 8 X 25	£1.67 £1.39
26	HP80153-VK1-003 Available to backorder	Special Screw 6 X 40	£2.76 £2.30
27	HP80211-VK1-003 In stock	Lock Pin 12Mm	£0.86 £0.72
28	HP80208-VK1-003 Available to backorder	Special Screw 8 X 20	£4.80 £4.00
29	HP80217-VK1-003 Available to backorder	Rod	£34.01 £28.34
30	HP80233-VK1-003 Available to backorder	Cam	£4.20 £3.50
31	HP80257-VK1-003 Available to backorder	Pedal Rubber	£13.24 £11.03
32	HP80258-VK1-003 Available to backorder	Pedal Rubber	£13.24 £11.03
33	HP80259-VK1-003 Available to backorder	Pedal Rubber	£10.60 £8.83
34	HP80267-Y09-003 Available to backorder	Washer	£4.32 £3.60
35	HP80282-VK1-003 Available to backorder	Hook	£4.66 £3.88
36	HP80296-VK1-003 Available to backorder	Shift Lever	£5.15 £4.29
37	HP80318-VK1-003 Available to backorder	Spring	£2.84 £2.37
38	HP80322-VK1-003 Available to backorder	Spring	£2.68 £2.23
39	HP80327-VK1-003 Available to backorder	Spring	£4.51 £3.76
40	HP80344-VK1-003 Available to backorder	Pin	£5.64 £4.70
41	HP80360-VK1-003 Available to backorder	Pin	£2.98 £2.48
42	HP80363-VK1-003 Available to backorder	Plate	£10.57 £8.81
43	HP80366-VK1-003 Available to backorder	Plate	£7.86 £6.55
44	HP80425-VK1-003 Available to backorder	Clamp	£3.72 £3.10
45	HP80428-VK1-003 Available to backorder	Support	£5.71 £4.76
46	HP80441-VK1-003 Available to backorder	Support	£7.80 £6.50
47	HP80469-VK1-003 Available to backorder	Plate	£2.09 £1.74
49	HP80510-VK1-003 Available to backorder	Rod	£44.77 £37.31
50	HP80511-VK1-003 Available to backorder	Rod	£44.77 £37.31
51	HP80557-VK1-003 Available to backorder	Pedal	£72.12 £60.10
52	HP80559-VK1-003 Available to backorder	Pedal	£48.36 £40.30
53	HP80601-VK1-003 Available to backorder	Screw	£4.16 £3.47
56	HP80623-VK1-E81 Available to backorder	Pin	£13.72 £11.43
57	HP80732-VK1-003 In stock	Parking Brake Knob	£2.53 £2.11
58	HP91572-VK1-E81 Available to backorder	Ratchet Bracket Bush	£9.40 £7.83
59	HP92201-080350A In stock	Bolt	£0.40 £0.33
60	HP93500-04012-0A Available to backorder	Screw	£1.51 £1.26

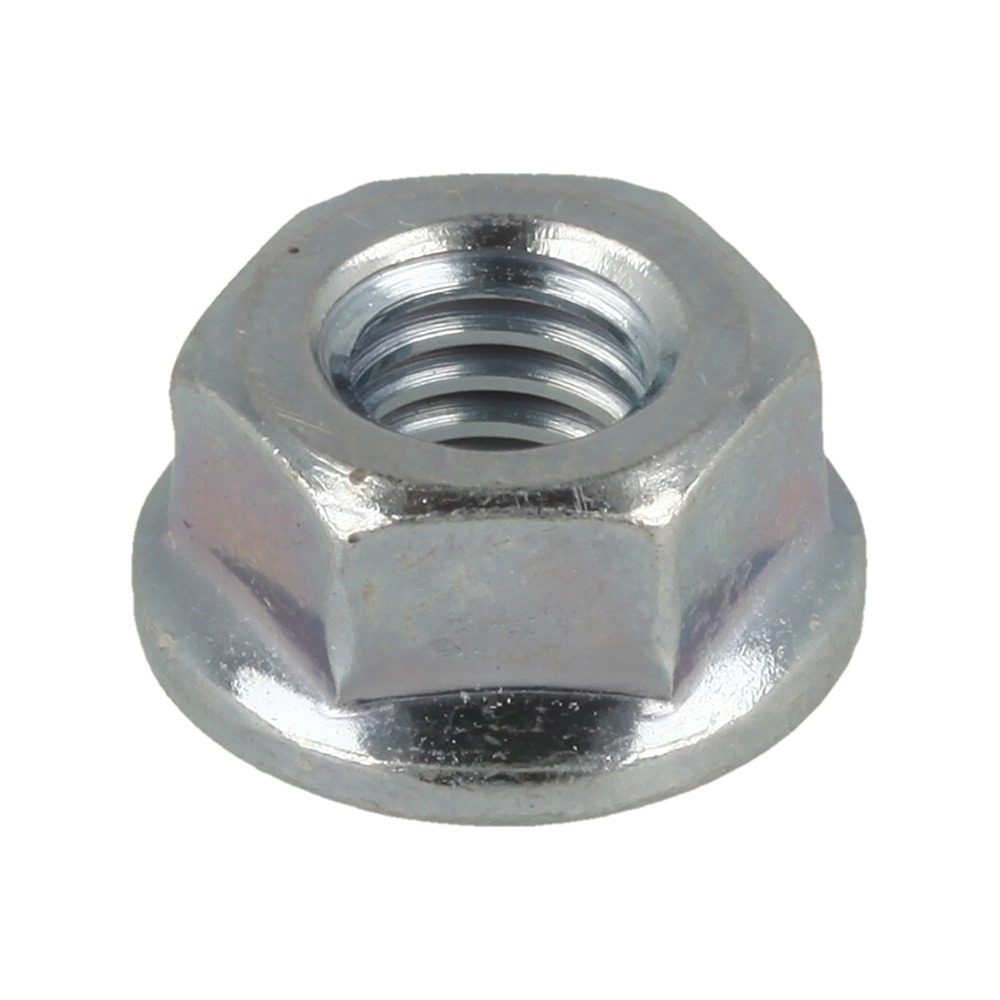

61	HP94050-06080 Available to backorder	Flange Nut 6Mm	£3.14 £2.62
62	HP80012-Y09-003 Available to backorder	Nut	£0.48 £0.40
63	HP80014-Y09-003 Available to backorder	Nut M6	£2.96 £2.47
65	HP80034-Y09-003 Available to backorder	Washer	£1.03 £0.86
66	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
