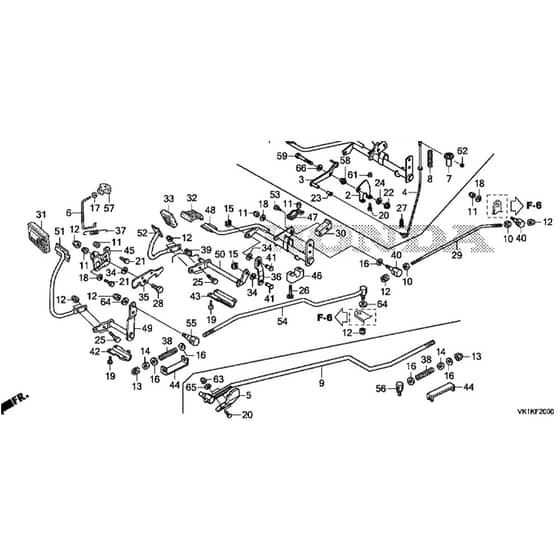

Honda HF2417K5-HME Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP46530-VK1-E81 Available to backorder	Accelerator Pedal	£140.36 £116.97
2	HP46542-VK1-E81 Available to backorder	Ratchet Hold Bracket	£27.88 £23.23
3	HP46543-VK1-E81 Available to backorder	Hold Hook	£151.22 £126.02
4	HP46544-VK1-E81 Available to backorder	Command Rod	£68.04 £56.70
5	HP46546-VK1-E81 Available to backorder	Disengagement Plate	£45.32 £37.77
6	HP80731-VK1-003 Available to backorder	Parking Brake Rod	£23.99 £19.99
7	HP47142-VK1-E81 Available to backorder	Push Rod Knob	£14.46 £12.05
8	HP47143-VK1-E81 Available to backorder	Push Rod Spring	£3.00 £2.50
9	HP47260-VK1-E81 Available to backorder	Foot Brake Rod	£96.70 £80.58
10	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
11	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
12	HP80104-VK1-003 Available to backorder	Nut	£0.92 £0.77
13	HP80011-Y09-003 Available to backorder	Nut M10	£1.08 £0.90
14	HP80017-Y09-003 Available to backorder	Nut	£2.71 £2.26
15	HP80023-Y09-003 In stock	Plate	£2.76 £2.30
16	HP80029-Y09-003 Available to backorder	Washer	£3.96 £3.30
17	HP80033-Y09-003 Available to backorder	Washer	£3.90 £3.25
18	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
19	HP80074-Y09-003 Available to backorder	Screw	£4.87 £4.06
20	HP80089-VK1-E81 Available to backorder	Bolt	£3.22 £2.68
21	HP80093-Y09-003 Available to backorder	Screw	£2.81 £2.34
22	HP80094-VK1-E81 Available to backorder	Nut	£7.60 £6.33
23	HP80096-VK1-E81 Available to backorder	Bush	£5.34 £4.45
24	HP80097-VK1-E81 Available to backorder	Washer	£2.28 £1.90
25	HP80146-VK1-003 Available to backorder	Bolt 8 X 25	£1.69 £1.41
26	HP80153-VK1-003 Available to backorder	Special Screw 6 X 40	£2.81 £2.34
27	HP80211-VK1-003 Available to backorder	Lock Pin 12Mm	£0.80 £0.67
28	HP80208-VK1-003 Available to backorder	Special Screw 8 X 20	£4.87 £4.06
29	HP80217-VK1-003 Available to backorder	Rod	£27.71 £23.09
30	HP80233-VK1-003 Available to backorder	Cam	£4.06 £3.38
31	HP80257-VK1-003 Available to backorder	Pedal Rubber	£12.80 £10.67
32	HP80258-VK1-003 Available to backorder	Pedal Rubber	£12.80 £10.67
33	HP80259-VK1-003 Available to backorder	Pedal Rubber	£10.24 £8.53
34	HP80267-Y09-003 Available to backorder	Washer	£3.40 £2.83
35	HP80282-VK1-003 Available to backorder	Hook	£4.50 £3.75
36	HP80296-VK1-003 Available to backorder	Shift Lever	£4.98 £4.15
37	HP80318-VK1-003 Available to backorder	Spring	£2.89 £2.41
38	HP80322-VK1-003 Available to backorder	Spring	£2.72 £2.27
39	HP80327-VK1-003 Available to backorder	Spring	£4.36 £3.63
40	HP80344-VK1-003 Available to backorder	Pin	£5.72 £4.77
41	HP80360-VK1-003 Available to backorder	Pin	£3.52 £2.93
42	HP80363-VK1-003 Available to backorder	Plate	£10.74 £8.95
43	HP80366-VK1-003 Available to backorder	Plate	£7.60 £6.33
44	HP80425-VK1-003 Available to backorder	Clamp	£3.78 £3.15
45	HP80428-VK1-003 Available to backorder	Support	£5.52 £4.60
46	HP80441-VK1-003 Available to backorder	Support	£7.54 £6.28
47	HP80469-VK1-003 Available to backorder	Plate	£2.11 £1.76
49	HP80510-VK1-003 Available to backorder	Rod	£43.28 £36.07
50	HP80511-VK1-003 Available to backorder	Rod	£43.28 £36.07
51	HP80557-VK1-003 Available to backorder	Pedal	£72.10 £60.08
52	HP80559-VK1-003 Available to backorder	Pedal	£49.09 £40.91
53	HP80601-VK1-003 Available to backorder	Screw	£4.02 £3.35
56	HP80623-VK1-E81 Available to backorder	Pin	£13.26 £11.05
57	HP80732-VK1-003 Available to backorder	Parking Brake Knob	£5.78 £4.82
58	HP91572-VK1-E81 Available to backorder	Ratchet Bracket Bush	£9.08 £7.57
59	HP92201-080350A In stock	Bolt	£0.36 £0.30
60	HP93500-04012-0A Available to backorder	Screw	£1.50 £1.25
61	HP94050-06080 Available to backorder	Flange Nut 6Mm	£3.12 £2.60
62	HP80012-Y09-003 Available to backorder	Nut	£0.48 £0.40
63	HP80014-Y09-003 Available to backorder	Nut M6	£2.86 £2.38
66	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
