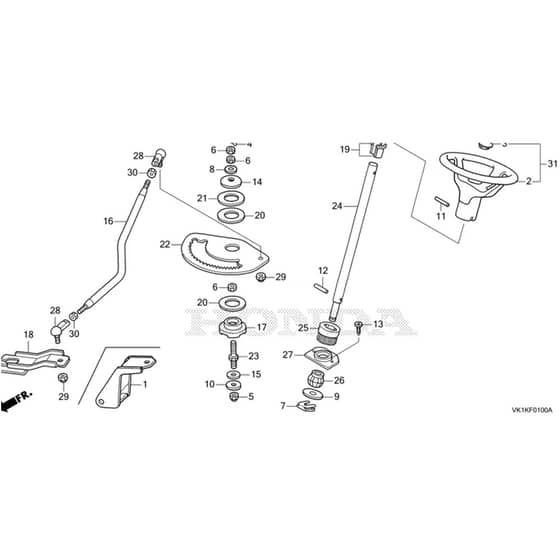

Honda HF2417K5-HBE - Steering Wheel Diagram

Name: Honda HF2417K5-HBE - Steering Wheel Diagram
SKU: hf2417k5_hbe_steering_wheel-group
Price: 0.9 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2417K5-HBE - Steering Wheel Diagram

Description

Honda HF2417K5-HBE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP44190-VK1-G11 Available to backorder	Knuckle Arm	£40.99 £34.16
3	HP53113-VK1-E81 Available to backorder	Wheel Cover	£27.08 £22.57
4	HP80006-Y09-003 Available to backorder	Split Pin	£3.49 £2.91
5	HP80011-Y09-003 Available to backorder	Nut M10	£1.08 £0.90
6	HP80017-Y09-003 Available to backorder	Nut	£2.71 £2.26
7	HP80022-Y09-003 Available to backorder	Plate	£5.16 £4.30
8	HP80029-Y09-003 Available to backorder	Washer	£3.96 £3.30
9	HP80030-Y09-003 Available to backorder	Washer	£3.37 £2.81
10	HP80037-Y09-003 Available to backorder	Washer	£4.34 £3.62
11	HP80055-Y09-003 Available to backorder	Pin	£3.29 £2.74
12	HP80056-Y09-003 Available to backorder	Pin	£4.08 £3.40
13	HP80145-VK1-003 Available to backorder	Self Tapping Screw 5.4 X 14	£2.81 £2.34
14	HP80144-Y09-003 Available to backorder	Elastic Washer	£3.88 £3.23
15	HP80148-Y09-003 Available to backorder	Washer	£5.88 £4.90
16	HP80215-VK1-013 Available to backorder	Steering Rod	£89.88 £74.90
17	HP80171-Y09-003 Available to backorder	Bush	£38.30 £31.92
19	HP80230-VK1-003 Available to backorder	Bush	£4.32 £3.60
20	HP80268-Y09-003 Available to backorder	Washer	£3.96 £3.30
21	HP80269-Y09-003 Available to backorder	Washer	£4.08 £3.40
22	HP80275-Y09-013 Available to backorder	Steering Gear	£63.50 £52.92
23	HP80351-VK1-013 Available to backorder	Pin	£8.88 £7.40
24	HP80361-VK1-003 Available to backorder	Steering Shaft	£99.82 £83.18
25	HP80367-VK1-013 Available to backorder	Pinion	£17.40 £14.50
26	HP80418-VK1-003 Available to backorder		£4.44 £3.70
27	HP80447-VK1-003 Available to backorder		£7.84 £6.53
28	HP80655-VK1-013 In stock	Joint	£45.32 £37.77
29	HP90302-VK1-E11 Available to backorder	Lock Nut 12Mm	£7.60 £6.33
30	HP80728-VK1-003 Available to backorder	Nut	£2.78 £2.32
31	HP53110-VK1-E81 Available to backorder	Steering Wheel	£521.34 £434.45
