Honda HF2417K5-HBE - Mulching Kit, Deflector Diagram

Name: Honda HF2417K5-HBE - Mulching Kit, Deflector Diagram
SKU: hf2417k5_hbe_mulching_kit_deflector-group
Price: 0.72 GBP
Availability: InStock

Part No. hf2417k5_hbe_mulching_kit_deflector-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2417K5-HBE - Mulching Kit, Deflector Diagram

Description

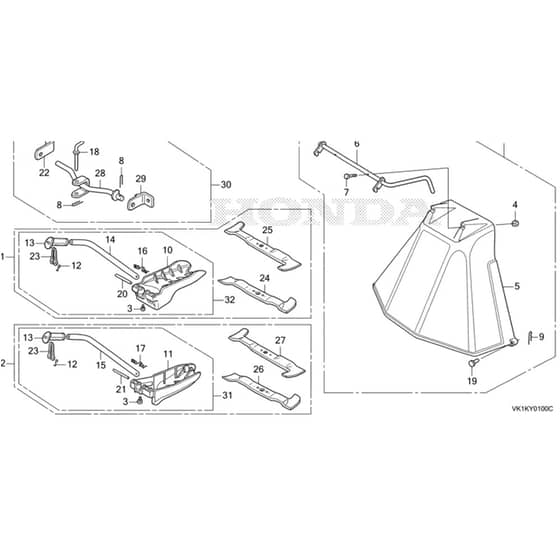

Honda HF2417K5-HBE Ride On Mower Parts Diagram

	Part No.	Details
1	HP06805-VK1-A10 Available to backorder	Mulching Kit	£181.44 £151.20
3	HP80003-VE7-003 Available to backorder	Screw	£2.28 £1.90
4	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
6	HP80093-VK1-003 Available to backorder	Support	£44.95 £37.46
7	HP80122-VK1-003 Available to backorder	Bolt 6 X 45	£1.78 £1.48
8	HP80154-Y09-003 Available to backorder	Split Pin	£3.61 £3.01
9	HP80211-VK1-003 In stock	Lock Pin 12Mm	£0.86 £0.72
10	HP80265-VK1-003 Available to backorder	Deflector	£36.79 £30.66
12	HP80281-VK1-003 Available to backorder	Hook	£1.20 £1.00
13	HP80287-VK1-003 Available to backorder	Handle Grip	£3.98 £3.32
14	HP80298-VK1-003 Available to backorder	Handle	£30.50 £25.42
16	HP80324-VK1-003 Available to backorder	Spring	£6.23 £5.19
18	HP80336-VK1-003 Available to backorder	Pin	£11.93 £9.94
19	HP80337-VK1-003 In stock	Pin	£2.99 £2.49
20	HP80356-VK1-003 Available to backorder	Pin	£2.75 £2.29
22	HP80423-VK1-003 Available to backorder	Hitch Assy L H	£8.72 £7.27
23	HP80454-VK1-003 Available to backorder	Band	£13.55 £11.29
24	HP80515-VK1-003 In stock	Blade L H	£27.89 £23.24
25	HP80516-VK1-003 In stock	Blade R H	£27.89 £23.24
28	HP80525-VK1-003 Available to backorder	Rod	£60.86 £50.72
29	HP80577-VK1-003 Available to backorder	Hitch Assy R H	£16.52 £13.77
30	HP80596-VK1-003 Available to backorder	Hitch Assy	£76.68 £63.90
32	HP80598-VK1-003 Available to backorder	Plug	£83.64 £69.70
33	HP80609-VK1-003 Available to backorder	Ejection Guard Assy	£120.12 £100.10
