Honda HF2417K5-HBE - Fuel Tank Diagram

Description

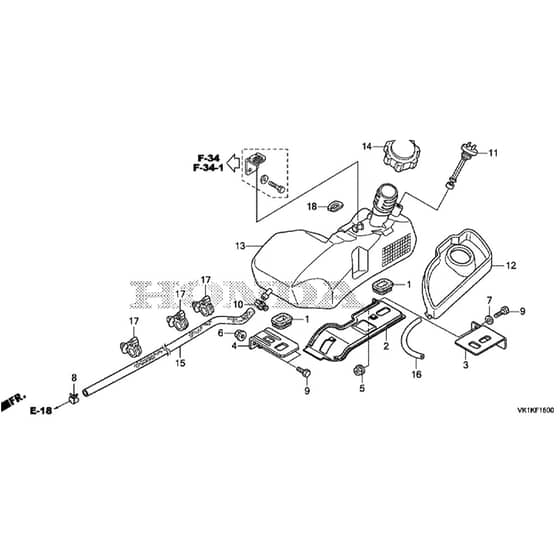

Honda HF2417K5-HBE Ride On Mower Parts Diagram

	Part No.	Details
1	HP17533-VK1-F01 Available to backorder	Tank Mounting Rubber	£12.80 £10.67
4	HP17556-VK1-G11 Available to backorder	Tank Bracket	£14.76 £12.30
5	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
6	HP80014-Y09-003 Available to backorder	Nut M6	£2.86 £2.38
7	HP80027-Y09-003 Available to backorder	Washer	£4.42 £3.68
8	HP80120-Y09-003 Available to backorder	Clamp	£4.66 £3.88
9	HP80142-VK1-003 Available to backorder	Bolt 6 X 18	£1.18 £0.98
10	HP80185-VK1-003 Available to backorder	Tube Clip	£4.66 £3.88
11	HP80288-VK1-003 Available to backorder	Fuel Meter Assy	£100.78 £83.98
12	HP80380-VK1-003 Available to backorder	Fuel Tank Protector	£11.22 £9.35
13	HP80416-VK1-013 Available to backorder	Fuel Tank	£67.14 £55.95
14	HP80449-VK1-013 In stock	Cap	£12.84 £10.70
15	HP80461-VK1-003 Available to backorder	Fuel Pipe	£22.38 £18.65
16	HP80606-VK1-003 Available to backorder	Drain Tube	£17.02 £14.18
17	HP80613-VK1-003 Available to backorder	Fuel Tube Clip	£3.28 £2.73
18	HP80644-VK1-003 Available to backorder	Grommet	£2.80 £2.33
