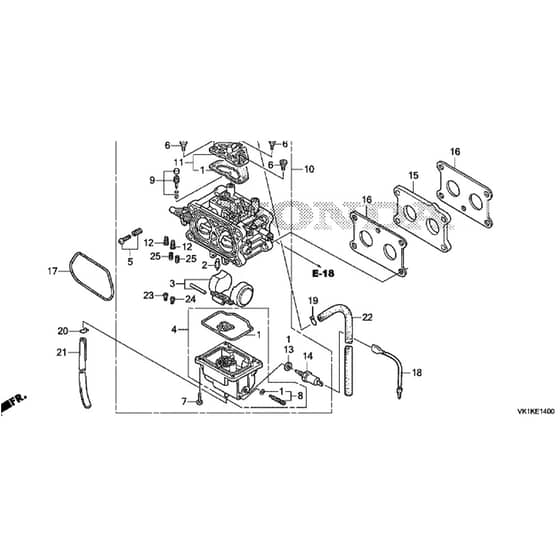

Honda HF2417K5-HBE Ride On Mower Parts Diagram

	Part No.	Details
1	HP16010-Z0A-L32 Available to backorder		£24.43 £20.36
2	HP16011-Z0A-004 Available to backorder	Float Valve	£28.32 £23.60
3	HP16013-Z0A-004 Available to backorder	Float Set	£27.49 £22.91
4	HP16015-Z0A-802 Available to backorder	Float Set	£67.56 £56.30
5	HP16016-Z0A-004 Available to backorder		£14.17 £11.81
6	HP16017-Z0A-801 Available to backorder		£5.59 £4.66
7	HP16018-Z0A-801 Available to backorder	Screw	£1.57 £1.31
8	HP16024-Z0A-004 Available to backorder	Drain Screw Set	£14.17 £11.81
9	HP16028-Z0A-L32 Available to backorder		£19.20 £16.00
10	HP16100-Z0A-L32 In stock	Carburetor Assy	£283.32 £236.10
11	HP16139-Z0A-L32 Available to backorder	Cover Set Air Vent	£48.79 £40.66
12	HP16168-Z0A-004 In stock	Cap	£6.46 £5.38
13	HP16178-Z0A-802 Available to backorder	Gasket	£6.76 £5.63
14	HP16200-Z0A-802 Available to backorder	Solenoid Valve Assy	£69.72 £58.10
15	HP16211-Z0A-000 Available to backorder	Carburettor Insulator	£12.40 £10.33
16	HP16212-Z0A-000 In stock	Insulator Gasket	£5.40 £4.50
17	HP17228-Z0A-003 In stock	Air Filter Gasket	£3.47 £2.89
18	HP32105-Z0A-000 Available to backorder	Harness Assy	£12.02 £10.02
19	HP95002-02080 In stock	Tube Clip	£1.19 £0.99
20	HP95002-02650 Available to backorder	Tube Clip	£1.06 £0.88
23	HP99131-Z0A-0920 Available to backorder		£26.75 £22.29
23	HP99131-Z0A-0870 Available to backorder	Jet	£25.42 £21.18
23	HP99131-Z0A-0900 Available to backorder	Main Jet	£25.42 £21.18
24	HP99131-Z0A-0880 Available to backorder	Main Jet	£28.01 £23.34
24	HP99131-Z0A-0910 Available to backorder	Main Jet	£28.01 £23.34
24	HP99131-Z0A-0930 Available to backorder		£26.75 £22.29
25	HP99135-Z0A-0370 Available to backorder		£28.40 £23.67
