Honda HF2417K5-HBE - Blades Control Belt Diagram

Description

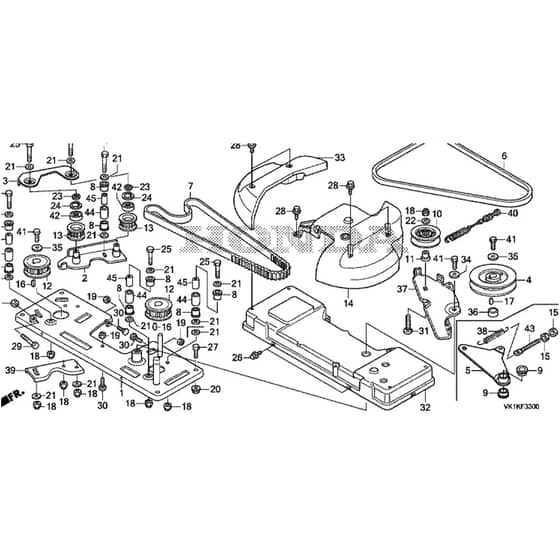

Honda HF2417K5-HBE Ride On Mower Parts Diagram

	Part No.	Details
1	HP70110-VK1-G11 Available to backorder	Frame	£183.36 £152.80
2	HP70141-VK1-E11 Available to backorder	Support Plate	£93.72 £78.10
3	HP70143-VK1-E11 Available to backorder	Support Frame Plate	£15.85 £13.21
4	HP80385-VK1-003 Available to backorder	Pulley	£92.16 £76.80
6	HP80480-VK1-003 In stock	Belt	£72.62 £60.52
7	HP80481-VK1-003 Available to backorder	Belt	£141.60 £118.00
8	HP76186-VK1-E11 In stock	Flange Bush	£4.28 £3.57
10	HP76195-VK1-F01 Available to backorder	Idler Pulley	£64.56 £53.80
11	HP76197-VK1-F01 Available to backorder	Idler Pulley Spacer	£20.74 £17.28
12	HP76240-VK1-E11 In stock	Timing Pulley Comp	£31.61 £26.34
13	HP76245-VK1-E11 Available to backorder	Tensioner Pulley Comp	£29.92 £24.93
14	HP76251-VK1-E11 Available to backorder	Deck Pulley Cover	£24.84 £20.70
15	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
16	HP80005-Y09-003 In stock	Key	£1.90 £1.58
18	HP80104-VK1-003 In stock	Nut	£0.98 £0.82
19	HP80014-Y09-003 Available to backorder	Nut M6	£2.96 £2.47
20	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
22	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
23	HP80051-Y09-003 Available to backorder	Snap Ring	£1.80 £1.50
24	HP80053-Y09-003 Available to backorder	Snap Ring	£1.80 £1.50
28	HP80083-Y09-003 In stock	Special Screw	£3.40 £2.83
25	HP80061-Y09-003 In stock	Screw	£6.40 £5.33
26	HP80079-Y09-003 In stock	Screw	£0.66 £0.55
27	HP80099-Y09-003 Available to backorder	Screw	£3.35 £2.79
29	HP80148-VK1-003 Available to backorder	Bolt 8 X 60	£1.31 £1.09
30	HP80151-VK1-003 Available to backorder	Special Screw 6 X 16	£3.40 £2.83
31	HP80154-VK1-003 Available to backorder	Special Screw 8 X 30	£3.20 £2.67
32	HP80234-VK1-003 Available to backorder	Case	£30.86 £25.72
33	HP80238-VK1-013 Available to backorder	Case	£19.12 £15.93
34	HP80265-Y09-003 In stock	Washer	£4.09 £3.41
36	HP80268-VK1-003 In stock	Spacer	£4.18 £3.48
37	HP80290-VK1-003 Available to backorder	Brake Lever	£20.63 £17.19
39	HP80398-VK1-003 Available to backorder	Stiffener Frame	£11.04 £9.20
40	HP80701-VK1-003 Available to backorder	Cable	£38.11 £31.76
41	HP80734-VK1-003 Available to backorder	Bolt	£2.20 £1.83
42	HP80737-VK1-003 In stock	Bearing	£28.33 £23.61
44	HP91556-VK1-G11 Available to backorder	Collar	£18.17 £15.14
45	HP91557-VK1-E11 Available to backorder	Collar	£9.78 £8.15
