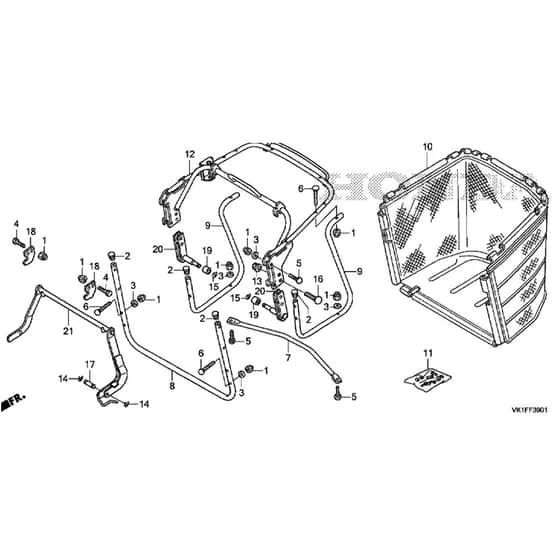

Honda HF2417K4-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
2	HP53116-VP5-003 Available to backorder	Handle Cap	£3.28 £2.73
3	HP80027-Y09-003 Available to backorder	Washer	£4.42 £3.68
4	HP80603-VK1-003 Available to backorder	Screw	£2.81 £2.34
5	HP80152-VK1-003 Available to backorder	Screw	£0.91 £0.76
6	HP80153-VK1-003 Available to backorder	Special Screw 6 X 40	£2.81 £2.34
7	HP80401-VK1-003 Available to backorder	Frame Stiffener	£23.74 £19.78
8	HP80450-VK1-003 Available to backorder	Front Frame	£63.12 £52.60
9	HP80451-VK1-003 Available to backorder	Side Frame	£63.12 £52.60
10	HP81320-VK1-A11 Available to backorder	Grass Bag	£175.00 £145.83
11	HP80540-VK1-003 Available to backorder	Grass Bag Screw Set	£65.48 £54.57
12	HP81330-VK1-F01 Available to backorder	Bag Frame	£451.70 £376.42
13	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
14	HP80102-VK1-003 Available to backorder	Snap Ring	£0.62 £0.52
15	HP80103-VK1-003 Available to backorder	Snap Ring	£0.76 £0.63
16	HP80154-VK1-003 Available to backorder	Special Screw 8 X 30	£3.37 £2.81
17	HP80359-VK1-003 Available to backorder	Pin	£3.16 £2.63
18	HP80431-VK1-003 Available to backorder	Plate	£4.73 £3.94
19	HP80404-VK1-003 In stock	Bush	£13.70 £11.42
20	HP81332-VK1-G21 Available to backorder	Grass Bag Lever	£39.37 £32.81
21	HP81341-VK1-G21 Available to backorder	Grass Bag Joint	£338.88 £282.40
