Honda HF2417K4-HBE - Mulching Kit, Deflector Diagram

Description

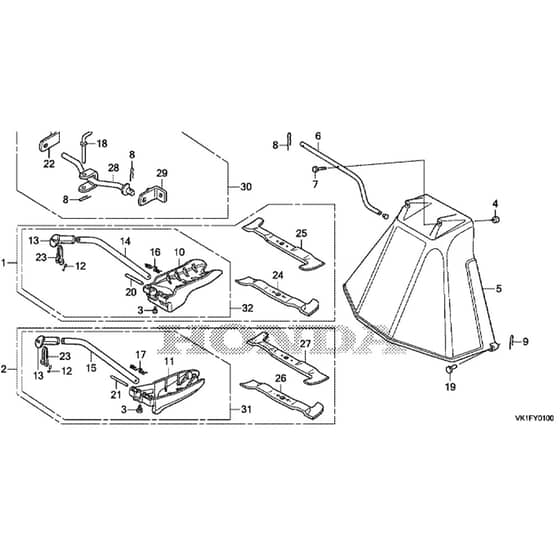

Honda HF2417K4-HBE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP06805-VK1-A10 Available to backorder	Mulching Kit	£181.40 £151.17
3	HP80003-VE7-003 Available to backorder	Screw	£2.32 £1.93
4	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
5	HP80609-VK1-003 Available to backorder	Ejection Guard Assy	£115.20 £96.00
6	HP80093-VK1-003 Available to backorder	Support	£45.62 £38.02
7	HP80122-VK1-003 Available to backorder	Bolt 6 X 45	£1.80 £1.50
8	HP80154-Y09-003 Available to backorder	Split Pin	£3.66 £3.05
9	HP80211-VK1-003 Available to backorder	Lock Pin 12Mm	£0.80 £0.67
10	HP80265-VK1-003 Available to backorder	Deflector	£37.34 £31.12
12	HP80281-VK1-003 Available to backorder	Hook	£1.39 £1.16
13	HP80287-VK1-003 Available to backorder	Handle Grip	£4.04 £3.37
14	HP80298-VK1-003 Available to backorder	Handle	£30.96 £25.80
16	HP80324-VK1-003 Available to backorder	Spring	£6.31 £5.26
18	HP80336-VK1-003 Available to backorder	Pin	£12.11 £10.09
19	HP80337-VK1-003 Available to backorder	Pin	£2.78 £2.32
20	HP80356-VK1-003 Available to backorder	Pin	£2.78 £2.32
22	HP80423-VK1-003 Available to backorder	Hitch Assy L H	£8.86 £7.38
23	HP80454-VK1-003 Available to backorder	Band	£13.55 £11.29
24	HP80515-VK1-003 Available to backorder	Blade L H	£30.97 £25.81
25	HP80516-VK1-003 In stock	Blade R H	£30.97 £25.81
28	HP80525-VK1-003 Available to backorder	Rod	£59.28 £49.40
29	HP80577-VK1-003 Available to backorder	Hitch Assy R H	£16.76 £13.97
30	HP80596-VK1-003 Available to backorder	Hitch Assy	£76.64 £63.87
32	HP80598-VK1-003 Available to backorder	Plug	£84.36 £70.30
