Honda HF2417K3-HTE - Change Lever Diagram

Name: Honda HF2417K3-HTE - Change Lever Diagram
SKU: hf2417k3_hte_change_lever-group
Price: 2.47 GBP
Availability: InStock

Part No. hf2417k3_hte_change_lever-group

Description

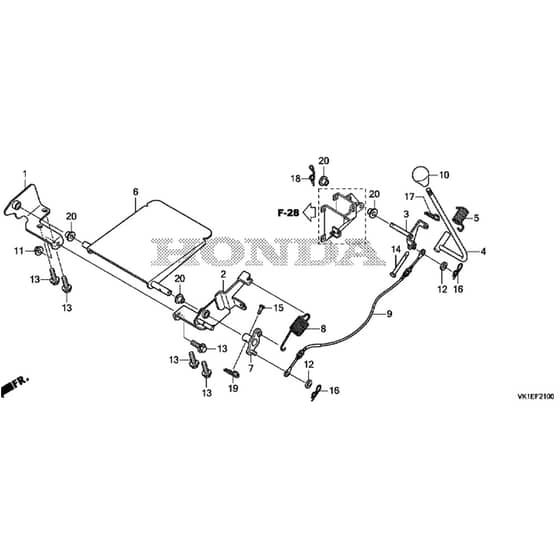

Honda HF2417K3-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP54141-VK1-G11 Available to backorder	Shutter Bracket	£42.29 £35.24
2	HP54142-VK1-G11 Available to backorder	Shutter Bracket	£64.92 £54.10
3	HP54150-VK1-G11 Available to backorder	Change Plate Comp	£74.28 £61.90
4	HP54160-VK1-G11 Available to backorder	Change Lever	£69.48 £57.90
5	HP54413-VK1-G11 In stock	Change Lever Return Spring	Was £6.88 £5.73 Special Price £4.96 £4.13
6	HP54560-VK1-G11 Available to backorder	Shutter Shaft Comp	£70.56 £58.80
7	HP54570-VK1-G11 Available to backorder	Lever Link Comp	£56.52 £47.10
8	HP54575-VK1-G11 Available to backorder	Return Spring	£10.09 £8.41
9	HP54630-VK1-G11 Available to backorder	Change Cable Comp	£48.64 £40.53
10	HP76272-VK1-G11 In stock	Shutter Lever Grip	£5.96 £4.97
11	HP80014-Y09-003 Available to backorder	Nut M6	£2.96 £2.47
12	HP80027-Y09-003 Available to backorder	Washer	£4.36 £3.63
12	HP80043-Y09-003 Available to backorder	Grower.	£3.32 £2.77
13	HP80682-VK1-003 Available to backorder	Screw	£3.06 £2.55
14	HP90751-VK1-G11 Available to backorder	Lever Pin	£21.40 £17.83
15	HP90752-VK1-G11 Available to backorder	Shutter Pin	£9.72 £8.10
16	HP90759-VK1-G11 Available to backorder	Lock Pin	£9.23 £7.69
17	HP90760-VK1-G11 Available to backorder	Lock Pin	£9.23 £7.69
18	HP80262-VK1-003 In stock	Lock Pin 10Mm	£2.99 £2.49
19	HP90762-VK1-G11 Available to backorder	Lock Pin	£6.00 £5.00
20	HP91571-VK1-G11 Available to backorder	Shutter Bush	£3.66 £3.05
