Honda HF2417K3-HBE - Oil Pan Diagram

Honda HF2417K3-HBE - Oil Pan Diagram

Description

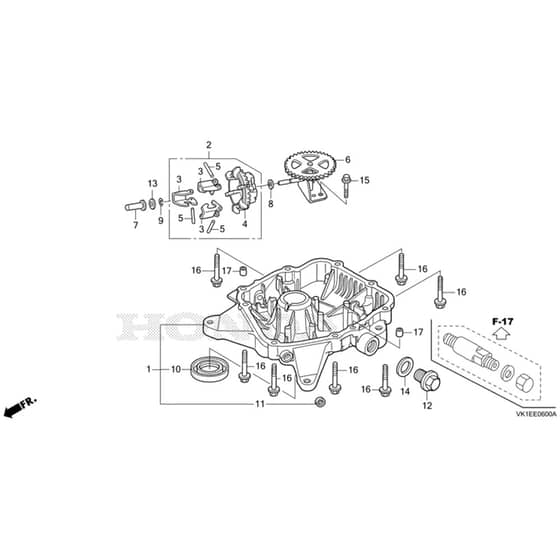

Honda HF2417K3-HBE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HP11300-Z0A-010 Available to backorder	Crankcase Assy		£194.04 £161.70
	2		HP16510-Z0A-000 Available to backorder	Governor Assy		£29.29 £24.41
	3		HP16511-Z0A-000 Available to backorder			£2.99 £2.49
	4		HP16512-Z0A-000 Available to backorder			£17.33 £14.44
	5		HP16513-ZE2-000 Available to backorder	Governor Weight Pin		£1.42 £1.18
	6		HP16520-Z0A-000 Available to backorder			£52.32 £43.60
	7		HP16531-Z0A-000 Available to backorder	Governor Slider		£3.13 £2.61
	8		HP90473-147-000 Available to backorder	Washer 6X14		£3.73 £3.11
	9		HP90602-ZE1-000 Available to backorder	Governor Holder Clip		£3.70 £3.08
	10		HP91202-Z0A-003 In stock	Oil Seal 31 X 50 X 8		£10.66 £8.88
	11		HP91206-333-003 Available to backorder	Oil Seal 10X16X4.5		£5.90 £4.92
	12		HP92800-20000 Available to backorder			£4.84 £4.03
	13		HP94101-06800 Available to backorder	Plain Washer 6Mm		£0.96 £0.80
	14		HP94109-20000 Available to backorder	Washer		£1.19 £0.99
	15		HP957001-061600 Available to backorder	Bolt		£1.08 £0.90
	16		HP95701-08040-00 Available to backorder			£2.18 £1.82
	17		HP94301-08140 Available to backorder	Dowel Pin 8 X 14		£3.04 £2.53

Description

Honda HF2417K3-HBE Ride On Mower Parts Diagram
