Honda HF2417K3-HBE - Cutting Plate Lifting Diagram

Name: Honda HF2417K3-HBE - Cutting Plate Lifting Diagram
SKU: hf2417k3_hbe_cutting_plate_lifting-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2417K3-HBE - Cutting Plate Lifting Diagram

Description

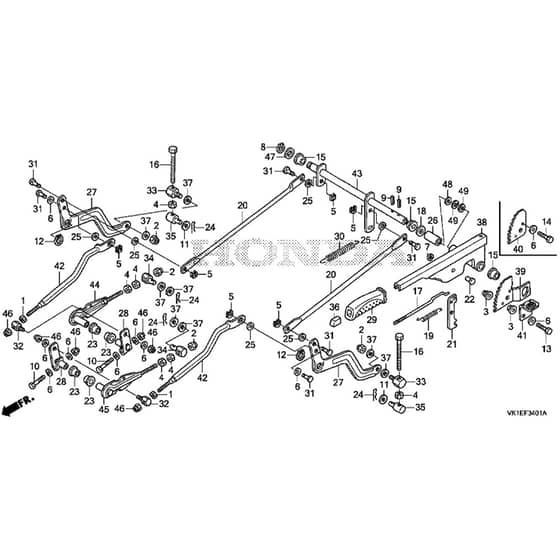

Honda HF2417K3-HBE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP80011-Y09-003 Available to backorder	Nut M10	£1.08 £0.90
3	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
4	HP80017-Y09-003 Available to backorder	Nut	£2.71 £2.26
5	HP80023-Y09-003 In stock	Plate	£2.76 £2.30
7	HP80049-Y09-003 Available to backorder	Clip	£0.64 £0.53
8	HP80052-Y09-003 Available to backorder	External Circlip	£1.78 £1.48
9	HP80054-Y09-003 Available to backorder	Pin	£3.49 £2.91
10	HP80061-Y09-003 Available to backorder	Screw	£5.96 £4.97
11	HP80113-VK1-003 Available to backorder	Plain Washer 10Mm	£1.66 £1.38
12	HP80121-VK1-003 Available to backorder	External Circlip 19Mm	£2.23 £1.86
13	HP80146-VK1-003 Available to backorder	Bolt 8 X 25	£1.69 £1.41
15	HP80140-Y09-003 Available to backorder	Bush	£6.18 £5.15
16	HP80149-VK1-003 Available to backorder	Bolt 10 X 100	£2.60 £2.17
17	HP80160-Y09-003 Available to backorder	Rod	£13.79 £11.49
18	HP80209-VK1-003 Available to backorder	Plain Washer 20Mm	£2.36 £1.97
19	HPCG254-302-08H1 Available to backorder	Spring	£4.14 £3.45
20	HP80216-VK1-003 Available to backorder	Connecting Rod	£16.51 £13.76
21	HP80226-Y09-003 Available to backorder	Dog	£12.68 £10.57
22	HP80227-Y09-003 Available to backorder	Pin	£9.70 £8.08
23	HP80231-VK1-003 Available to backorder	Bush	£3.26 £2.72
24	HP80262-VK1-003 In stock	Lock Pin 10Mm	£2.78 £2.32
25	HP80267-Y09-003 Available to backorder	Washer	£3.40 £2.83
26	HP80274-VK1-003 Available to backorder	Spacer	£8.28 £6.90
27	HP80292-VK1-003 Available to backorder	Lever	£15.44 £12.87
28	HP80294-VK1-003 Available to backorder	Shift Lever	£6.26 £5.22
29	HP80302-VK1-003 Available to backorder	Knob	£5.70 £4.75
30	HP80319-VK1-003 Available to backorder	Spring	£6.13 £5.11
31	HP80343-VK1-003 Available to backorder	Pin	£3.79 £3.16
32	HP80345-VK1-003 Available to backorder	Pin	£6.90 £5.75
33	HP80346-VK1-003 Available to backorder	Pin	£8.02 £6.68
34	HP80353-VK1-003 Available to backorder	Pin	£12.34 £10.28
35	HP80354-VK1-003 In stock	Pin	£13.32 £11.10
36	HP80397-VK1-003 Available to backorder	Button	£5.05 £4.21
37	HP80402-VK1-003 Available to backorder	Plain Washer 10Mm	£1.66 £1.38
38	HP80414-Y09-003 Available to backorder	Lever	£54.78 £45.65
39	HP80417-VK1-003 Available to backorder	Steering Shaft	£15.49 £12.91
41	HP80446-VK1-003 Available to backorder	Support	£2.78 £2.32
42	HP80504-VK1-003 In stock	Connecting Rod	£23.04 £19.20
43	HP80505-VK1-013 Available to backorder	Rod	£88.44 £73.70
44	HP80547-VK1-003 Available to backorder	Lever	£30.48 £25.40
45	HP80548-VK1-003 In stock	Lever	£36.67 £30.56
46	HP80104-VK1-003 Available to backorder	Nut	£0.92 £0.77
47	HP80032-Y09-003 Available to backorder	Washer	£4.42 £3.68
