Honda HF2417K2-HTEA - Grass Catcher Frame Diagram

Description

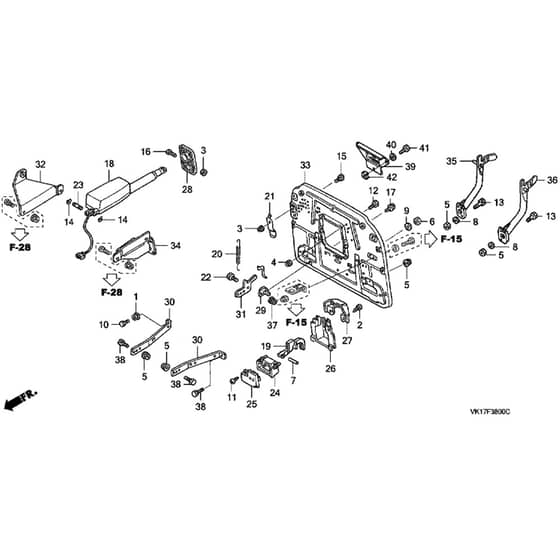

Honda HF2417K2-HTEA Ride On Mower Parts Diagram

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP90102-VP5-003 Available to backorder	Self Tapping Screw 4.8 X 19	£2.77 £2.31
3	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.73 £0.61
4	HP80014-Y09-003 Available to backorder	Nut M6	£2.96 £2.47
5	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
6	HP80017-Y09-003 Available to backorder	Nut	£2.81 £2.34
7	HP80021-Y09-003 Available to backorder	Pin	£3.44 £2.87
8	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
9	HP80046-Y09-003 Available to backorder	Washer	£3.35 £2.79
10	HP80058-Y09-003 Available to backorder	Screw	£2.76 £2.30
11	HP80079-Y09-003 In stock	Screw	£0.66 £0.55
12	HP80094-Y09-003 Available to backorder	Screw	£1.67 £1.39
13	HP80101-Y09-003 In stock	Screw	£5.56 £4.63
14	HP80102-VK1-003 Available to backorder	Snap Ring	£0.61 £0.51
15	HP80090-Y09-003 Available to backorder	Screw	£2.77 £2.31
16	HP80128-VK1-003 Available to backorder	Socket Head Bolt 5 X 20	£0.48 £0.40
17	HP80132-VK1-003 Available to backorder	Self Tapping Screw 6 X 16	£2.76 £2.30
18	HP80182-VK1-003 Available to backorder	Actuator	£1,100.40 £917.00
19	HP80206-Y09-003 Available to backorder	Lever	£11.29 £9.41
20	HP80317-VK1-003 In stock	Spring	£5.47 £4.56
21	HP80329-VK1-013 Available to backorder	Spring	£3.59 £2.99
22	HP80358-VK1-003 Available to backorder	Bolt	£2.57 £2.14
23	HP80359-VK1-003 Available to backorder	Pin	£3.11 £2.59
24	HP80375-VK1-003 Available to backorder	Switch Protector	£5.52 £4.60
25	HP80376-VK1-003 Available to backorder	Cover	£3.71 £3.09
26	HP80377-VK1-003 Available to backorder	Switch Protector	£1.87 £1.56
27	HP80378-VK1-003 Available to backorder	Cover	£1.87 £1.56
28	HP80381-VK1-003 Available to backorder	Actuator Protector	£6.12 £5.10
29	HP80421-VK1-003 Available to backorder	Bracket	£8.74 £7.28
30	HP80424-VK1-003 Available to backorder	Frame Stiffener	£11.74 £9.78
31	HP80430-VK1-003 Available to backorder	Clamp	£6.71 £5.59
32	HP80445-VK1-003 Available to backorder	Actuator Support	£26.60 £22.17
33	HP50320-VK1-A20 Available to backorder	Frame	£284.40 £237.00
34	HP80572-VK1-003 Available to backorder	Actuator Stay	£32.74 £27.28
35	HP80582-VK1-003 Available to backorder	Support	£127.80 £106.50
36	HP80583-VK1-003 Available to backorder	Support	£127.80 £106.50
37	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
38	HP80099-Y09-003 Available to backorder	Screw	£3.35 £2.79
39	HP35351-VK1-A10 Available to backorder	Grass Bag Switch Plate	£60.71 £50.59
40	HP80027-Y09-003 Available to backorder	Washer	£4.36 £3.63
41	HP80093-Y09-003 Available to backorder	Screw	£2.76 £2.30
42	HP80108-VK1-003 Available to backorder	Square Nut 6Mm	£0.68 £0.57
