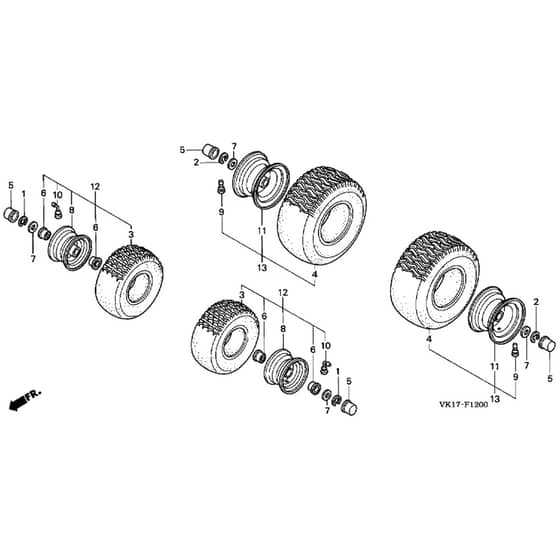

Honda HF2417K2-HTE - Wheel Diagram

Description

Honda HF2417K2-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP80001-Y09-003 Available to backorder	Snap Ring	£2.28 £1.90
2	HP80002-Y09-003 Available to backorder	Snap Ring	£2.30 £1.92
3	HP80617-VK1-003 Available to backorder	Tyre	£62.04 £51.70
4	HP80619-VK1-003C4 Available to backorder	Tyre	£186.02 £155.02
5	HP80260-VK1-003 Available to backorder	Wheel Cap	£2.86 £2.38
6	HP80264-VK1-003 Available to backorder	Bearing	£20.89 £17.41
7	HP80264-Y09-003 Available to backorder	Washer	£3.98 £3.32
8	HP80392-Y09-003 Available to backorder	Wheel	£121.68 £101.40
9	HP80464-VK1-003 Available to backorder	Valve	£13.93 £11.61
10	HP80465-VK1-003 Available to backorder	Valve	£12.60 £10.50
11	HP80514-VK1-003 Available to backorder	Wheel	£121.68 £101.40
12	HP80618-VK1-003C2 Available to backorder		£203.40 £169.50
13	HP80620-VK1-003C4 Available to backorder	Rear Wheel	£202.80 £169.00
