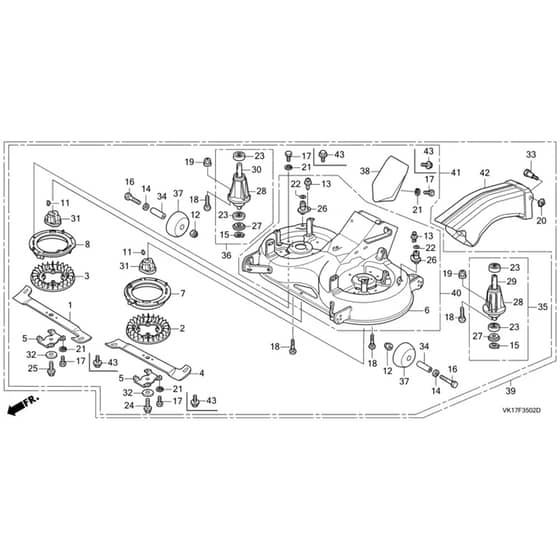

Honda HF2417K2-HME Ride On Mower Parts Diagram

	Part No.	Details
1	HP72511-VK1-A11 In stock	Blade R H	£52.08 £43.40
2	HP72518-VK1-A10 In stock	Discharge Fan Assy	£63.74 £53.12
3	HP72519-VK1-A10 In stock	Discharge Fan Assy	£63.74 £53.12
4	HP72531-VK1-A11 In stock	Blade L H	£52.08 £43.40
5	HP72621-VK1-A10 Available to backorder	Blade Holder	£12.20 £10.17
7	HP76165-VK1-A11 Available to backorder	Fan Guide	£59.05 £49.21
8	HP76166-VK1-A11 Available to backorder	Fan Guide	£57.04 £47.53
11	HP80003-Y09-003 In stock	Key	£11.45 £9.54
12	HP80016-Y09-003 In stock	Nut	£9.25 £7.71
13	HP80025-Y09-003 Available to backorder	Rivet	£2.42 £2.02
14	HP80035-Y09-003 In stock	Washer	£1.79 £1.49
15	HP80052-Y09-003 Available to backorder	External Circlip	£2.17 £1.81
16	HP80063-Y09-003 Available to backorder	Screw	£2.89 £2.41
18	HP80103-Y09-003 Available to backorder	Screw	£1.37 £1.14
19	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
20	HP80107-VK1-003 Available to backorder	Special Nut 8Mm	£0.95 £0.79
22	HP80133-Y09-003 Available to backorder	O Ring	£5.59 £4.66
23	HP80736-VK1-003 Available to backorder	Bearing	£36.17 £30.14
24	HP80138-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 D	£1.81 £1.51
25	HP80139-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 S	£1.94 £1.62
26	HP80166-Y09-003 Available to backorder	Water Hose Connector	£1.43 £1.19
27	HP80197-Y09-003 Available to backorder	Dust Cover	£4.22 £3.52
28	HP80199-Y09-003 Available to backorder	Flange	£69.48 £57.90
29	HP80212-VK1-003 Available to backorder	Blade Shaft	£63.12 £52.60
30	HP80213-VK1-003 Available to backorder	Blade Shaft	£73.92 £61.60
31	HP80225-Y09-003 In stock	Blade Hub	£9.07 £7.56
32	HP80279-VK1-003 In stock	Dust Cover	£8.03 £6.69
33	HP80342-VK1-003 Available to backorder	Special Screw 8Mm	£9.85 £8.21
34	HP80355-VK1-003 Available to backorder	Spacer	£4.55 £3.79
35	HP80542-VK1-003 Available to backorder	Bearing Housing L H	£193.20 £161.00
36	HP80543-VK1-003 Available to backorder	Bearing Housing R H	£142.20 £118.50
37	HP80576-VK1-003 In stock	Anti Scalp Roller	£13.20 £11.00
38	HP80667-VK1-A10 In stock	Chuter Guide	Was £46.00 £38.33 Special Price £32.66 £27.22
39	HP80663-VK1-013 Available to backorder	Deck Shell	£2,248.80 £1,874.00
40	HP80665-VK1-003 Available to backorder	Mower Housing	£517.62 £431.35
42	HP76310-VK1-306 Available to backorder	Chute Assy	£100.80 £84.00
43	HP80682-VK1-003 Available to backorder	Screw	£3.06 £2.55
