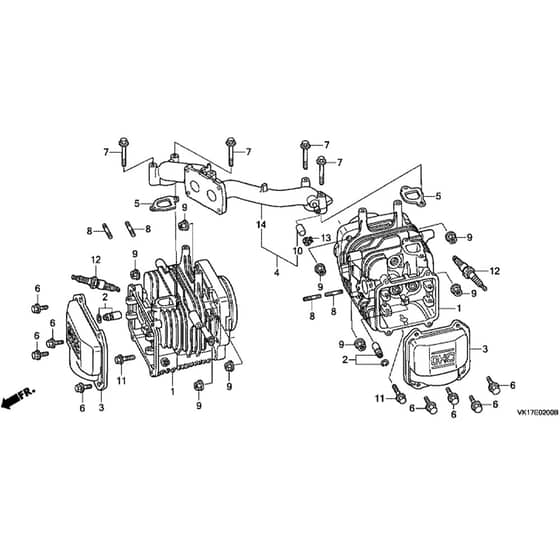

Honda HF2417K1-HTE - Cylinder Diagram

Description

Honda HF2417K1-HTE Ride On Mower Parts Diagram

	Part No.	Details
1	HP12100-Z0A-407 Available to backorder		£267.96 £223.30
2	HP12209-422-005 Available to backorder	Vaalve Stem Seal	£17.40 £14.50
3	HP12311-Z0A-000 Available to backorder	Rocker Cover	£20.68 £17.23
4	HP17100-Z0A-000 Available to backorder	Intake Manifold Assy	£217.80 £181.50
5	HP17151-Z0A-000 In stock	Manifold Gasket	£7.66 £6.38
6	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£5.42 £4.52
7	HP90016-ZE8-000 Available to backorder	Flange Bolt	£3.22 £2.68
8	HP90045-892-000 Available to backorder	Exhaust Stud	£6.01 £5.01
9	HP90201-Z0A-000 Available to backorder	Nut	£2.62 £2.18
10	HP90634-ZL8-H00 Available to backorder	Sealing Cap	£4.96 £4.13
11	HP95701-06030-00 Available to backorder		£1.68 £1.40
12	HP98079-55855 Available to backorder	Spark Plug	£5.12 £4.27
12	2135 In stock	Spark Plug	£2.30 £1.92
12	7230 In stock	Spark Plug	£3.59 £2.99
13	HP95002-40850-08 Available to backorder		£2.14 £1.78
14	HP17101-Z0A-000 Available to backorder	Intake Manifold	£243.48 £202.90
