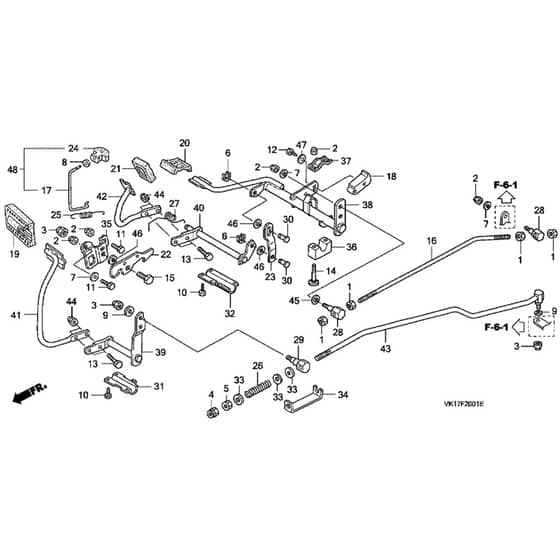

Honda HF2417-HTEA - Lever Diagram

Name: Honda HF2417-HTEA - Lever Diagram
SKU: hf2417_htea_lever-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Honda HF2417-HTEA Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
3	HP80104-VK1-003 Available to backorder	Nut	£0.92 £0.77
4	HP80011-Y09-003 Available to backorder	Nut M10	£1.08 £0.90
5	HP80017-Y09-003 Available to backorder	Nut	£2.71 £2.26
6	HP80023-Y09-003 In stock	Plate	£2.76 £2.30
7	HP80027-Y09-003 Available to backorder	Washer	£4.42 £3.68
8	HP80033-Y09-003 Available to backorder	Washer	£3.90 £3.25
10	HP80074-Y09-003 Available to backorder	Screw	£4.87 £4.06
11	HP80093-Y09-003 Available to backorder	Screw	£2.81 £2.34
12	HP80601-VK1-003 Available to backorder	Screw	£4.02 £3.35
12	HP90101-VP6-003 Available to backorder	Self Tapping Screw 4.8 X 19	£4.36 £3.63
13	HP80146-VK1-003 Available to backorder	Bolt 8 X 25	£1.69 £1.41
14	HP80153-VK1-003 Available to backorder	Special Screw 6 X 40	£2.81 £2.34
15	HP80208-VK1-003 Available to backorder	Special Screw 8 X 20	£4.87 £4.06
16	HP80217-VK1-003 Available to backorder	Rod	£27.71 £23.09
17	HP80224-VK1-013 Available to backorder	Rod	£21.05 £17.54
18	HP80233-VK1-003 Available to backorder	Cam	£4.06 £3.38
19	HP80257-VK1-003 Available to backorder	Pedal Rubber	£12.80 £10.67
20	HP80258-VK1-003 Available to backorder	Pedal Rubber	£12.80 £10.67
21	HP80259-VK1-003 Available to backorder	Pedal Rubber	£10.24 £8.53
22	HP80282-VK1-003 Available to backorder	Hook	£4.50 £3.75
23	HP80296-VK1-003 Available to backorder	Shift Lever	£4.98 £4.15
24	HP80305-VK1-013 Available to backorder	Knob	£3.60 £3.00
25	HP80318-VK1-003 Available to backorder	Spring	£2.89 £2.41
26	HP80322-VK1-003 Available to backorder	Spring	£2.72 £2.27
27	HP80327-VK1-003 Available to backorder	Spring	£4.36 £3.63
28	HP80344-VK1-003 Available to backorder	Pin	£5.72 £4.77
29	HP80623-VK1-003 Available to backorder	Pin	£10.07 £8.39
30	HP80360-VK1-003 Available to backorder	Pin	£3.52 £2.93
31	HP80363-VK1-003 Available to backorder	Plate	£10.74 £8.95
32	HP80366-VK1-003 Available to backorder	Plate	£7.60 £6.33
33	HP80402-VK1-003 Available to backorder	Plain Washer 10Mm	£1.66 £1.38
34	HP80425-VK1-003 Available to backorder	Clamp	£3.78 £3.15
35	HP80428-VK1-003 Available to backorder	Support	£5.52 £4.60
36	HP80441-VK1-003 Available to backorder	Support	£7.54 £6.28
37	HP80469-VK1-003 Available to backorder	Plate	£2.11 £1.76
38	HP80509-VK1-013 Available to backorder	Pedal	£58.42 £48.68
39	HP80510-VK1-003 Available to backorder	Rod	£43.28 £36.07
40	HP80511-VK1-003 Available to backorder	Rod	£43.28 £36.07
41	HP80557-VK1-003 Available to backorder	Pedal	£72.10 £60.08
42	HP80559-VK1-003 Available to backorder	Pedal	£49.09 £40.91
43	HP80612-VK1-003 Available to backorder	Brake Rod	£42.60 £35.50
44	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
45	HP80029-Y09-003 Available to backorder	Washer	£3.96 £3.30
46	HP80267-Y09-003 Available to backorder	Washer	£3.40 £2.83
47	HP80026-Y09-003 Available to backorder	Washer	£4.42 £3.68
48	HP04403-VK1-305 Available to backorder	Parking Brake Knob	£22.50 £18.75
