Honda HF2417-HTEA - Grass Bag Diagram

Part No. hf2417_htea_grass_bag-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2417-HTEA - Grass Bag Diagram

Honda HF2417-HTEA - Grass Bag Diagram

Description

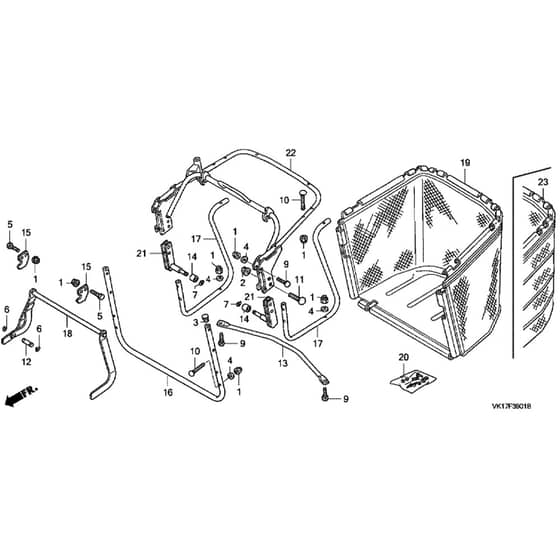

Honda HF2417-HTEA Ride On Mower Parts Diagram

Ref.		Img.	Part No.	Details
	1		HP80008-Y09-003 Available to backorder	Nut		£4.26 £3.55
	2		HP80016-Y09-003 In stock	Nut		£9.25 £7.71
	3		HP80023-VF4-003 Available to backorder	Cap		£2.04 £1.70
	4		HP80027-Y09-003 Available to backorder	Washer		£4.36 £3.63
	5		HP80603-VK1-003 Available to backorder	Screw		£2.76 £2.30
	6		HP80102-VK1-003 Available to backorder	Snap Ring		£0.61 £0.51
	7		HP80103-VK1-003 Available to backorder	Snap Ring		£0.79 £0.66
	10		HP80153-VK1-003 Available to backorder	Special Screw 6 X 40		£2.76 £2.30
	11		HP80152-VK1-003 Available to backorder	Screw		£0.90 £0.75
	12		HP80359-VK1-003 Available to backorder	Pin		£3.11 £2.59
	13		HP80401-VK1-003 Available to backorder	Frame Stiffener		£24.56 £20.47
	14		HP80404-VK1-003 In stock	Bush		£14.69 £12.24
	15		HP80431-VK1-003 Available to backorder	Plate		£4.66 £3.88
	16		HP80450-VK1-003 Available to backorder	Front Frame		£63.12 £52.60
	17		HP80451-VK1-003 Available to backorder	Side Frame		£63.12 £52.60
	18		HP80513-VK1-013 Available to backorder	Rod		£124.80 £104.00
	19		HP80536-VK1-003 Available to backorder	Grass Bag		£169.32 £141.10
	20		HP80540-VK1-003 Available to backorder	Grass Bag Screw Set		£65.52 £54.60
	21		HP80590-VK1-003 Available to backorder	Support		£44.46 £37.05
	22		HP80593-VK1-003 Available to backorder			£216.36 £180.30
