Honda HF2417-HTEA - Cutting Housing Diagram

Description

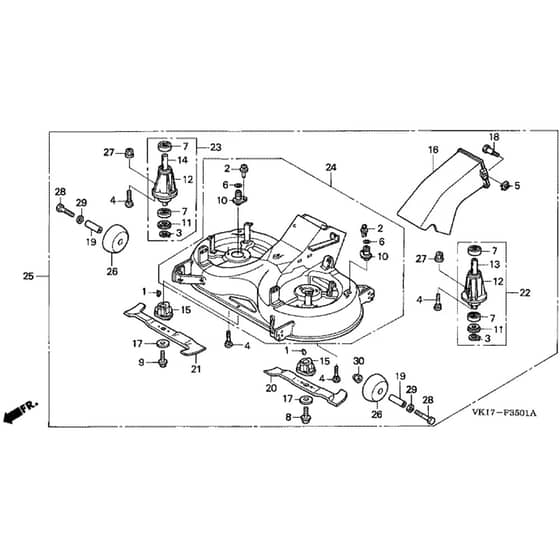

Honda HF2417-HTEA Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80003-Y09-003 In stock	Key	£10.48 £8.73
2	HP80025-Y09-003 Available to backorder	Rivet	£1.97 £1.64
3	HP80052-Y09-003 Available to backorder	External Circlip	£1.78 £1.48
4	HP80103-Y09-003 Available to backorder	Screw	£1.32 £1.10
5	HP80107-VK1-003 Available to backorder	Special Nut 8Mm	£0.96 £0.80
6	HP80133-Y09-003 Available to backorder	O Ring	£5.59 £4.66
7	HP80134-Y09-003 Available to backorder	Bearing	£28.36 £23.63
8	HP80138-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 D	£1.68 £1.40
9	HP80139-VK1-003 In stock	Flange Bolt 3/8 X 1-1/2 S	£1.72 £1.43
10	HP80166-Y09-003 Available to backorder	Water Hose Connector	£1.38 £1.15
11	HP80197-Y09-003 Available to backorder	Dust Cover	£3.29 £2.74
12	HP80199-Y09-003 Available to backorder	Flange	£59.40 £49.50
13	HP80212-VK1-003 Available to backorder	Blade Shaft	£63.60 £53.00
14	HP80213-VK1-003 Available to backorder	Blade Shaft	£70.00 £58.33
15	HP80225-Y09-003 In stock	Blade Hub	£14.98 £12.48
16	HP80245-VK1-013 Available to backorder	Chute Assy	£139.32 £116.10
17	HP80279-VK1-003 In stock	Dust Cover	£7.34 £6.12
18	HP80342-VK1-003 Available to backorder	Special Screw 8Mm	£8.14 £6.78
19	HP80355-VK1-003 Available to backorder	Spacer	£4.62 £3.85
20	HP80515-VK1-003 Available to backorder	Blade L H	£30.97 £25.81
21	HP80516-VK1-003 In stock	Blade R H	£30.97 £25.81
22	HP80542-VK1-003 Available to backorder	Bearing Housing L H	£156.24 £130.20
23	HP80543-VK1-003 Available to backorder	Bearing Housing R H	£143.40 £119.50
24	HP80567-VK1-013 Available to backorder	Mower Housing	£537.12 £447.60
25	HP80569-VK1-013 Available to backorder	Cutter Housing Assy	£2,713.99 £2,261.66
26	HP80576-VK1-003 In stock	Anti Scalp Roller	£12.32 £10.27
27	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
28	HP80063-Y09-003 Available to backorder	Screw	£2.94 £2.45
29	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
30	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
