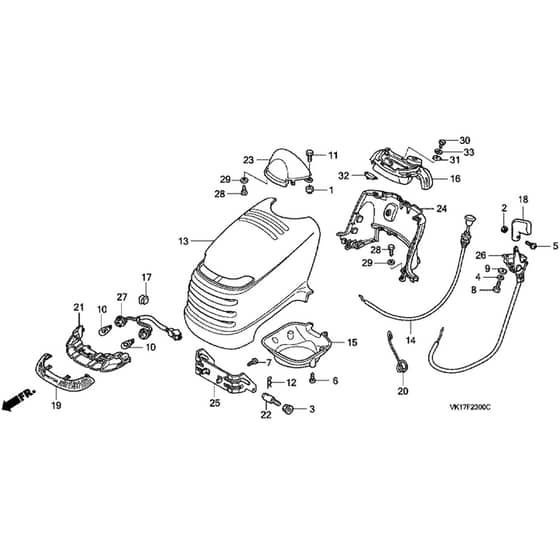

Honda HF2417-HMEA - Hood Diagram

Name: Honda HF2417-HMEA - Hood Diagram
SKU: hf2417_hmea_hood-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Honda HF2417-HMEA Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80001-VF4-003 Available to backorder	Nut	£1.32 £1.10
1	HP80001-VJ5-003 Available to backorder	Lock Nut 5Mm	£0.74 £0.62
2	HP80012-Y09-003 Available to backorder	Nut	£0.48 £0.40
3	HP80016-Y09-003 Available to backorder	Nut	£8.22 £6.85
4	HP80043-Y09-003 Available to backorder	Grower.	£3.37 £2.81
5	HP80067-Y09-003 Available to backorder	Screw	£5.12 £4.27
6	HP90101-VP6-003 Available to backorder	Self Tapping Screw 4.8 X 19	£4.36 £3.63
8	HP80089-Y09-003 Available to backorder	Screw	£5.12 £4.27
9	HP80109-VK1-003 Available to backorder	Plain Washer 4Mm	£6.08 £5.07
10	HP80127-Y09-003 Available to backorder	Lamp For Lights	£6.30 £5.25
11	HP80128-VK1-003 Available to backorder	Socket Head Bolt 5 X 20	£0.48 £0.40
12	HP80211-VK1-003 Available to backorder	Lock Pin 12Mm	£0.80 £0.67
13	HP80243-VK1-003 Available to backorder	Hood	£225.00 £187.50
14	HP80244-VK1-003 In stock	Choke Cable	£19.99 £16.66
15	HP80248-VK1-003 Available to backorder	Air Guide	£11.88 £9.90
16	HP80625-VK1-003 Available to backorder	Instrument Panel	£50.34 £41.95
17	HP80300-Y09-003 Available to backorder	Clamp	£2.17 £1.81
18	HP80301-VK1-003 Available to backorder	Handle	£6.36 £5.30
19	HP80308-VK1-003 Available to backorder	Headlight Lens	£34.66 £28.88
20	HP80651-VK1-003 Available to backorder	Spring	£4.68 £3.90
20	HP80323-VK1-003 Available to backorder	Spring	£3.65 £3.04
21	HP80332-VK1-003 Available to backorder	Headlight Unit	£27.88 £23.23
22	HP80624-VK1-003 Available to backorder	Pin	£3.84 £3.20
23	HP80379-VK1-003 Available to backorder	Circuit Protector	£15.05 £12.54
24	HP61401-VK1-F01 Available to backorder	Column Cover	£85.08 £70.90
25	HP80443-VK1-003 Available to backorder	Clamp	£20.99 £17.49
26	HP17910-VK1-E11 Available to backorder	Throttle Cable	£49.58 £41.32
27	HP80528-VK1-003 Available to backorder	Headlight Sub Harness	£26.68 £22.23
28	HP80602-VK1-003 Available to backorder	Screw	£4.02 £3.35
29	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
30	HP80083-Y09-003 Available to backorder	Screw	£3.28 £2.73
30	HP80601-VK1-003 Available to backorder	Screw	£4.02 £3.35
31	HP80024-Y09-003 Available to backorder	Plate	£3.73 £3.11
32	HP80200-Y09-003 Available to backorder	Grommet	£0.94 £0.78
33	HP80027-Y09-003 Available to backorder	Washer	£4.42 £3.68
