Honda HF2417-HMEA - Front Axle Diagram

Part No. hf2417_hmea_front_axle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HF2417-HMEA - Front Axle Diagram

Honda HF2417-HMEA - Front Axle Diagram

Description

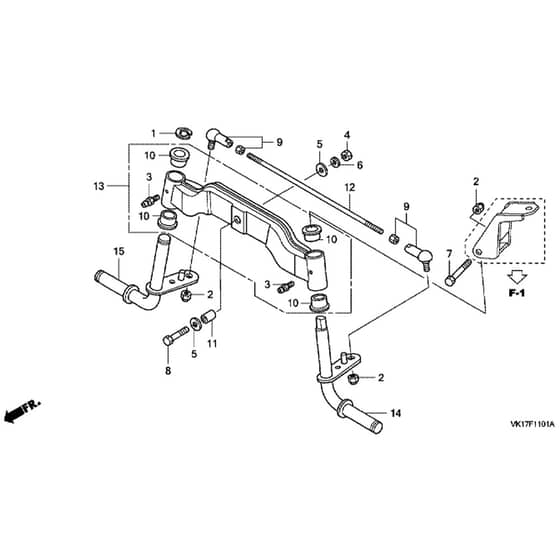

Honda HF2417-HMEA Ride On Mower Parts Diagram

Ref.		Img.	Part No.	Details
	1		HP80001-Y09-003 Available to backorder	Snap Ring		£2.36 £1.97
	2		HP80011-Y09-003 Available to backorder	Nut M10		£1.12 £0.93
	3		HP80020-Y09-003 Available to backorder	Grease Dispenser		£1.34 £1.12
	4		HP80106-VK1-003 Available to backorder	Hex Nut 16Mm		£1.69 £1.41
	5		HP80111-VK1-003 Available to backorder	Plain Washer 16Mm		£0.48 £0.40
	6		HP80118-VK1-003 Available to backorder	Special Washer		£1.45 £1.21
	7		HP80125-VK1-003 Available to backorder	Bolt		£2.68 £2.23
	8		HP80126-VK1-003 Available to backorder	Bolt 16 X 80		£4.87 £4.06
	9		HP80210-VK1-013 Available to backorder	Joint		£30.12 £25.10
	10		HP80227-VK1-003 Available to backorder	Bush		£3.88 £3.23
	11		HP80270-VK1-003 Available to backorder	Spacer		£4.88 £4.07
	12		HP80452-VK1-003 Available to backorder	Tie Rod		£21.97 £18.31
	13		HP80526-VK1-003 Available to backorder	Axle Assy Front R H		£210.72 £175.60
	14		HP80544-VK1-003 Available to backorder	Knuckle Assy L H		£70.08 £58.40
	15		HP80545-VK1-003 Available to backorder	Knuckle Assy R H		£87.36 £72.80
