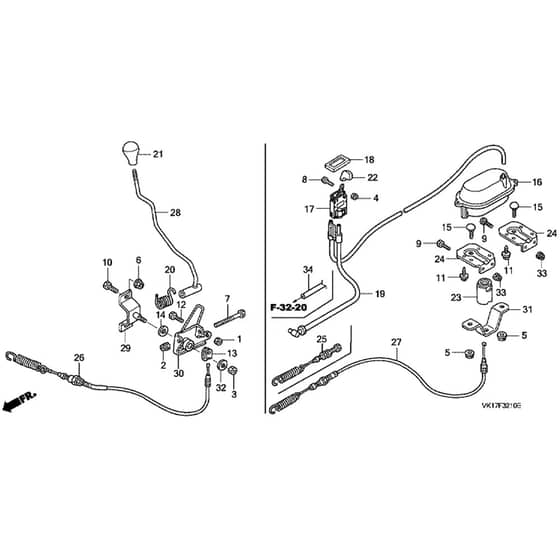

Honda HF2417-HME - Shift Lever, Clutch Switch Diagram

Description

Honda HF2417-HME Ride On Mower Parts Diagram

	Part No.	Details
4	HP80012-Y09-003 Available to backorder	Nut	£0.48 £0.40
11	HP80083-Y09-003 In stock	Special Screw	£3.40 £2.83
8	HP80067-Y09-003 Available to backorder	Screw	£5.05 £4.21
9	HP80142-VK1-003 Available to backorder	Bolt 6 X 18	£1.16 £0.97
15	HP80151-VK1-003 Available to backorder	Special Screw 6 X 16	£3.40 £2.83
16	HP80187-VK1-013 Available to backorder	Clutch Actuator	£158.52 £132.10
18	HP80189-VK1-003 Available to backorder	Cover	£6.25 £5.21
19	HP80190-VK1-003 Available to backorder	Connecting Tube	£72.84 £60.70
22	HP80307-VK1-003 Available to backorder	Knob	£5.52 £4.60
23	HP80383-VK1-003 Available to backorder	Guard	£6.20 £5.17
24	HP80433-VK1-003 Available to backorder	Clamp	£28.51 £23.76
27	HP80608-VK1-003 In stock	Cable	£51.38 £42.82
31	HP80429-VK1-003 Available to backorder	Clamp	£4.98 £4.15
33	HP80014-Y09-003 Available to backorder	Nut M6	£2.96 £2.47
34	HP80647-VK1-003 Available to backorder	Actuator Connecting Tube	£42.52 £35.43
