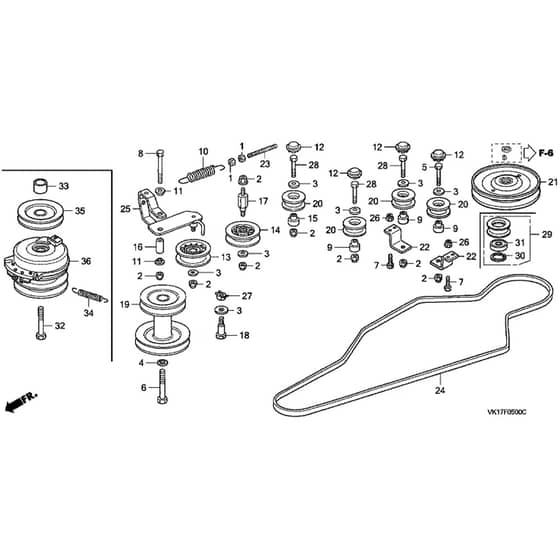

Honda HF2415-SBE - Mission Pulley Diagram

Description

Honda HF2415-SBE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP80104-VK1-003 Available to backorder	Nut	£0.92 £0.77
3	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
4	HP80042-Y09-003 Available to backorder	Washer	£3.40 £2.83
5	HP80060-Y09-003 Available to backorder	Screw	£5.12 £4.27
6	HP80088-Y09-003 Available to backorder	Screw	£5.12 £4.27
7	HP80142-VK1-003 Available to backorder	Bolt 6 X 18	£1.18 £0.98
8	HP80124-VK1-003 Available to backorder	Bolt 8 X 75	£1.25 £1.04
9	HP80196-Y09-003 Available to backorder	Spacer L H	£11.46 £9.55
10	HP80216-Y09-003 Available to backorder	Spring	£26.05 £21.71
11	HP80229-VK1-003 Available to backorder	Bush	£1.52 £1.27
12	HP80249-VK1-003 Available to backorder	Cover	£4.34 £3.62
13	HP80255-Y09-003 Available to backorder	Pulley	£57.60 £48.00
14	HP80256-Y09-003 Available to backorder	Pulley	£69.20 £57.67
15	HP80273-VK1-003 Available to backorder	Spacer	£14.41 £12.01
16	HP80275-VK1-003 Available to backorder	Spacer	£4.78 £3.98
17	HP80339-VK1-003 Available to backorder	Pin	£80.11 £66.76
18	HP80369-VK1-003 Available to backorder	Belt Guide	£6.08 £5.07
19	HP80392-VK1-003 Available to backorder	Pulley	£119.88 £99.90
21	HP80426-Y09-003 Available to backorder	Pulley	£143.28 £119.40
22	HP80434-VK1-003 Available to backorder	Clamp	£5.74 £4.78
23	HP80453-VK1-003 Available to backorder	Tie Rod	£3.44 £2.87
24	HP80478-VK1-003 Available to backorder	Belt	£85.04 £70.87
25	HP80551-VK1-003 Available to backorder	Shift Lever	£30.48 £25.40
26	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
27	HP80107-VK1-003 Available to backorder	Special Nut 8Mm	£0.96 £0.80
28	HP80058-Y09-003 Available to backorder	Screw	£2.81 £2.34
29	HP22520-VK1-003 In stock	Tension Roller	£28.92 £24.10
30	HP94520-32000 Available to backorder	Internal Circlip 32Mm	£2.22 £1.85
31	HP96150-6002010 Available to backorder	Bearing	£24.53 £20.44
