Honda HF2317-HME - Label, Tool Diagram

Description

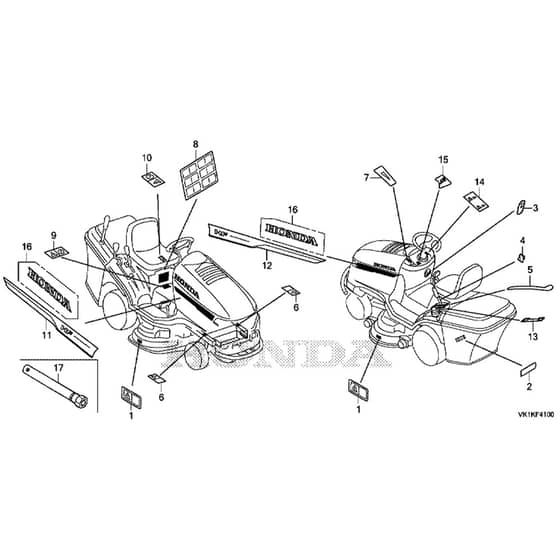

Honda HF2317-HME Ride On Mower Parts Diagram

	Part No.	Details
1	HP80105-Y09-003 Available to backorder	Decal	£3.96 £3.30
2	HP80156-VK1-013 Available to backorder	Label	£5.42 £4.52
3	HP80158-VK1-003 Available to backorder	Decal	£3.44 £2.87
4	HP80159-VK1-003 Available to backorder	Label	£1.84 £1.53
5	HP80162-VK1-003 Available to backorder	Decal	£4.73 £3.94
6	HP80717-VK1-003 Available to backorder	Hot Surface Label	£3.82 £3.18
7	HP87107-VK1-E81 Available to backorder	Throttle Operation Mark	£13.50 £11.25
8	HP87114-VK1-F00 Available to backorder	Decal	£18.90 £15.75
9	HP87115-VK1-F00 Available to backorder	Belt Warning Label	£22.72 £18.93
10	HP87116-VK1-F00 Available to backorder	Decal	£15.76 £13.13
11	HP87145-VK1-E71 Available to backorder	Label	£9.98 £8.32
12	HP87146-VK1-E71 Available to backorder	Label	£9.98 £8.32
14	HP87203-VK1-E81 Available to backorder	Clutch Operation Mark	£13.50 £11.25

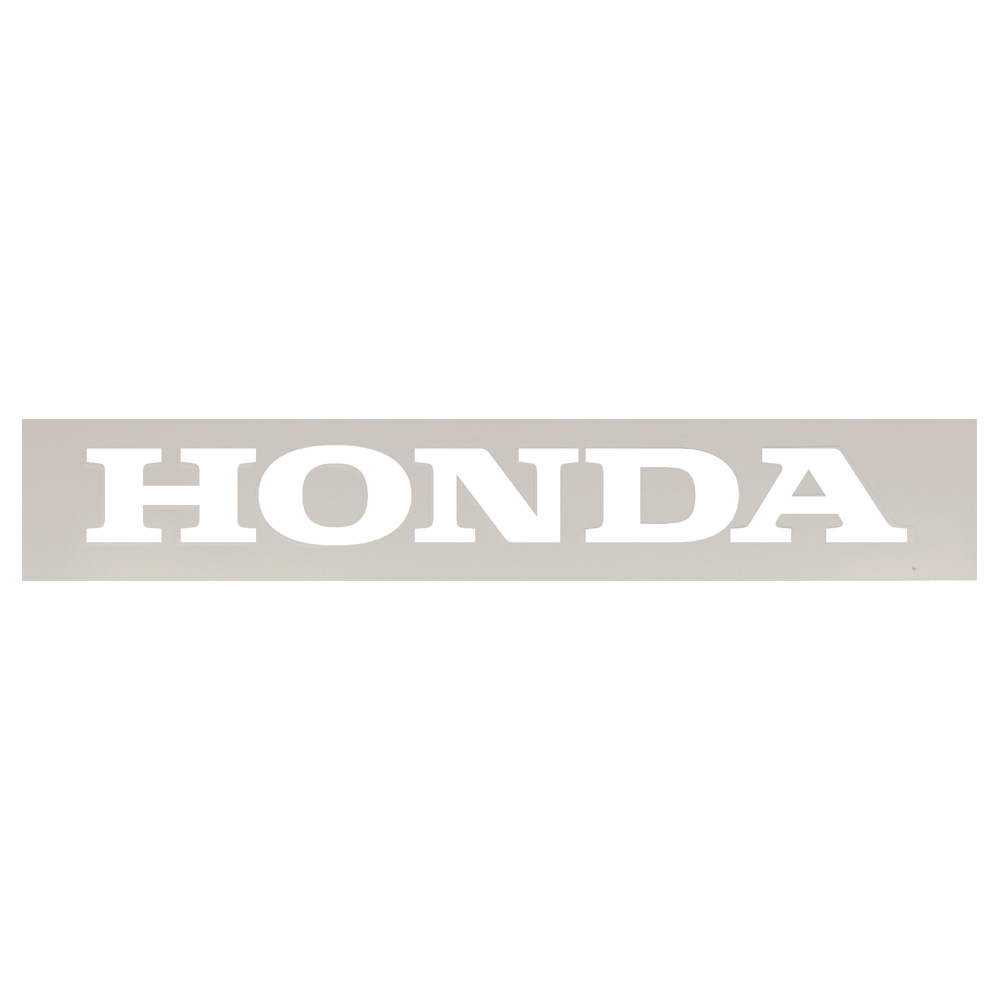

16	HP87531-VK1-E81 Available to backorder	Honda Mark	£4.76 £3.97
