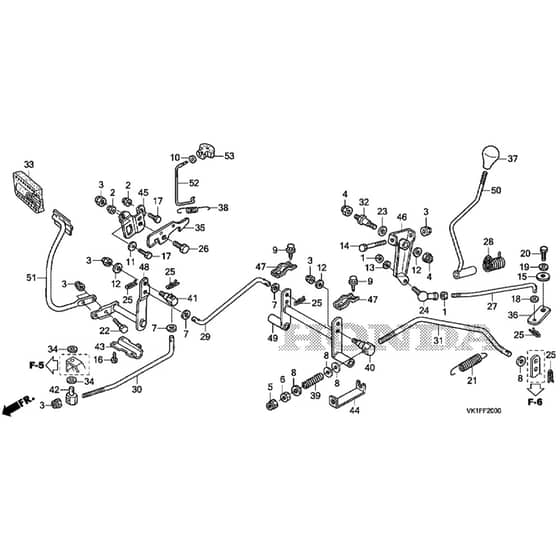

Honda HF2315K3-SBE - Lever Diagram

Name: Honda HF2315K3-SBE - Lever Diagram
SKU: hf2315k3_sbe_lever-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Honda HF2315K3-SBE Ride On Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
2	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
3	HP80104-VK1-003 Available to backorder	Nut	£0.92 £0.77
4	HP80010-Y09-003 Available to backorder	Nut	£3.53 £2.94
5	HP80011-Y09-003 Available to backorder	Nut M10	£1.08 £0.90
6	HP80017-Y09-003 Available to backorder	Nut	£2.71 £2.26
8	HP80029-Y09-003 Available to backorder	Washer	£3.96 £3.30
9	HP80029-Y10-003 Available to backorder	Screw	£1.25 £1.04
10	HP80033-Y09-003 Available to backorder	Washer	£3.90 £3.25
11	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
12	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
13	HP80045-Y09-003 Available to backorder	Washer	£1.55 £1.29
14	HP80063-Y09-003 Available to backorder	Screw	£2.94 £2.45
15	HP80066-Y10-003 Available to backorder	Washer	£1.22 £1.02
16	HP80074-Y09-003 Available to backorder	Screw	£4.87 £4.06
17	HP80093-Y09-003 Available to backorder	Screw	£2.81 £2.34
18	HP80110-VK1-003 Available to backorder	Plain Washer 7Mm	£2.11 £1.76
20	HP80135-VK1-003 Available to backorder	Bolt 6 X 16	£0.76 £0.63
21	HP80145-Y09-003 Available to backorder	Spring	£6.62 £5.52
22	HP80146-VK1-003 Available to backorder	Bolt 8 X 25	£1.69 £1.41
23	HP80149-Y09-003 Available to backorder	Washer	£5.11 £4.26
25	HP80211-VK1-003 Available to backorder	Lock Pin 12Mm	£0.80 £0.67
26	HP80208-VK1-003 Available to backorder	Special Screw 8 X 20	£4.87 £4.06
27	HP80219-VK1-003 Available to backorder	Rod	£11.04 £9.20
28	HP80219-Y09-003 Available to backorder	Spring	£9.62 £8.02
29	HP80220-VK1-003 Available to backorder	Rod	£15.65 £13.04
30	HP80221-VK1-003 Available to backorder	Rod	£17.80 £14.83
31	HP80222-VK1-003 Available to backorder	Rod	£22.90 £19.08
32	HP80232-Y09-003 Available to backorder	Pin	£8.69 £7.24
33	HP80257-VK1-003 Available to backorder	Pedal Rubber	£12.80 £10.67
34	HP80267-Y09-003 Available to backorder	Washer	£3.40 £2.83
35	HP80282-VK1-003 Available to backorder	Hook	£4.50 £3.75
36	HP80295-VK1-003 Available to backorder	Shift Lever	£5.39 £4.49
37	HP80304-VK1-003 Available to backorder	Knob	£3.44 £2.87
38	HP80318-VK1-003 Available to backorder	Spring	£2.89 £2.41
39	HP80322-VK1-003 Available to backorder	Spring	£2.72 £2.27
40	HP80348-VK1-003 Available to backorder	Pin	£6.73 £5.61
41	HP80349-VK1-003 Available to backorder	Pin	£6.73 £5.61
42	HP80350-VK1-003 Available to backorder	Pin	£13.45 £11.21
43	HP80363-VK1-003 Available to backorder	Plate	£10.74 £8.95
44	HP80425-VK1-003 Available to backorder	Clamp	£3.78 £3.15
45	HP80428-VK1-003 Available to backorder	Support	£5.52 £4.60
47	HP80469-VK1-003 Available to backorder	Plate	£2.11 £1.76
48	HP80510-VK1-003 Available to backorder	Rod	£43.28 £36.07
49	HP80512-VK1-003 Available to backorder	Rod	£33.46 £27.88
50	HP80554-VK1-003 Available to backorder	Shift Lever	£57.48 £47.90
52	HP80731-VK1-003 Available to backorder	Parking Brake Rod	£23.99 £19.99
53	HP80732-VK1-003 Available to backorder	Parking Brake Knob	£5.78 £4.82
